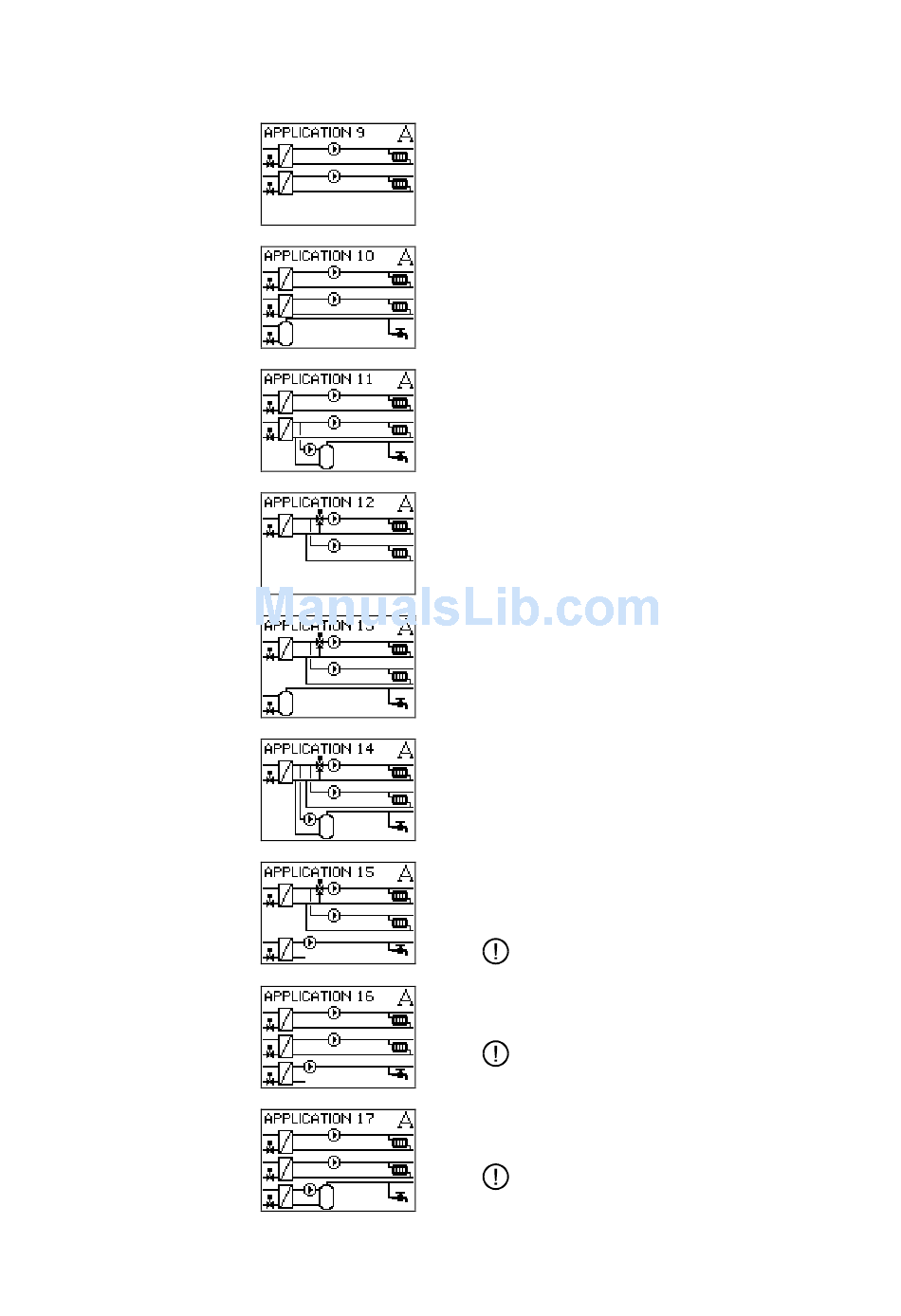

Two separate heat circuits.
Two separate heat circuits and a hot-water circuit with
direct control of storage tank.
One separate heat circuit. In addition to this, a common
primary heat exchanger supplying one heat circuit and
one hot-water circuit with indirect control.
Two heat circuits with common heat exchanger. One
heat circuit has a mixing valve.
Two interdependent heat circuits and a hot-water circuit
with direct control of storage tank.
Common primary heat exchanger for one heat circuit
with mixing valve, one heat circuit without and a hot-
water circuit with indirect control of storage tank.
Two heat circuits with common heat exchanger, where
one circuit has a mixing valve. Hot-water circuit with
indirect control via heat exchanger.
Note: This application requires ECL 2000 type 2.
Two separate heat circuits. Hot-water circuit with indi-
rect control via heat exchanger.
Note: This application requires ECL 2000 type 2.
Two separate heat circuits. Hot-water circuit with indi-
rect control of storage tank.
Note: This application requires ECL 2000 type 2.
