Installation Guide

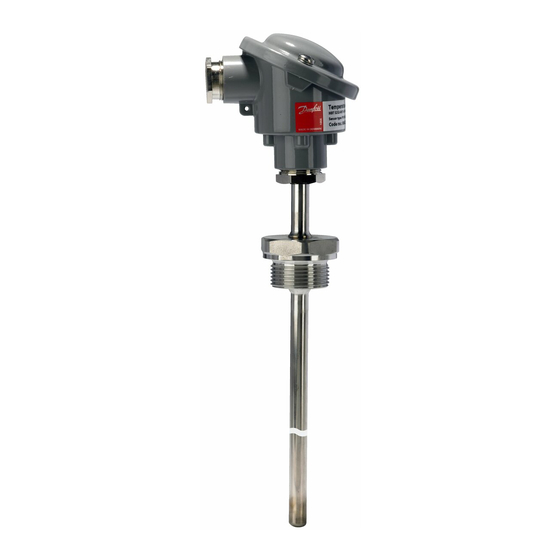

Temperature sensor
type MBT 5252
Identification
Code number
© Danfoss A/S (IA-MS/IM), 2013-10
084Z3101
084Z3102
084Z2185
IC.PI.P30.E4.02 - 520B5833

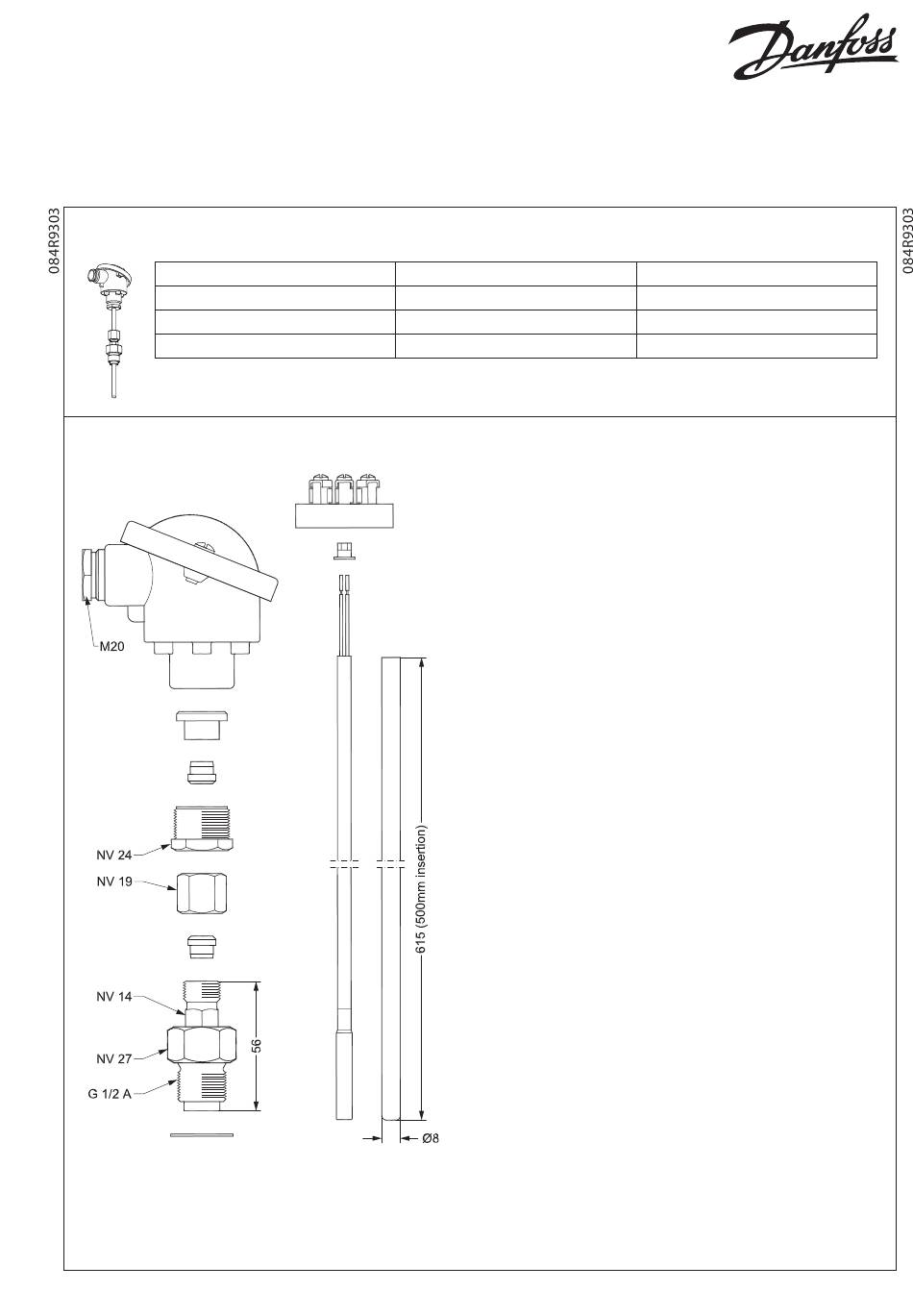

Elements
1 × Pt 100
2 × Pt 100
2 × Pt 1000
Pos. 1
Protection tube, AISI 316 Ti
Pos. 2
Measuring insert, Pt 100, Silicon cable,
max. 200 °C, 40 mm steel tube
Pos. 3
Type B-head, Silumin
Pos. 4
Process connection, Brass with spring
Pos. 5
Clamping ring, Brass
Pos. 6
Union nut, Brass
Pos. 7
Union, Brass
Pos. 8
Clamping ring, Brass
Pos. 9
Support plate, Brass
Pos. 10
Terminal block
Pos. 11
Bush, Brass
Pos. 12
Gasket, Copper
Specification code
0004-0500-4J00-0000
0104-0500-4J00-0000
0304-0500-4J00-0000
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Danfoss MBT 5252
Summary of Contents for Danfoss MBT 5252
-
Page 1: Temperature Sensor
Clamping ring, Brass Pos. 6 Union nut, Brass Pos. 7 Union, Brass Pos. 8 Clamping ring, Brass Pos. 9 Support plate, Brass Pos. 10 Terminal block Pos. 11 Bush, Brass Pos. 12 Gasket, Copper © Danfoss A/S (IA-MS/IM), 2013-10 IC.PI.P30.E4.02 - 520B5833... - Page 2 4. Mount pos. 4 losely in the gearbox terminal block 5. Mount and tighten the protection tube 10-12 Nm 084Z3101 Jumper 084Z3102 6. Tighten pos. 4 Jumper Red+black White White+black Jumper 7. Check the spring function IC.PI.P30.E4.02 - 520B5833 © Danfoss A/S (IA-MS/IM), 2013-10...
