ChapTer 3: ConfIGurInG
The relay ouTpuTs
The Sentinel Pro includes two relay outputs that can be used to control a light, siren, or other low
voltage device. The output can be configured to switch either manually or automatically when a zone
changes state or exceeds the alarm limits. To program the output click Output from the Device Details or
Configure Device screen. The following configuration page will appear:
Enter a Name so that you'll know what the Output will be controlling. The Output can operate in
Manual mode or Automatic mode. In manual mode you can turn the relay ON or OFF through the web
page or the mobile App. To manually switch the relay output, click in the State field and select either ON
or OFF, then click Save Changes. The change request will be sent to the Sentinel and the Current Value
will update after the output change has successfully completed.
In Automatic mode the relay can be programmed to turn-on automatically when certain conditions are
met. Listed below is a description of the parameters that apply to the automatic modes.
Input Selection - Next to the Automatic mode selection box is another drop-down that allows you to
select which zones will control the output. There are four options (Zone List, Type List, All Inputs, and
Limit: Zones).
Zone List: This option allows you to individually select which zones will cause the output to
switch. Check the boxes next to the desired zones.
Type List: This option allows you select zones based on the zone Type. For example, you could
have all of the zones configured for Temperature control the output.
All Inputs: This option selects all of the inputs (zones).

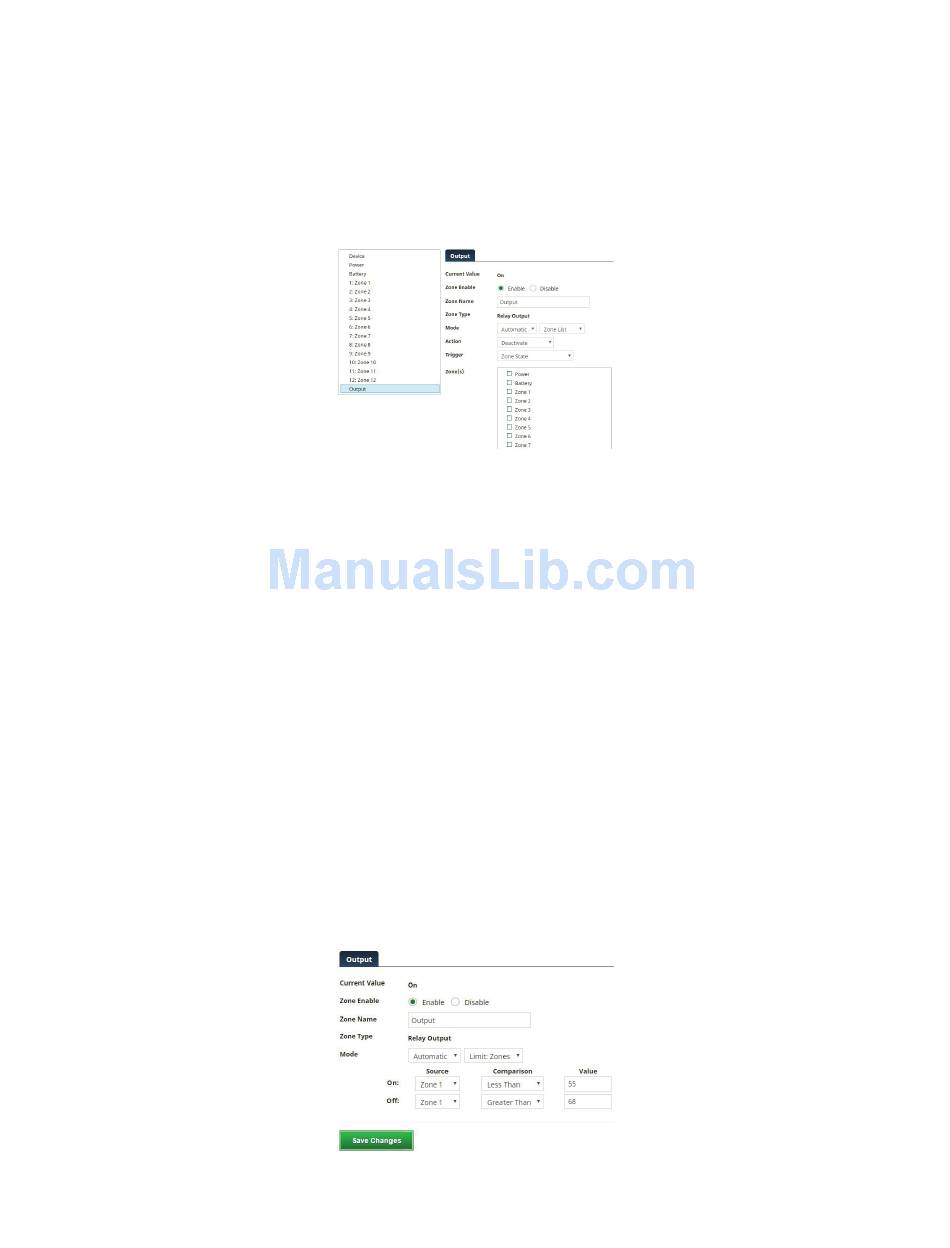

Limit: Zones: This option allows you to independently control the output based on the value of
one or two zones using greater-than, less-than, or equal-to comparison statements. A separate
Output-On and Output-Off instruction can be configured with its own comparison value. See
sample below:
