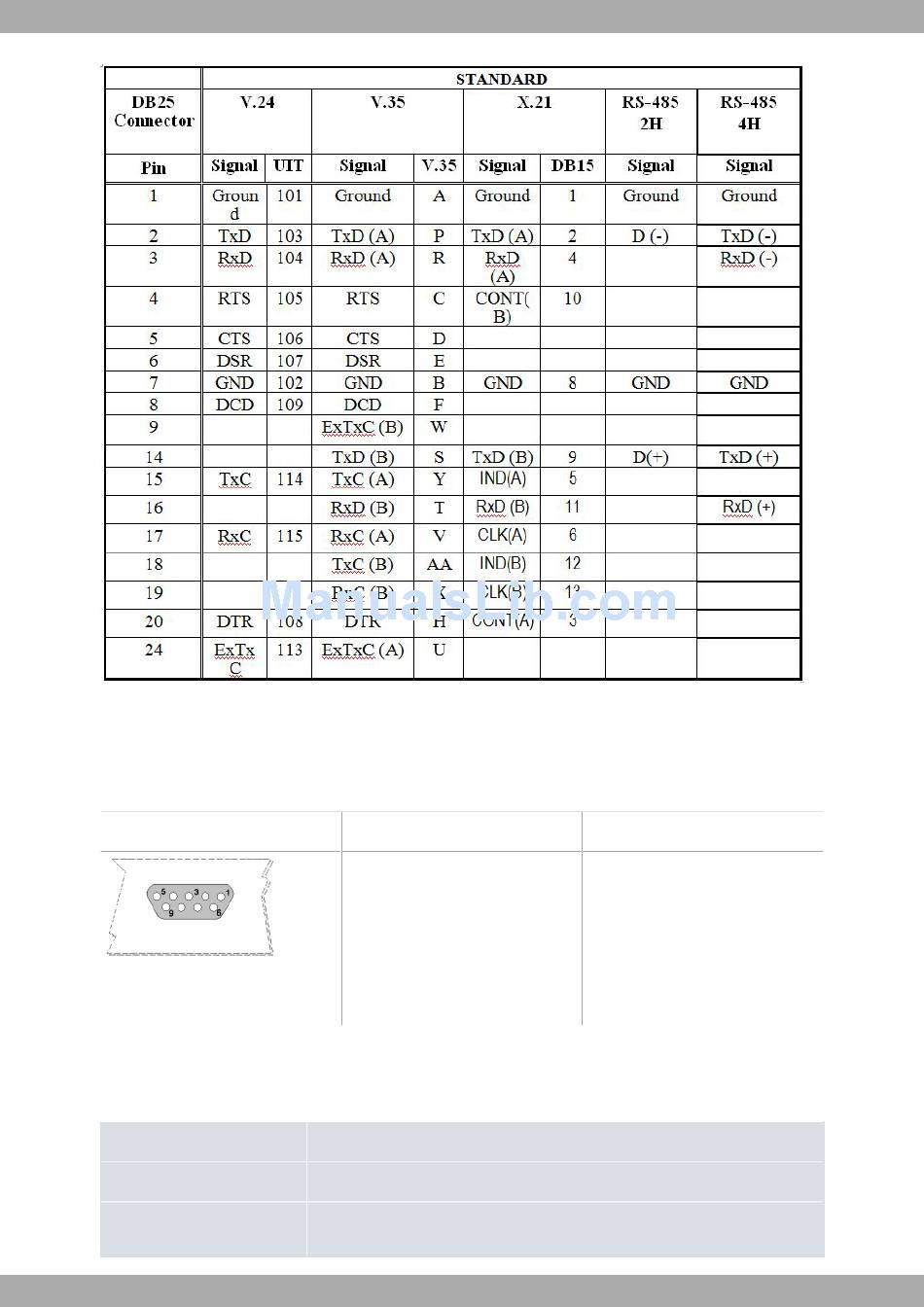

4.4.3 AUX port connections

This port is used to locally configure and monitor the device. It allows an asynchronous terminal operating at 9.600
bps with no parity and with one stop bit (9600 8N1) to be connected. It is a female DB9 connector that acts as DCE,
thus allowing pin-to-pin connection with a PC asynchronous port or terminal.
DB9

4.5 Technical specifications

Hardware architecture
PROCESSORS
MEMORY
STORAGE UNIT
20
DB9 PIN
3
2
5
7-8
1-4-6
Motorola MPC8260, at 300 MHz,
128 SDRAM Mbytes
FLASH Memory, 8 or 16 Mbytes depending on version
Signal
TXD
RXD
GND
Joined Pins
Joined Pins
