Appendix A — Specifications

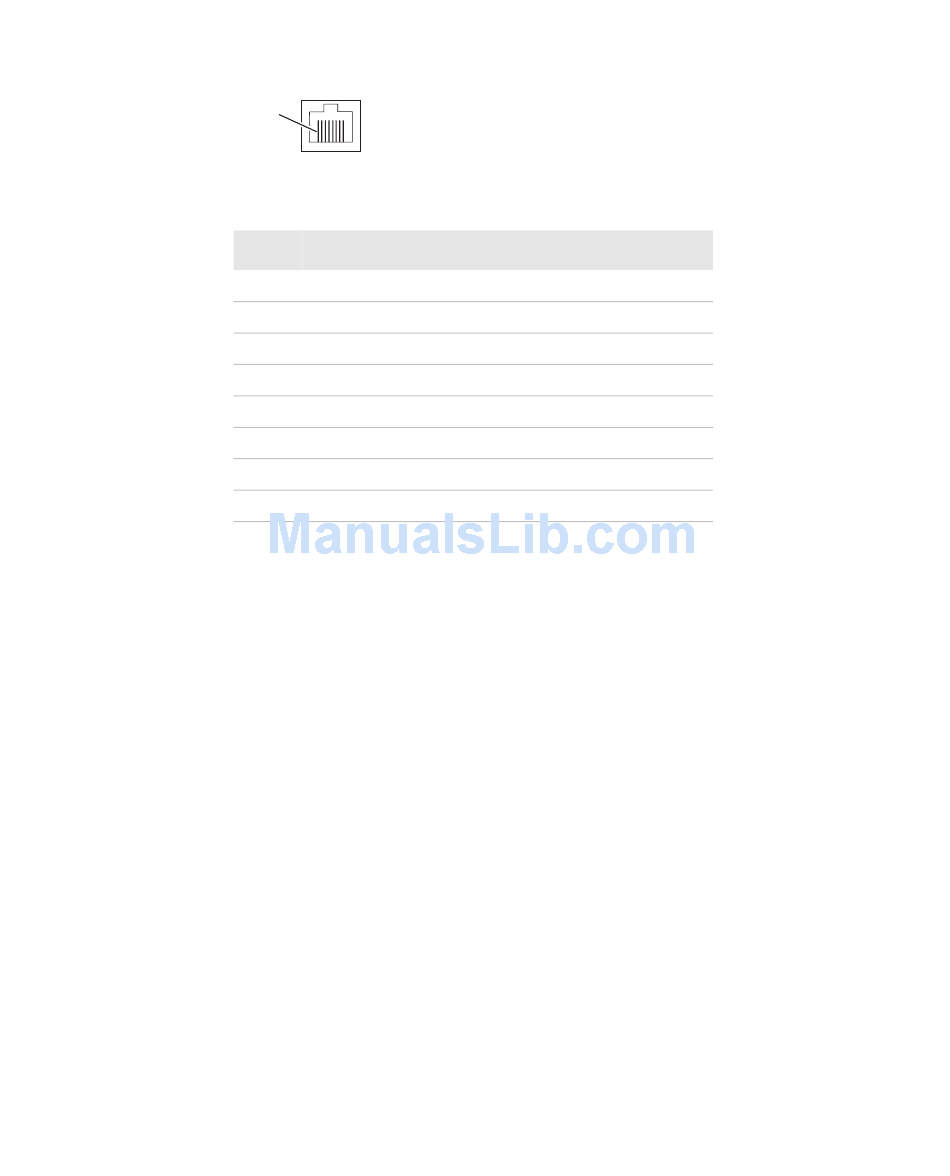

Ethernet Port
86
Pin 1
Ethernet Port Pin Assignments
Pin
Description
1
Ethernet TX+/Spare POE return
2
Ethernet TX-/Spare POE return
3
Ethernet RX+/Spare POE 48 VDC
4
Not used/POE 48 VDC
5
Not used/POE 48 VDC
6
Ethernet RX-/Spare POE 48 VDC
7
Not used/POE return
8
Not used/POE return
