Using the Output Interfaces

IF2 Network Reader User's Manual
+12V
+Input
- Input
Ground

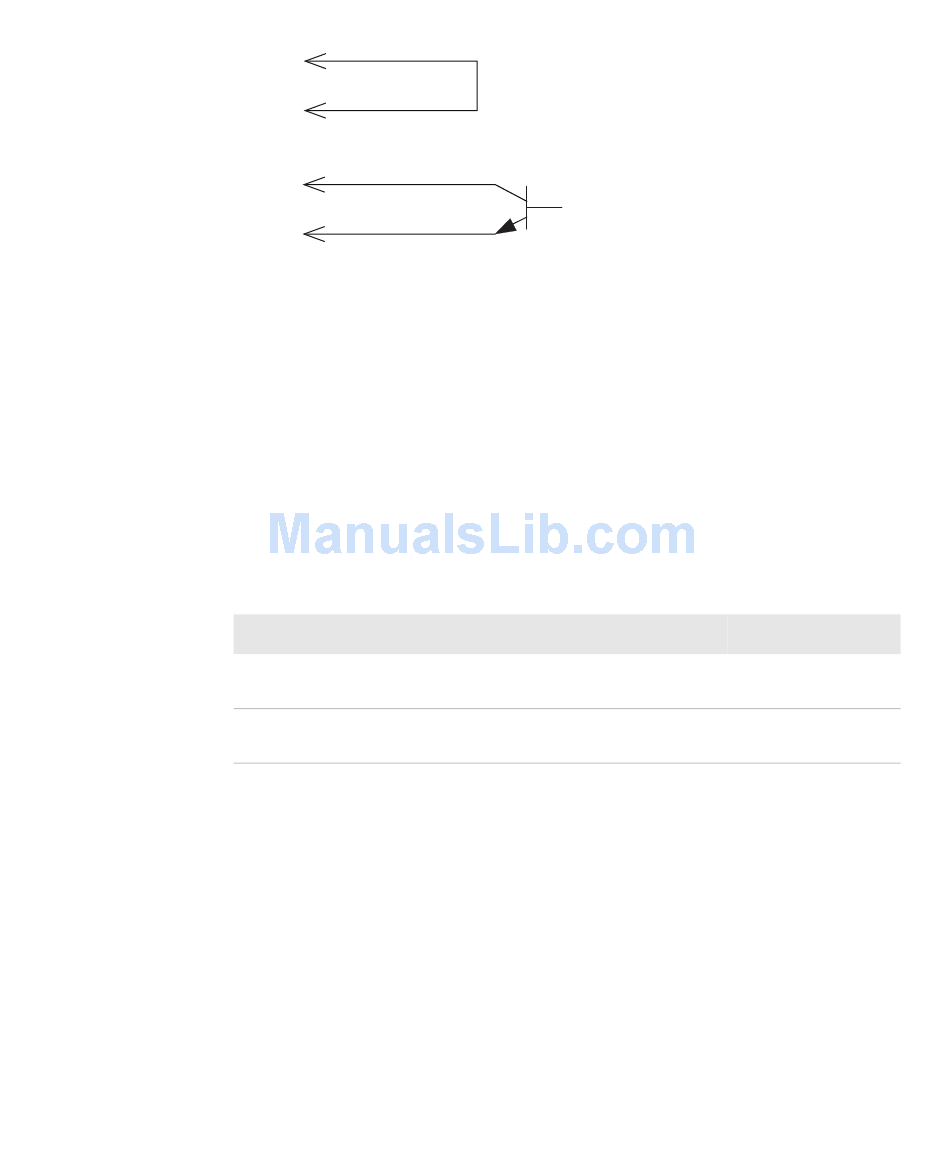

Open Collector Input Interface
Each IF2 output interface is optically isolated from the IF2, polarized,
and rated for 5 to 48 VDC at 0.25 A. All IF2 outputs include internal
thermal fuses that trip if the load exceeds 0.25 A, and the fuses are
self-recovering once the excessive load is removed. The high and low
contacts are exposed and isolated from ground. Transient
suppression limits output voltage spikes to 65 VDC.
GPIO Output Specifications
Signal Description
Leakage Switch output, high leakage
current (High) current
V (Low) Switch output on, saturation
sat
voltage with 0.25A load
Because the outputs are optically isolated, each one can be configured
to switch the high side or the low side of the load. You can power the
load directly from the IF2 or from an external power supply.
In a typical application, the outputs control indicator lamps that
signal good reads or errors. The basic methods for connecting
external devices to the GPIO outputs include:
Switching the high side, with the load powered by the IF2
•
• Switching the low side, with the load powered by the IF2
• Switching the high side, with the load powered externally
• Driving a DC relay that controls an AC load
Chapter 5 — Using the IF2 GPIO Interfaces
Min.
0 mA
0V
Typical Max.
1 mA 10 mA
1V 1.5V
