Understanding the LEDs

IF2 Network Reader User's Manual
The IF2 has six LEDs that indicate the status of the reader during
operation. Use the next table to identify the LED icons on the front
panel of the IF2.

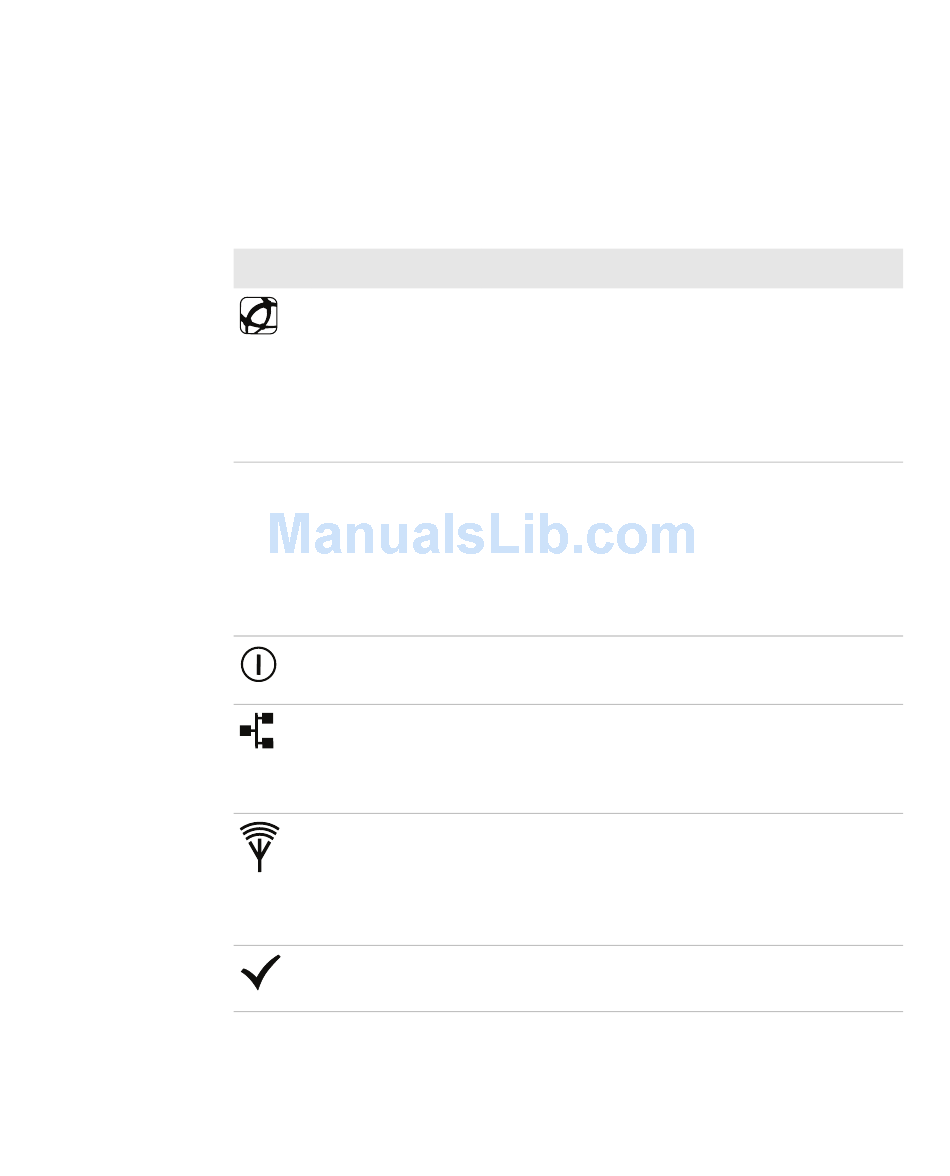

IF2 LED Descriptions
Icon Name
Intermec
Ready-to-Work™
indicator
Power Over
PoE
Ethernet
Power
Wired LAN
RFID status
Tag ID
Chapter 1 — Getting Started
Description
•
On when an application is communicating
with the IF2 BRI server or an LLRP client has
connected.
•
Blinks when no application is
communicating with the IF2. For more
information, see "About the Intermec
Ready-to-Work Indicator" on page
•
Green if Power Over Ethernet (POE) is
enabled.
•
Red if a fault condition is detected. For
example, if the power converter for POE
does not provide enough power to the IF2,
the POE LED stays red indicating a fault
condition.
On when the IF2 has power.
•
Off when there is no Ethernet connectivity.
•
On when an Ethernet link is detected.
•
Flashes when there is activity on the
Ethernet network.
•
Green if RF power is being transmitted.
•
Red if an antenna fault is detected, or if the
reader cannot output the requested RF
power level.
•
Off if RF power is off.
Flashes when an RFID tag ID is successfully
read or written to.
4.
3
