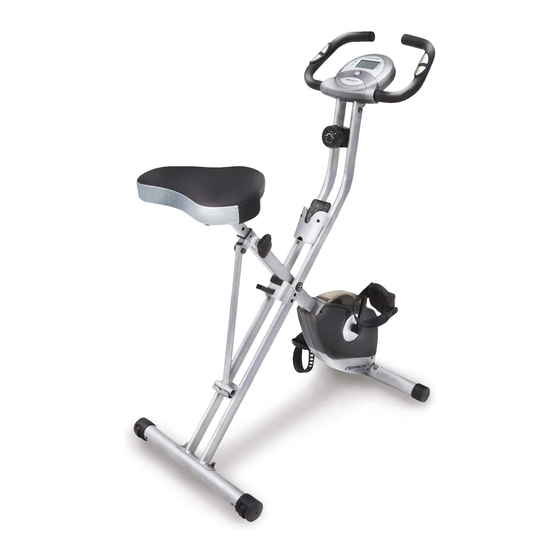

Folding Upright Bike with Pulse
IMPORTANT:
Read all instructions carefully before using this product. Retain this owner's manual for
future reference.
The specifications of this product may vary from this photo, subject to change without notice.
OWNER'S MANUAL
1200.10-041317

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1200 and is the answer not in the manual?

Questions and answers

Related Manuals for Exerpeutic 1200

Summary of Contents for Exerpeutic 1200

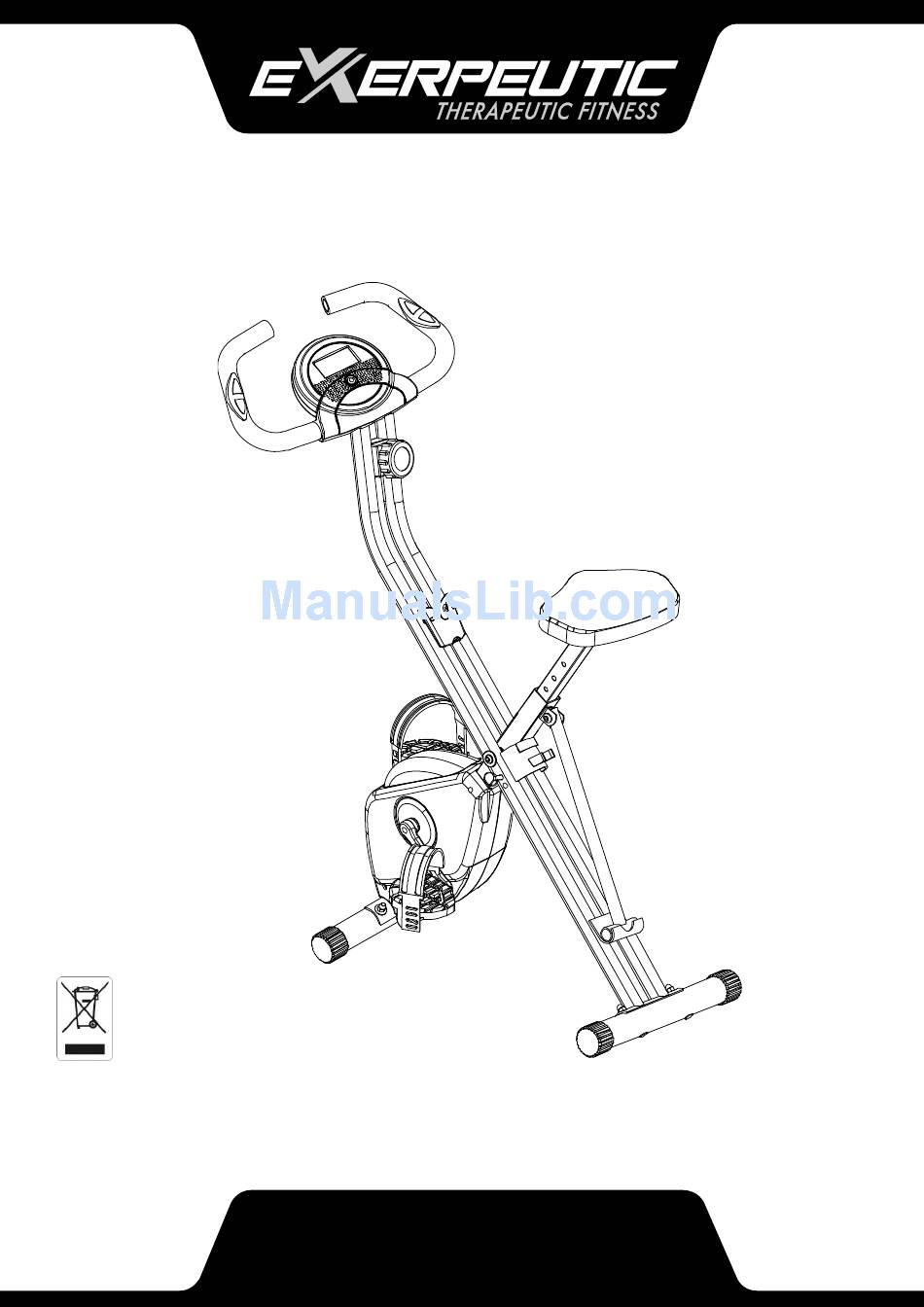

  • Page 1 Folding Upright Bike with Pulse IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice. OWNER’S MANUAL 1200.10-041317...
  • Page 2 PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. STOP. Contact customer service if you have any questions regarding assembly or proper operation of the machine. Email us at: Service@paradigmhw.com Or call us at: 1-844-641-7921 Hours: 8:00 am to 5:00 pm (PST) Daily...

  • Page 3: Table Of Contents

    TABLE OF CONTENT SERVICE --------------------------------------------------------------------------2 LABEL PLACEMENT ---------------------------------------------------------- 3 IMPORTANT SAFETY GUIDELINES -------------------------------------- 4 OVERVIEW DRAWING -------------------------------------------------------- 6 PARTS LIST ----------------------------------------------------------------------- 7 HARDWARE & TOOLS PACK ------------------------------------------------ 9 ASSEMBLY ------------------------------------------------------------------------ 10 CONSOLE -------------------------------------------------------------------------- 14 STORAGE -------------------------------------------------------------------------- 15 OPERATIONS & ADJUSTMENTS ------------------------------------------- 16 TRANSPORTATION ------------------------------------------------------------- 19 MAINTENANCE &...

  • Page 4: Service

    SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department (8:00 AM - 5:00 PM Pacific Standard Time, Daily) by the below methods: For The Best Service, please Email: service@paradigmhw.com Response Time: 1-2 Business Days Emailing us with the information above will be the best method to receive a response during...

  • Page 5: Label Placement

    LABEL PLACEMENT...

  • Page 6: Important Safety Guidelines

    IMPORTANT SAFETY GUIDELINES Read all instructions before using the Bike. When using our equipments, basic precautions should always be followed, including the following: WARNING - To reduce the risk of injury to persons: Make sure your equipment is correctly assembled before you use it. Be sure all screws, nuts, and bolts are tightened prior to use.
  • Page 7 IMPORTANT SAFETY GUIDELINES Do not use this equipment if you have any of the following conditions or ailments:  Pregnancy  Extreme obesity  Middle ear infection  Hiatus hernia or Ventral hernia  Glaucoma, retinal detachment or conjunctivitis  Use of anticoagulants including Aspirin in high doses.

  • Page 8: Overview Drawing

    OVERVIEW DRAWING...

  • Page 9: Parts List

    PARTS LIST Description Description Rear Frame 30 Curve Washer Ø8.2xØ22.2 Front Frame 31 Front Stabilizer Ø50x1.5tx550L Rear Stabilizer Ø50x1.5tx550L 32 C-ring Ø10 Handlebar Ø25 33 Flat Washer Ø8.2xØ16.8 Seat Post 34 Nylon Nut M8 Seat Cushion 35 Magnet Bracket Left Pedal (YH-30X) 36 Washer Ø6.2 Right Pedal (YH-30X) 37 Sensor with Wire...
  • Page 10 PARTS LIST Description Description 58 Hexagon Socket Bolt M8x15 75 Screw M5x15 59 Rubber Cushion 76 Hexagon Socket Bolt M8x40L 60 Washer Ø8.2x Ø25x2.0t 77 Handlebar End Cap Ø25.4 Front Frame Support Tube End 61 Flat Phillips Head Screw M6x10 Cap Ø22.2 62 Bottle Holder 79 Hand Pulse Sensor Wire...

  • Page 11: Hardware & Tools Pack

    HARDWARE & TOOLS PACK...

  • Page 12: Assembly

    ASSEMBLY TOOL 13-15mm Wrench STEP 1 1A Setting Up The Frames Of The Bike: Stand up the base of the Rear and Front Frames (1, 2) by pulling them apart from each other. Rest the Support Tube (67) into the hooked plate on the Rear Frame (1).
  • Page 13 ASSEMBLY TOOLS PREINSTALLED HARDWARE 19mm Wrench (86) Left Pedal Nut (87) Right Pedal Nut 13-15mm Wrench 1 PC 1 PC STEP 2 Tip: Only turn the pedals in the direction instructed. The left, right pedals and left, right pedal nuts will have different directions for installation. The Cranks, Pedals, Pedal Shafts, Pedal Nuts, and Pedal Straps are marked “R”...

  • Page 14: Hardware Pack

    ASSEMBLY TOOL 5mm Allen Wrench with Phillips Screwdriver STEP 3 Tip: The Seat Cushion (6) has 2 sets of adjustment holes. It is recommended that users between 5’1” – 5’6” use the holes towards the rear of the seat and users between 5’7” to 6’3” use the holes towards the front.
  • Page 15 ASSEMBLY TOOL 5mm Allen Wrench with Phillips Screwdriver STEP 4 4A Connecting The Sensor Wires: Connect the female Sensor Wire (15) from the Rear Frame (1) to the male wire from the Console (9). 4B Installing The Handlebars: Attach the Handlebar (4) onto the top of the Rear Frame (1) with four Hexagon Socket Bolts (73) and four Spring Washers (74).

  • Page 16: Console

    CONSOLE SPECIFICATIONS: TIME --------------------------------------- 0:00-99:59 MIN: SEC SPEED ------------------------------------ 0.0-999.9 ML/H DISTANCE ------------------------------- 0.0-999.9 ML CALORIE --------------------------------- 0.0-999.9 KCAL ODOMETER ----------------------------- 0.0-999.9 ML PULSE ------------------------------------ 40-240 BEATS/MIN CONSOLE FUNTIONS: AUTO ON/OFF: The console will automatically turn on when exercise is detected. If you leave the console idle for 4 minutes, the power will shut off automatically.

  • Page 17: Storage

    STORAGE For your convenience, the bike can be folded up for storage. Remove the Safety Pin (22) from the upper pin hole of the bike. Fold the Rear Frame (1) and the Front Frame (2) together until the lower pin holes are aligned.

  • Page 18: Operations & Adjustments

    OPERATIONS & ADJUSTMENTS Adjusting the Tension Control Knob ↻ To increase the tension, turn the Tension Control Knob (13) in a CLOCKWISE direction. To decrease the tension, turn the Tension Control Knob (13) in a COUNTERCLOCKWISE ↺ direction. Adjusting the Seat Height Turn the Seat Height Adjustment Knob (14) in a COUNTERCLOCKWISE direction until the Seat Post (5) can be slid up or down.
  • Page 19 OPERATIONS & ADJUSTMENTS Adjusting the Pedal Strap L mark The Left Pedal Strap (88) is marked with an L on the strap. See Figure 1 . Snap the three hole end onto the inside edge of the Left Pedal Strap (88) See Figure 2 & 3. Select one of the adjustment holes which allow your foot to be easily removed from the pedal.
  • Page 20 OPERATIONS & ADJUSTMENTS TOOL 5mm Allen Wrench with Phillips Screwdriver Seat Cushion Adjustment The Seat Cushion (6) can be adjusted for users of different heights. Adjust the Seat Cushion (6) to the B position for people whose height is between 5’1” to 5’6”. Assemble the Seat Cushion (6) and align the bolt holes on the underside of Seat Cushion (6) with the holes on top of the Seat Post (5).

  • Page 21: Transportation

    TRANSPORTATION Transporting the Bike Hold the Handlebar (4) and pull the machine until the Wheels on the Front Stabilizer (31) make contact with the floor. Push or pull the unit to the desired location, then gently lower the Rear Stabilizer (3) to the ground.

  • Page 22: Maintenance & Troubleshooting

    MAINTENANCE & TROUBLESHOOTING MAINTENANCE Cleaning The bike can be cleaned with a soft clean damp cloth. Do not use abrasives or solvents on the plastic parts. Wipe your perspiration off the bike after each use. Be careful not to get excessive moisture on the console display panel as this might cause an electrical hazard or electronics to fail.

  • Page 23: Warranty

    WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual.

  • Page 24: Parts Request Form

    PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO Service@paradigmhw.com NAME:_____________________________________________________________________________________ ADDRESS:__________________________________________________________________________________ CITY:________________________ STATE:_____________ ZIP:_______________________________________ TELEPHONE: (Day)________________________________________________________________________ (Night)_______________________________________________________________________ SERIAL#:___________________________________________________________________________________ MODEL#:___________________________________________________________________________________ PURCHASE DATE:___________________________________________________________________________ PLACE OF PURCHASE:_______________________________________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS” * This form can also be faxed in Fax #: 626-810-2166...
