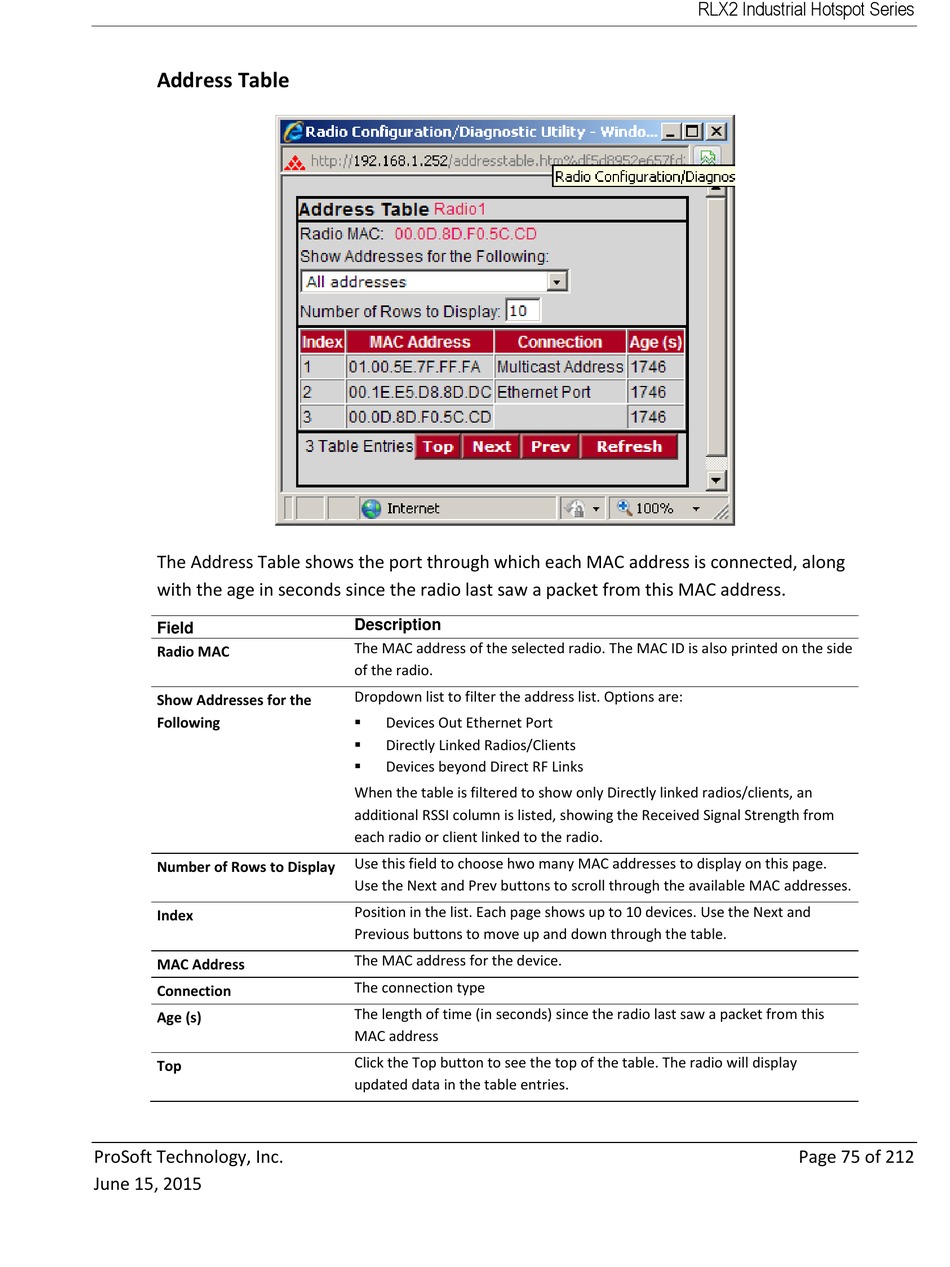

Address Table

The Address Table shows the port through which each MAC address is connected, along
with the age in seconds since the radio last saw a packet from this MAC address.
Field
Radio MAC
Show Addresses for the
Following
Number of Rows to Display
Index
MAC Address
Connection
Age (s)
Top
ProSoft Technology, Inc.
June 15, 2015
Description
The MAC address of the selected radio. The MAC ID is also printed on the side
of the radio.
Dropdown list to filter the address list. Options are:

Devices Out Ethernet Port

Directly Linked Radios/Clients

Devices beyond Direct RF Links
When the table is filtered to show only Directly linked radios/clients, an
additional RSSI column is listed, showing the Received Signal Strength from
each radio or client linked to the radio.
Use this field to choose hwo many MAC addresses to display on this page.
Use the Next and Prev buttons to scroll through the available MAC addresses.
Position in the list. Each page shows up to 10 devices. Use the Next and
Previous buttons to move up and down through the table.
The MAC address for the device.
The connection type
The length of time (in seconds) since the radio last saw a packet from this
MAC address
Click the Top button to see the top of the table. The radio will display
updated data in the table entries.
