RLX2 Industrial Hotspot Series

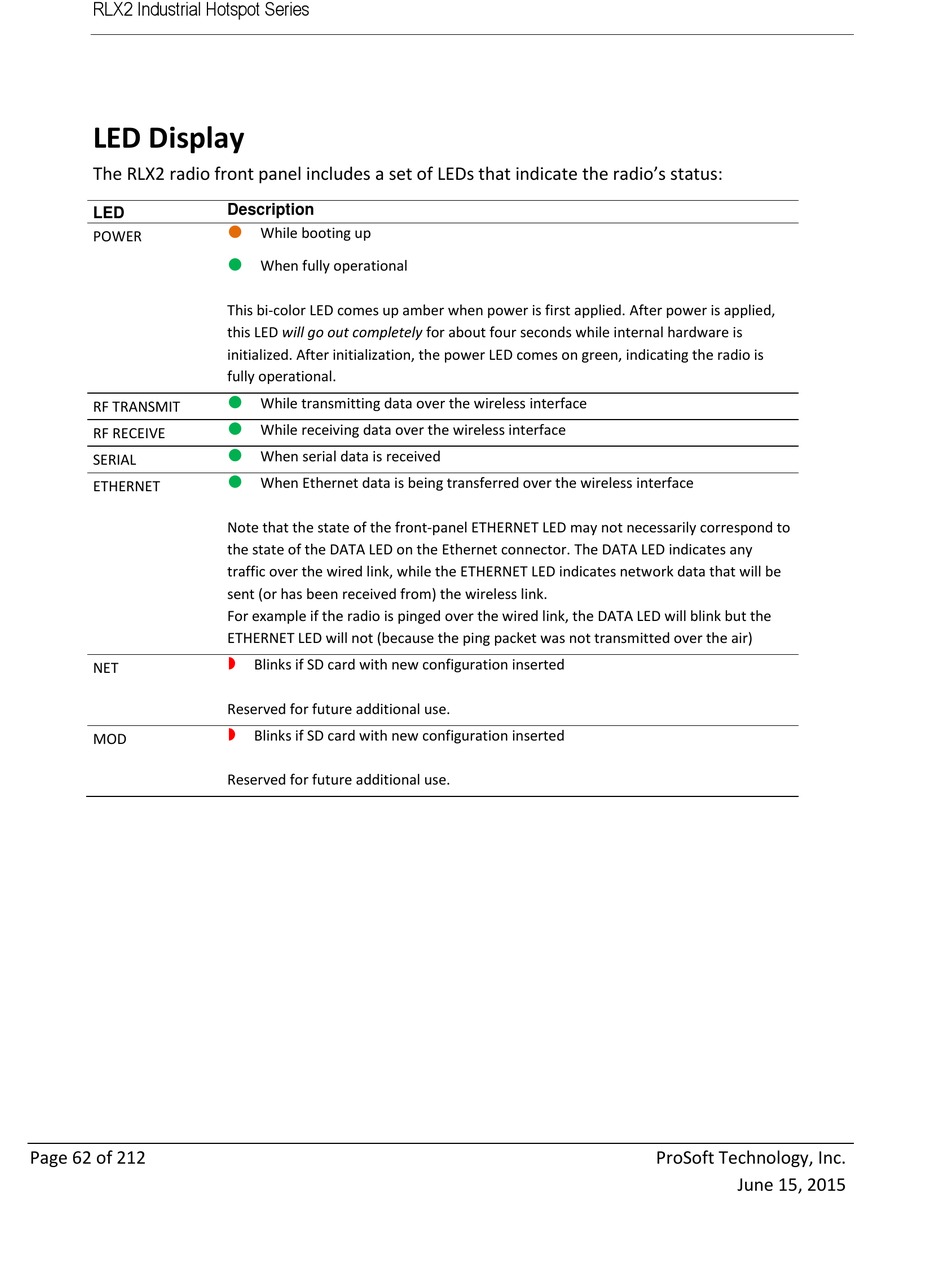

LED Display

The RLX2 radio front panel includes a set of LEDs that indicate the radio's status:
LED
POWER
RF TRANSMIT
RF RECEIVE
SERIAL
ETHERNET
NET
MOD
Page 62 of 212
Description

While booting up

When fully operational
This bi-color LED comes up amber when power is first applied. After power is applied,
this LED will go out completely for about four seconds while internal hardware is
initialized. After initialization, the power LED comes on green, indicating the radio is
fully operational.

While transmitting data over the wireless interface

While receiving data over the wireless interface

When serial data is received

When Ethernet data is being transferred over the wireless interface
Note that the state of the front-panel ETHERNET LED may not necessarily correspond to
the state of the DATA LED on the Ethernet connector. The DATA LED indicates any
traffic over the wired link, while the ETHERNET LED indicates network data that will be
sent (or has been received from) the wireless link.
For example if the radio is pinged over the wired link, the DATA LED will blink but the
ETHERNET LED will not (because the ping packet was not transmitted over the air)

Blinks if SD card with new configuration inserted
Reserved for future additional use.

Blinks if SD card with new configuration inserted
Reserved for future additional use.
