RLX2 Industrial Hotspot Series

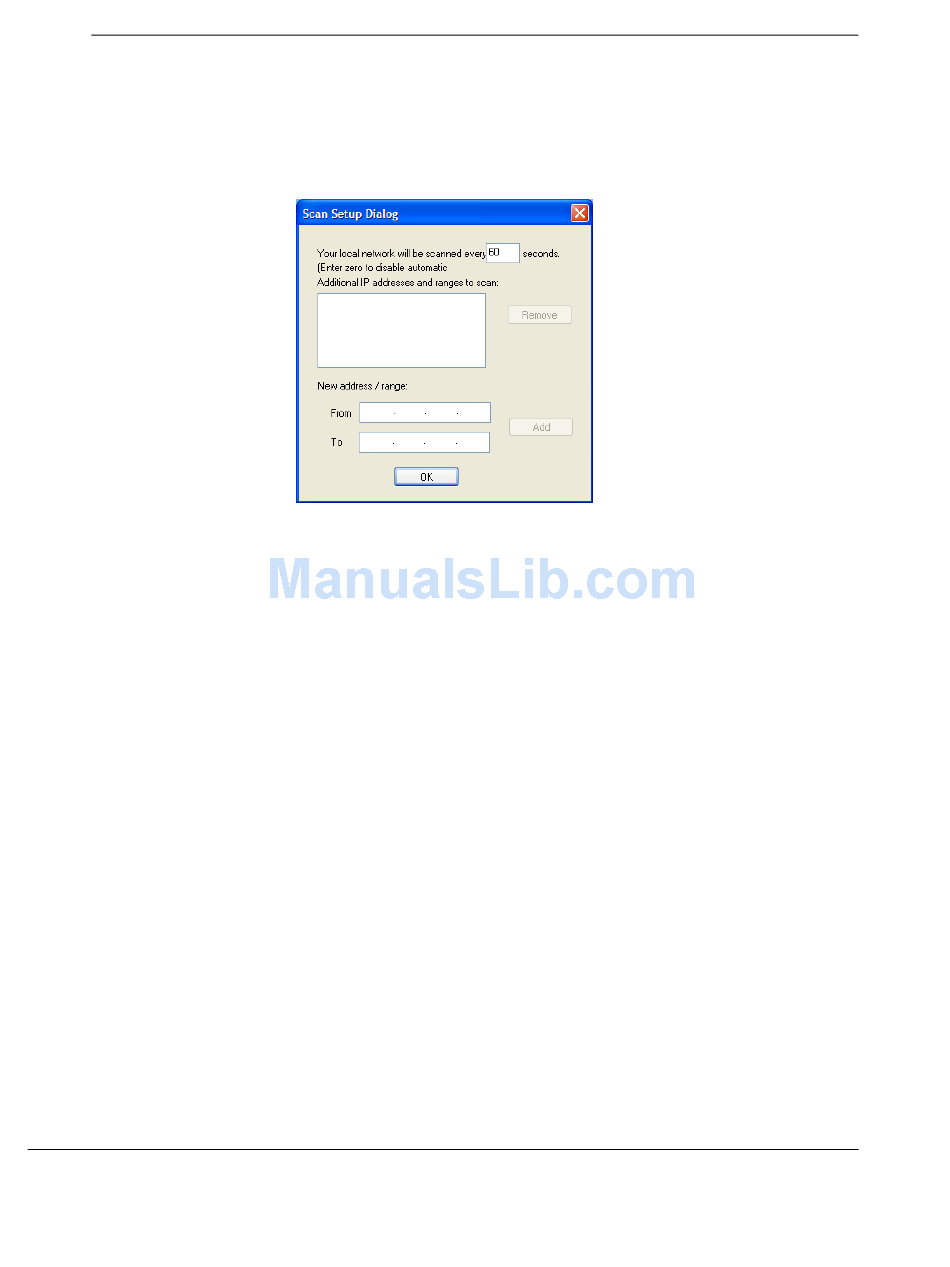

If there is a router between the PC running the IH Browser and the radio to be scanned,
the IP address of the radio or a range of addresses can be added to the scan list. At each
interval determined by the scan rate, each IP address is individually queried.

Scan

The IH Browser automatically scans for all active radios on the network at a regular
interval, use the Scan command in the File menu to look for active radios at any time.

Clear

Clears (deletes) all entries from the IH Browser window.

Import

Imports an XML file created by the Export command in the IH Browser.

Export

Creates and saves an XML file containing the current configuration and status of all
radios discovered by the IH Browser. Use this command under the direction of ProSoft
Technical Services, for troubleshooting purposes.

Freeze

Temporarily stops the display from updating. This command is useful for studying
network topology and performance without the distraction of radios and other devices
appearing and disappearing from the screen.

Print

Prints the contents of the IH Browser window. Depending on the view selected, the
radio properties or a topology view can be printed.
