RLXIB-IHA ♦ 802.11a
RadioLinx® 802.11a Industrial Hotspot
The IH radio updates this list with each 802.11 packet that is received, whether
from a radio of the same network or one that belongs to another SSID. It can also
see radios from other vendors.
Once per second the IH radio evaluates the link it has to its parent to determine if
this link is the best parent to use. A cost is calculated for each entry and can be
seen in the column labeled "Cost" in the preceding table. The cost calculation is
based not only on the strongest signal, but on several other factors to provide
optimum network communication.

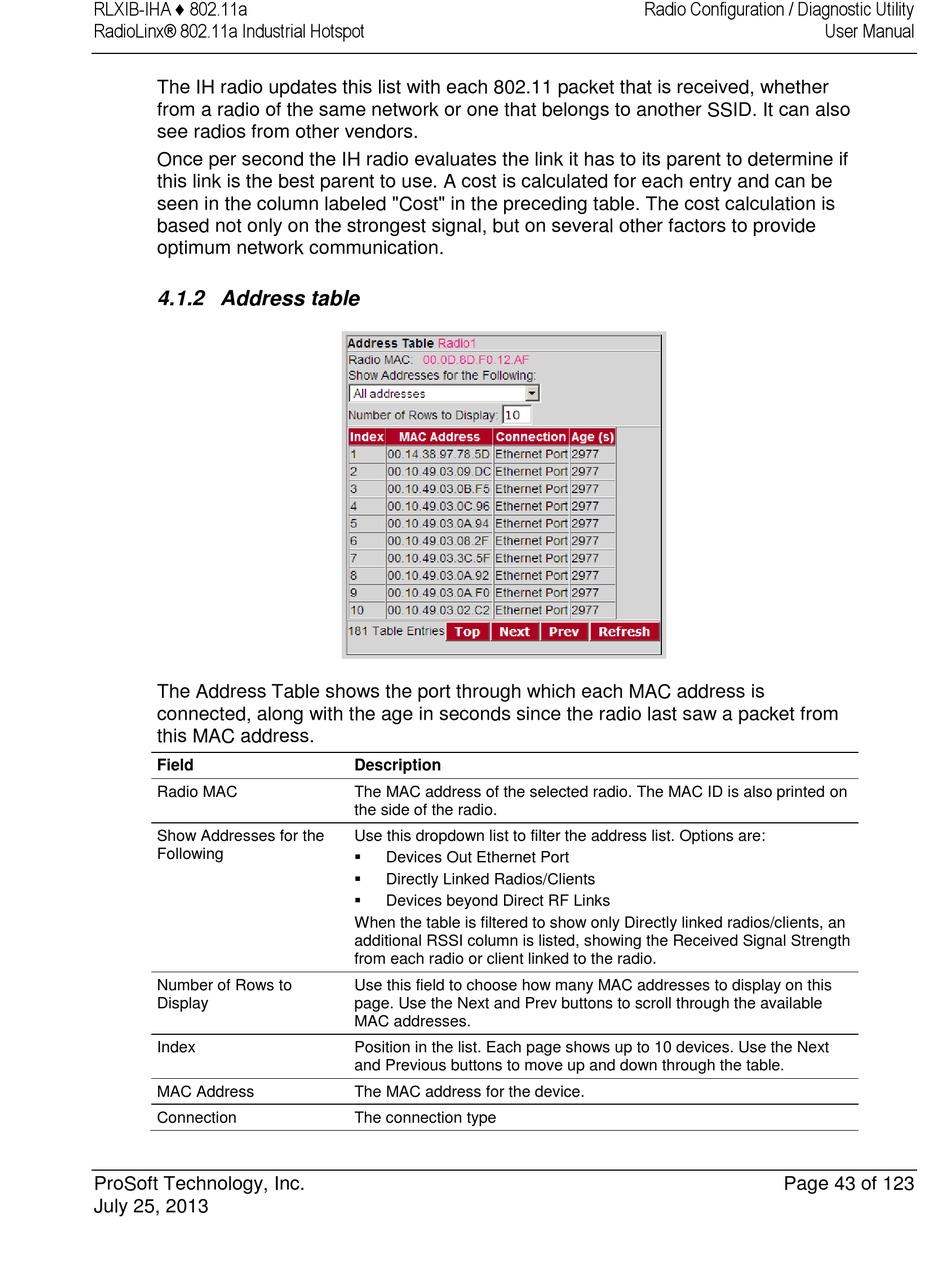

4.1.2 Address table

The Address Table shows the port through which each MAC address is
connected, along with the age in seconds since the radio last saw a packet from
this MAC address.
Field
Radio MAC
Show Addresses for the
Following
Number of Rows to
Display
Index
MAC Address
Connection
ProSoft Technology, Inc.
July 25, 2013
Description
The MAC address of the selected radio. The MAC ID is also printed on
the side of the radio.
Use this dropdown list to filter the address list. Options are:

Devices Out Ethernet Port

Directly Linked Radios/Clients

Devices beyond Direct RF Links
When the table is filtered to show only Directly linked radios/clients, an
additional RSSI column is listed, showing the Received Signal Strength
from each radio or client linked to the radio.
Use this field to choose how many MAC addresses to display on this
page. Use the Next and Prev buttons to scroll through the available
MAC addresses.
Position in the list. Each page shows up to 10 devices. Use the Next
and Previous buttons to move up and down through the table.
The MAC address for the device.
The connection type
Radio Configuration / Diagnostic Utility
Page 43 of 123
User Manual
