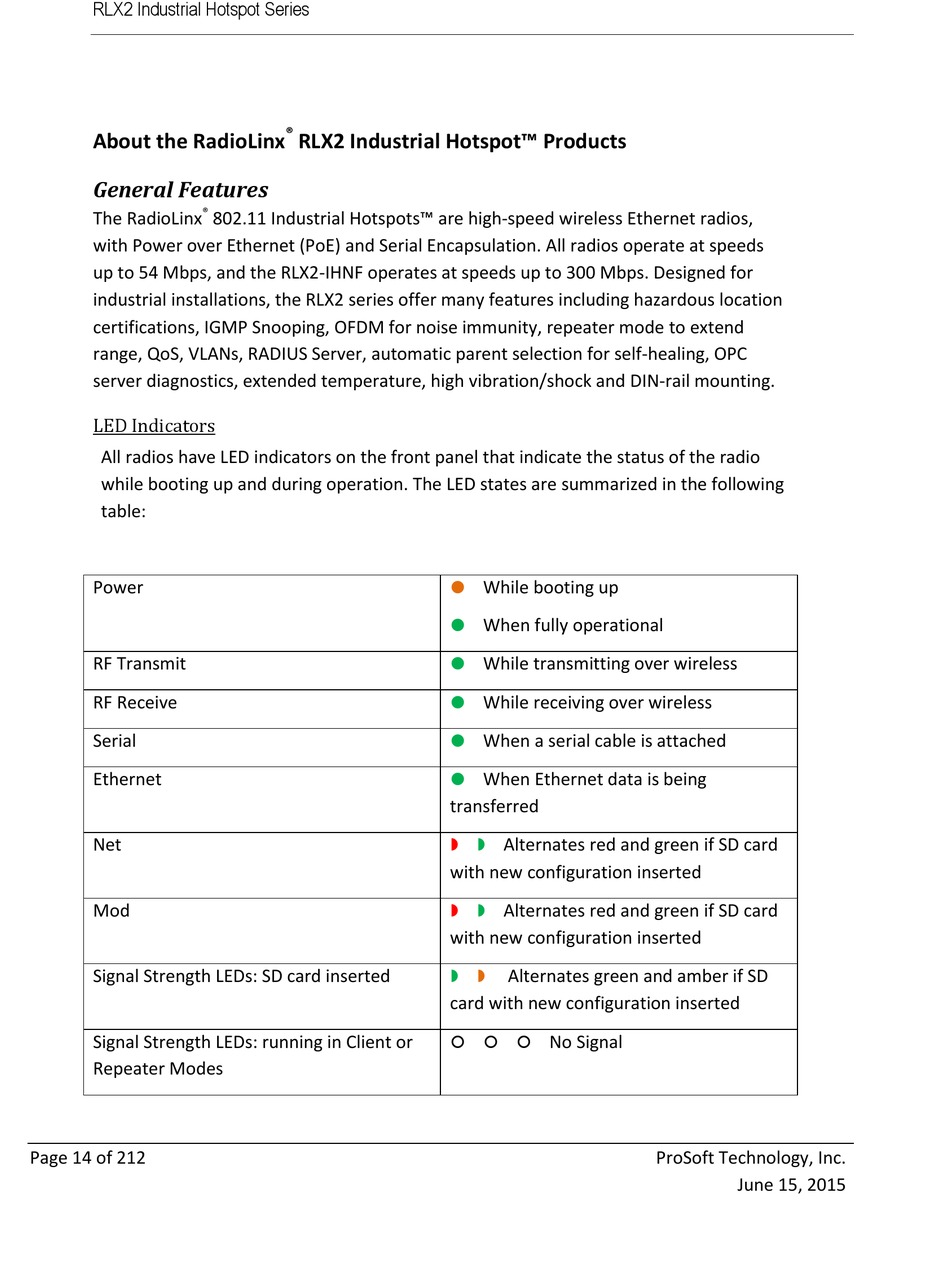

About the RadioLinx

General Features

®
The RadioLinx
with Power over Ethernet (PoE) and Serial Encapsulation. All radios operate at speeds
up to 54 Mbps, and the RLX2-IHNF operates at speeds up to 300 Mbps. Designed for
industrial installations, the RLX2 series offer many features including hazardous location
certifications, IGMP Snooping, OFDM for noise immunity, repeater mode to extend
range, QoS, VLANs, RADIUS Server, automatic parent selection for self-healing, OPC
server diagnostics, extended temperature, high vibration/shock and DIN-rail mounting.
LED Indicators
All radios have LED indicators on the front panel that indicate the status of the radio
while booting up and during operation. The LED states are summarized in the following
table:
Power
RF Transmit
RF Receive
Serial
Ethernet
Net
Mod
Signal Strength LEDs: SD card inserted
Signal Strength LEDs: running in Client or
Repeater Modes
Page 14 of 212
®
RLX2 Industrial Hotspot™ Products
802.11 Industrial Hotspots™ are high-speed wireless Ethernet radios,
 While booting up
 When fully operational

While transmitting over wireless
 While receiving over wireless
 When a serial cable is attached
 When Ethernet data is being
transferred

Alternates red and green if SD card
with new configuration inserted

Alternates red and green if SD card
with new configuration inserted
 Alternates green and amber if SD
card with new configuration inserted
 No Signal

