Assign IP

If the radio is connected to a network with a DHCP server, the radio may already have
an IP address assigned to it. If no address appears, double-click the radio listing in the IH

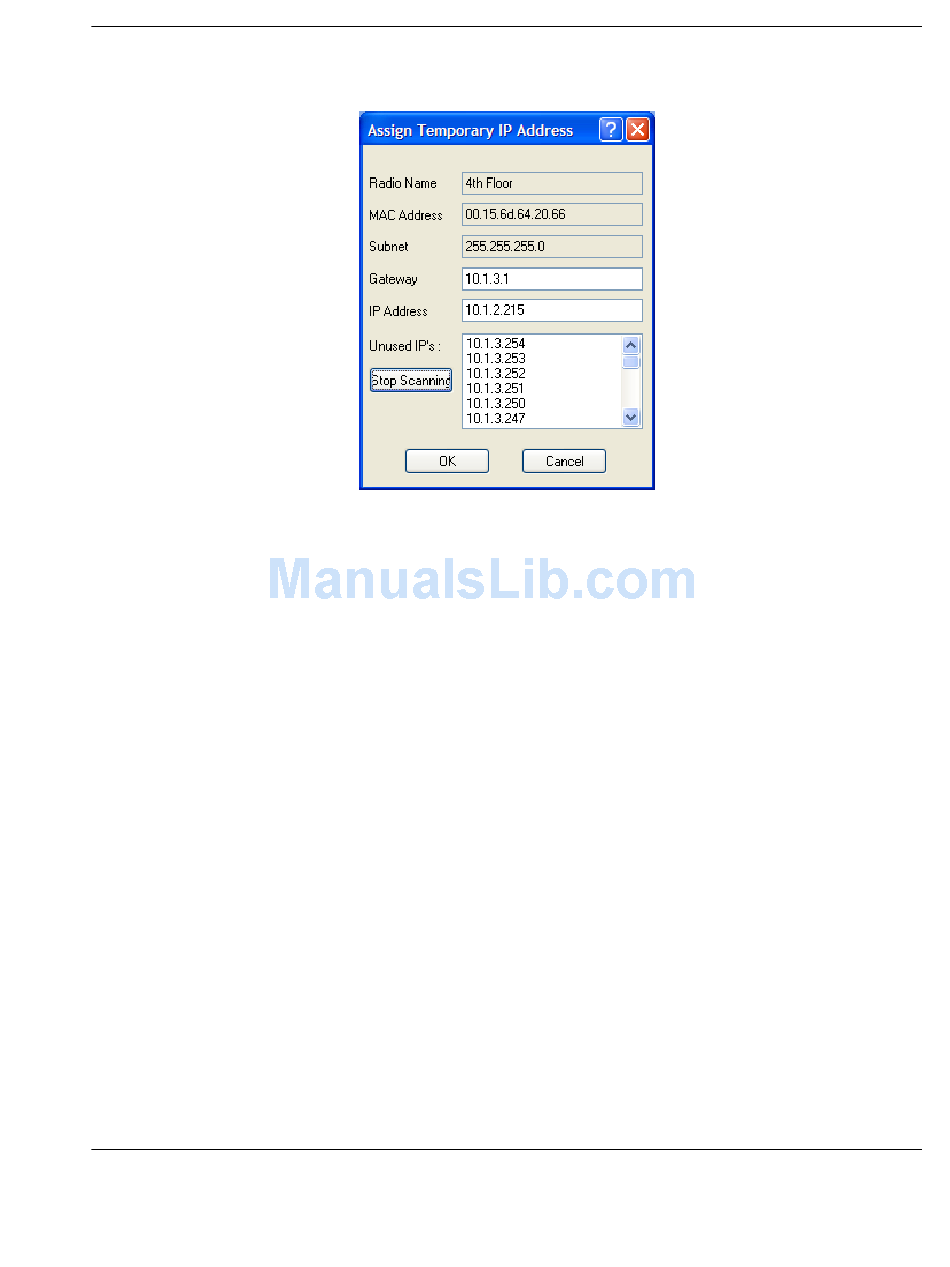

Browser or select Assign IP in the AP Operations menu. In the next window, click OK to
accept the temporary IP address, subnet mask, and default gateway. If necessary, a
particular IP address can be entered (see Radio Access settings (page 115)). After an IP
address is assigned, configuring the radios can be done in the Radio Configuration /
Diagnostic Utility (page 66).
