Parent Link Settings - ProSoft Technology RadioLinx RLX2-IHW User Manual

RLX2 Industrial Hotspot Series

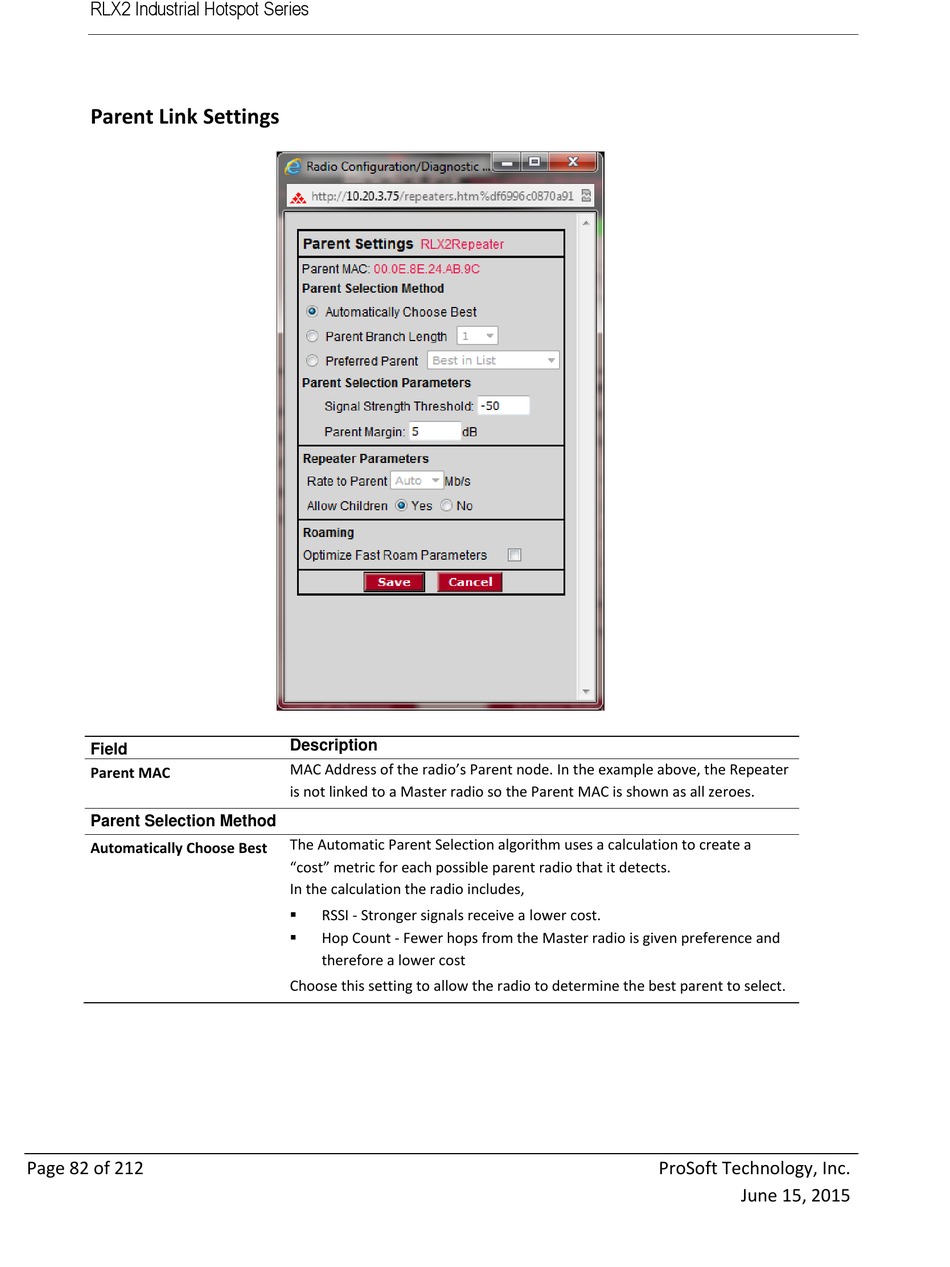

Parent Link Settings

Field
Parent MAC
Parent Selection Method
Automatically Choose Best
Page 82 of 212
Description
MAC Address of the radio's Parent node. In the example above, the Repeater
is not linked to a Master radio so the Parent MAC is shown as all zeroes.
The Automatic Parent Selection algorithm uses a calculation to create a
"cost" metric for each possible parent radio that it detects.
In the calculation the radio includes,

RSSI - Stronger signals receive a lower cost.

Hop Count - Fewer hops from the Master radio is given preference and
therefore a lower cost
Choose this setting to allow the radio to determine the best parent to select.
ProSoft Technology, Inc.
June 15, 2015
