Typical circuit diagrams
9.4 DM-F PROFIsafe, actuator circuits
9.4.5
Actuator circuit with feedback circuit, control function = Dahlander starter

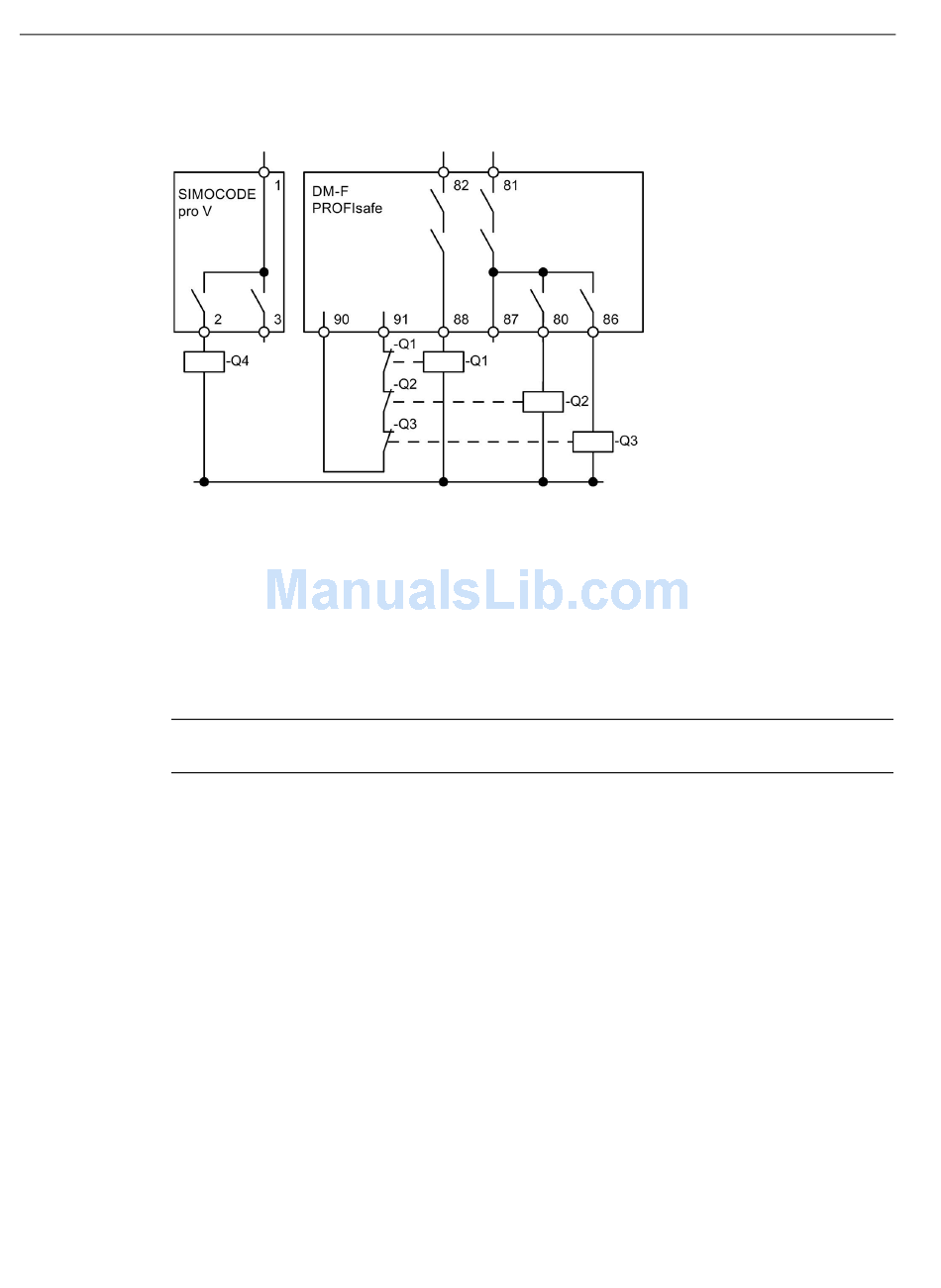

Figure 9-27
Q1: Incoming supply contactor
Q2: Line contactor, slow
Q3: Line contactor, fast
Q4: Star contactor
Note
Protective circuit required to suppress surge voltages!
88
Circuit diagram of an actuator circuit with feedback circuit, control function = Dahlander
starter, with incoming supply contactor, maximum safety integrity level
SIL 3 / performance level PL e
SIMOCODE pro - Fail-Safe Digital Modules
Manual, 11/2017, NEB631679702000/RS-AA/002
