Mounting and connection
4.2 Mounting
Screw mounting
As an alternative, the devices can be screw mounted with two additional push-in lugs each
(Article No. 3RP1903).

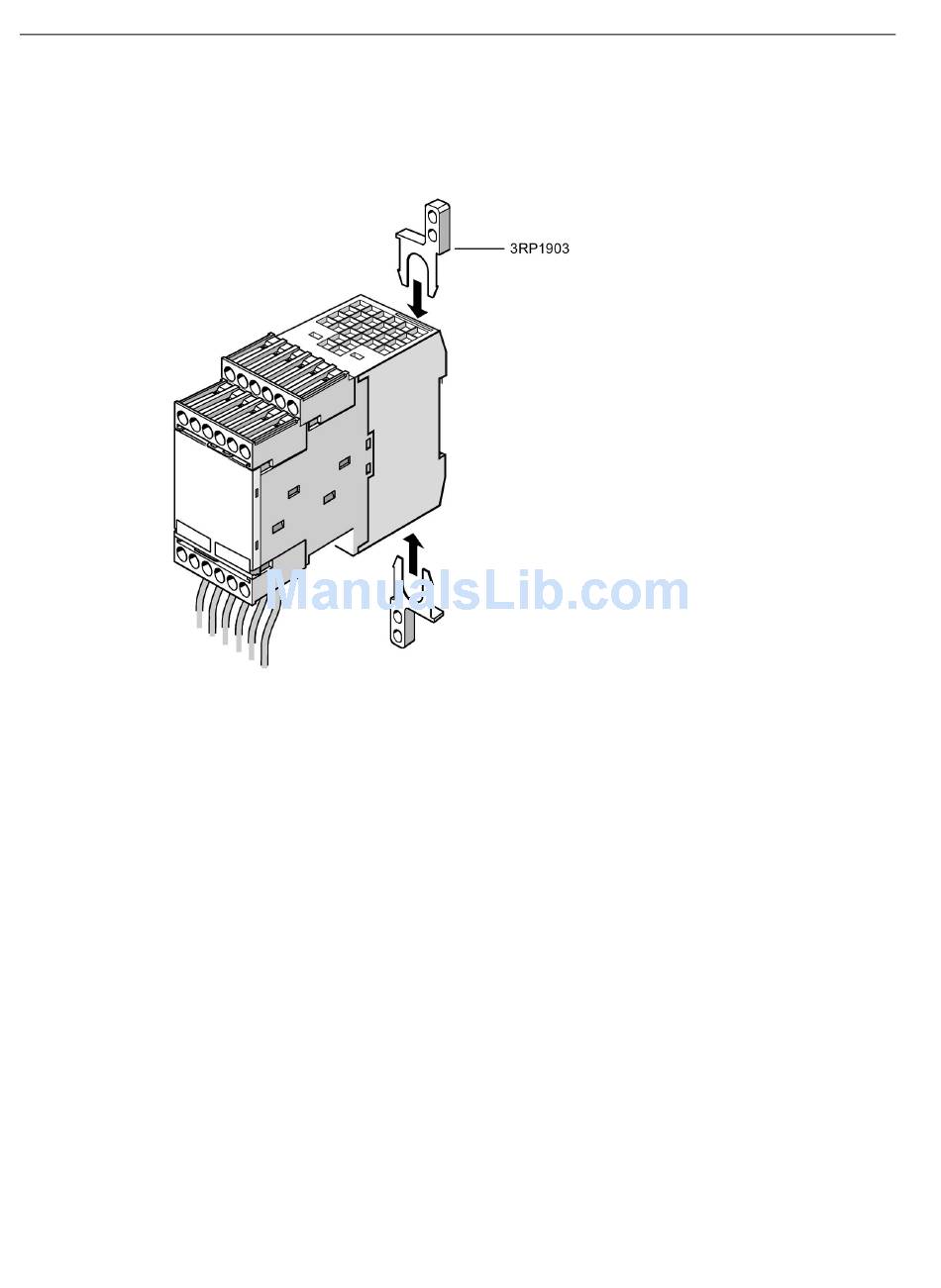

Figure 4-3
26
Mounting the DM-F with push-in lugs for screw mounting
SIMOCODE pro - Fail-Safe Digital Modules
Manual, 11/2017, NEB631679702000/RS-AA/002
