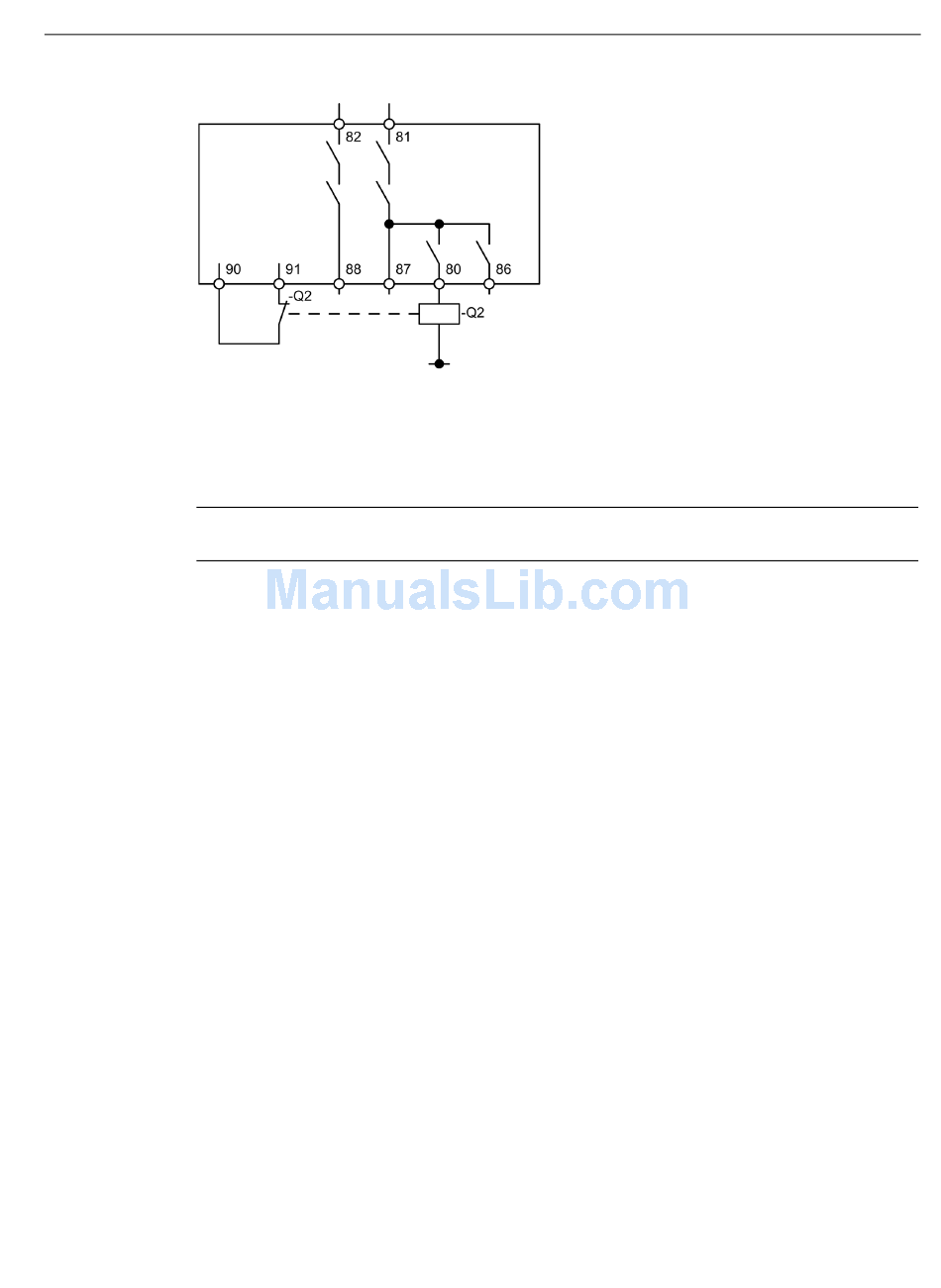

Figure 9-22
Q2: Motor contactor
Note
Protective circuit required to suppress surge voltages!
SIMOCODE pro - Fail-Safe Digital Modules
Manual, 11/2017, NEB631679702000/RS-AA/002
Circuit diagram of an actuator circuit with feedback circuit, control function = direct
starter, without incoming supply contactor, maximum safety integrity level
SIL 1 / performance level PL c
Typical circuit diagrams
9.4 DM-F PROFIsafe, actuator circuits
83
