(1)
Protective circuit
required to suppress
surge voltages!
Figure 9-1
SIMOCODE pro - Fail-Safe Digital Modules
Manual, 11/2017, NEB631679702000/RS-AA/002
Sensor circuit
S10 Emergency stop Q1 = Incoming supply contactor
S11 Start

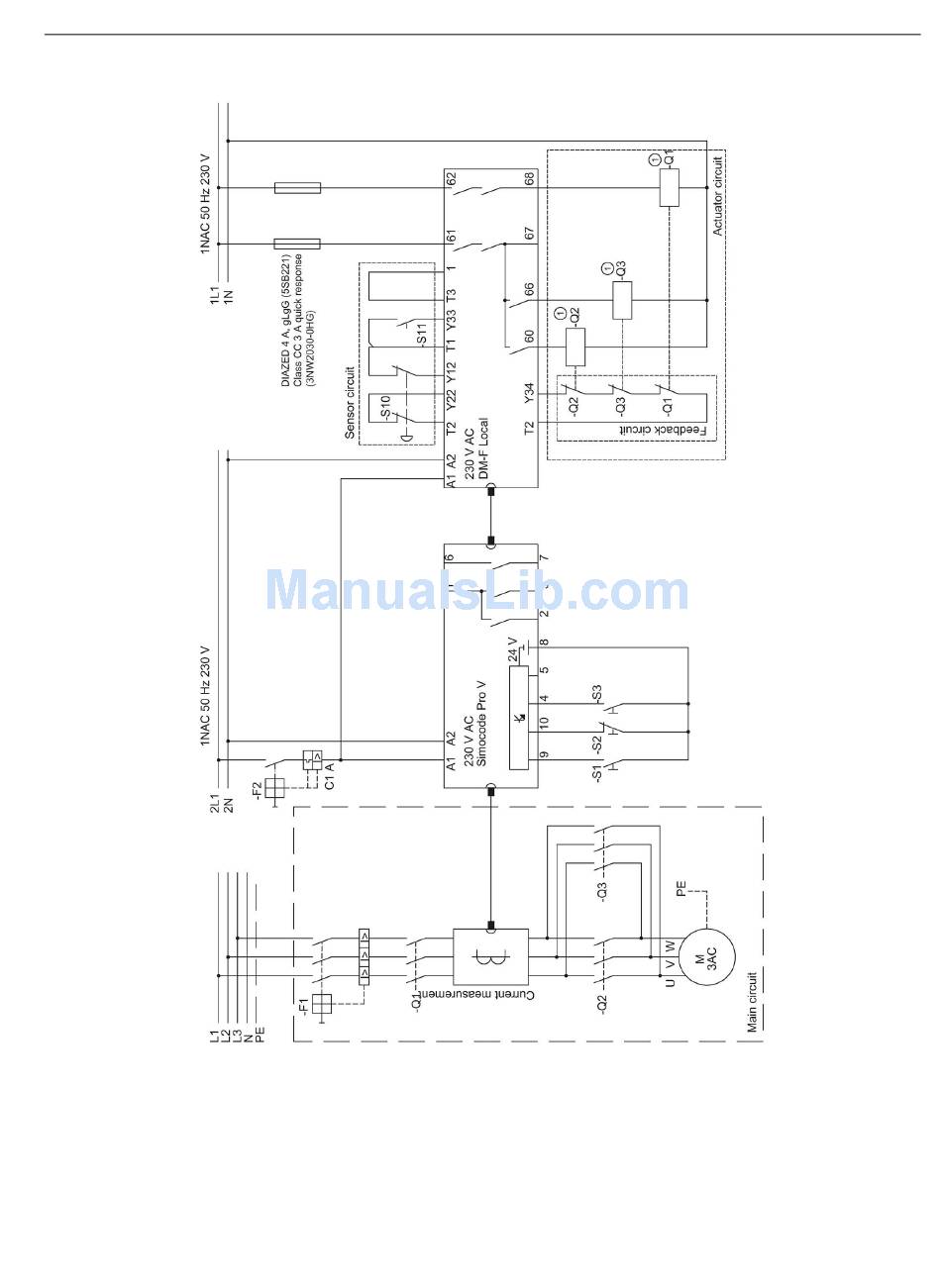

Typical circuit diagram of a reversing starter with safety-related tripping via an
emergency stop control device, maximum level SIL 3 or PL e
Actuator circuit
Q2 = Motor contactor CW
Q3 = Motor contactor CCW
Typical circuit diagrams
9.1 Introduction
Local operation
S1 = CW rotation
S2 = Off
S3 = CCW rotation
61
