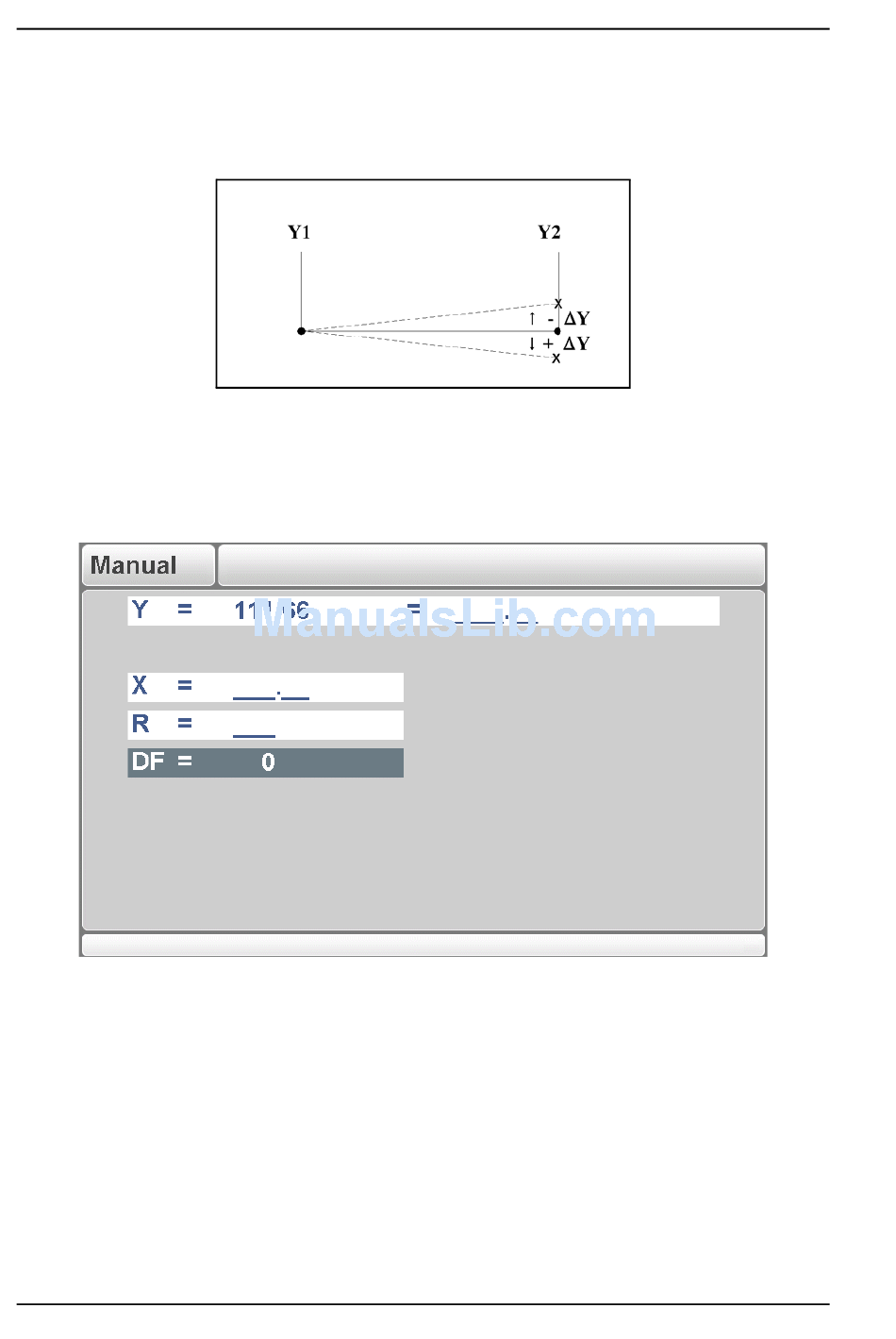

Parallelism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Y2
Difference of left- and right hand side cylinder (Y1 and Y2). When positive right hand
side lower. When negative right hand side higher. The programmed value is active
below the clamping point.
After pushing the start button all the programmed parameters are active.
5.3.
Zoomed values
In this screen, the values of the controlled axes are displayed.
V0812, 5.4
5.c
5.d
