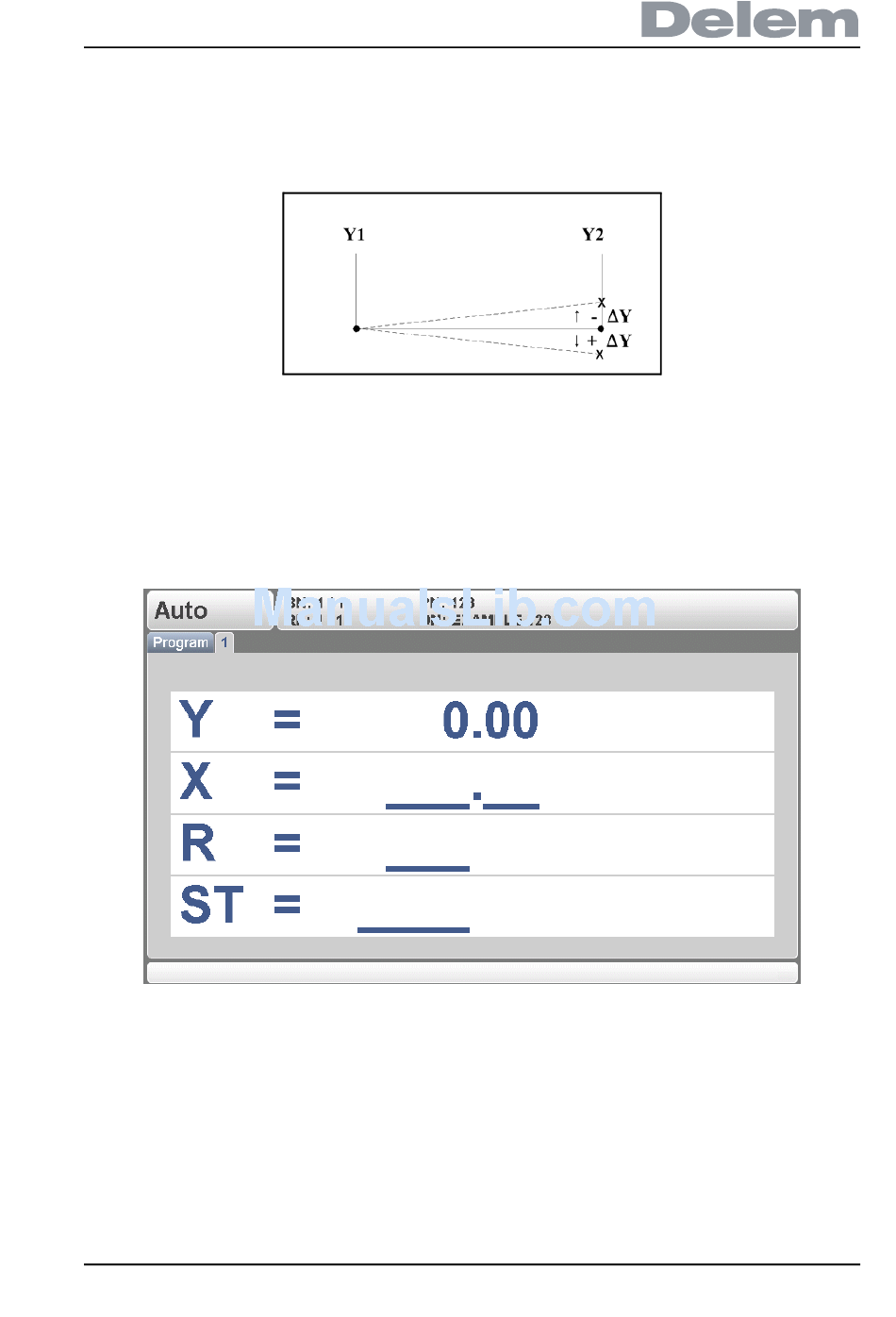

Parallelism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..Y2
Difference of left- and right hand side cylinder (Y1 and Y2). When positive, right hand
side lower. When negative, right hand side higher. The programmed value is active
below the clamping point.

2.3.4. Bend parameters - third page

When pressing the 'change view' button from any of the bend pages there is a third page
available with large values. These "large actuals" are helpfull while working at the machine
from a distance to the control. Most important values are displayed in a large charactersize
and can be easily monitored.
The control can be started from this view.
When pressing the 'change view' button again the first bend parameters page is displayed
again.
