3.3.2. Die parameters

Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..H
The height of the tool. Important: this height value will be used in bend depth calculation.
V-opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..W
The V-opening of the die.

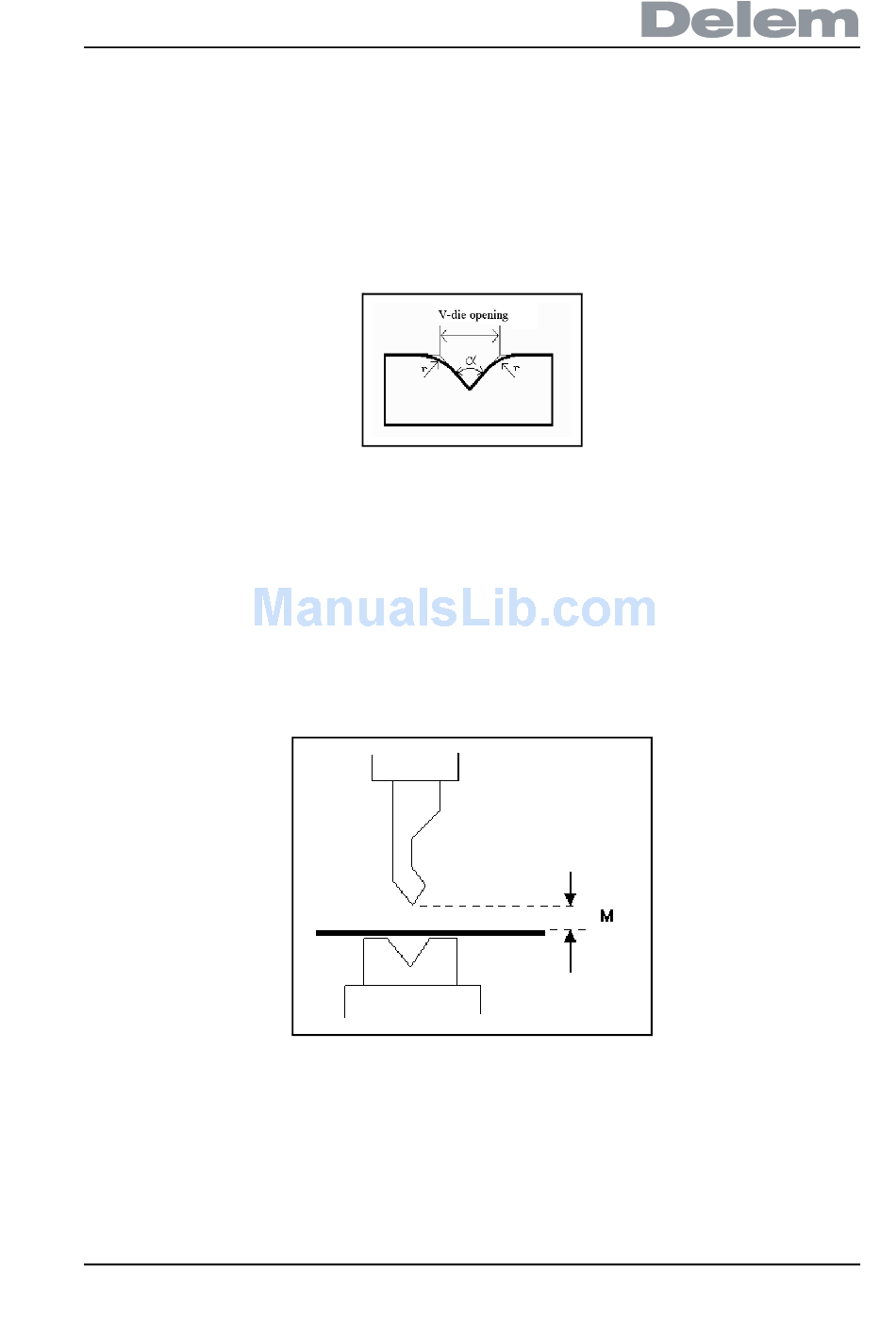

V-die opening:
The width V is the distance between the touching lines crossing.
Angle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..
The angle of the die.
Radius. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..RA
The radius of the edges of the V-opening.
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..M
Muting distance. Distance above the sheet at which the speed change takes place.
3.c
3.d
α
V0812, 3.5
