4.6.

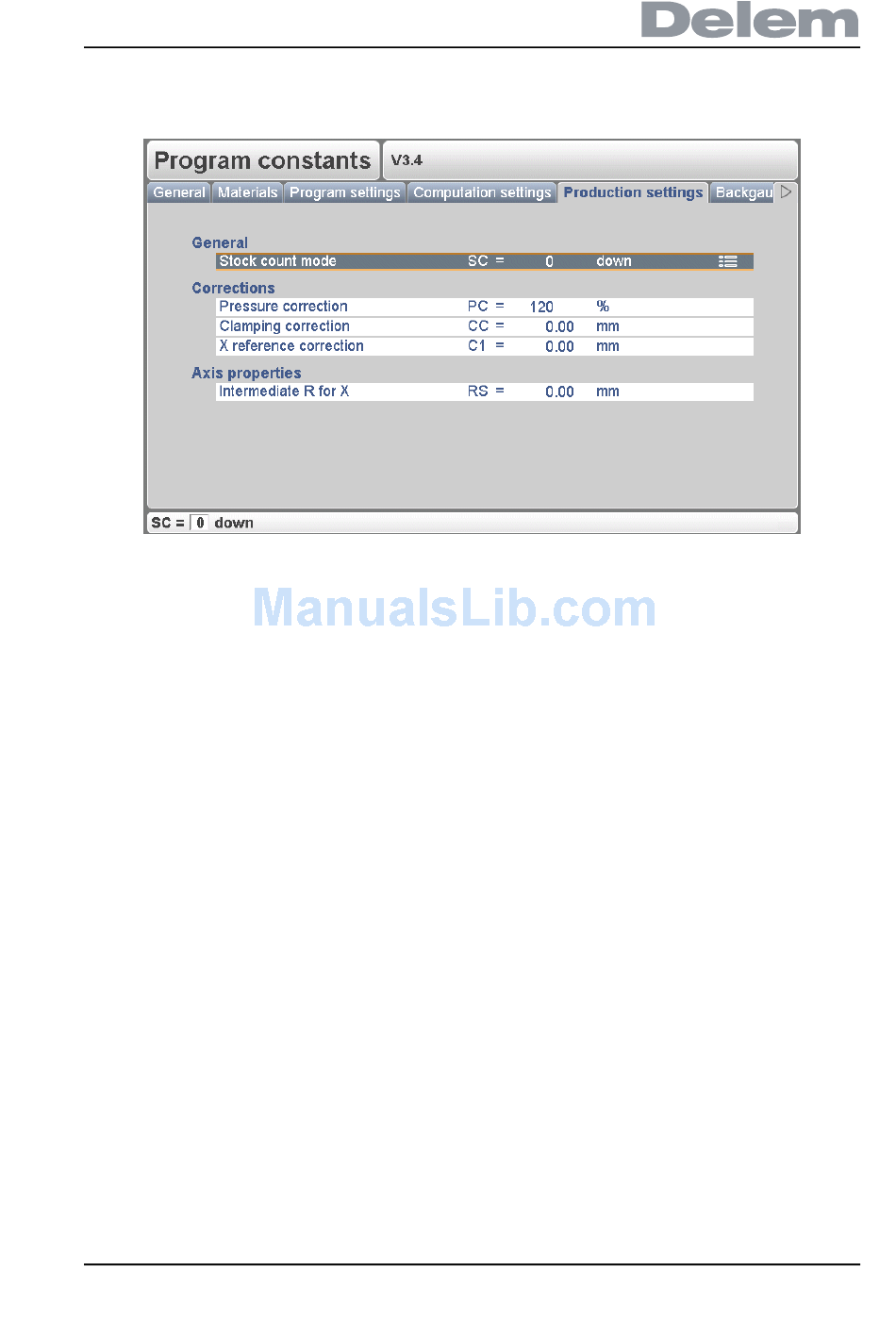

Production settings

Stock count mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..SC
Setting for the stock counter in production mode, to have the stock counter (product
counter) count up or down.
When downcounting is selected, the stock counter in production mode is decremented
after each completion of a product. When the counter has reached zero, the control is
stopped. On the next start action, the stock counting value is reset to its original value.
When upcounting is selected, the counter is incremented after each completion of a
product.
Downcounting can be useful if a pre-planned quota must be produced. Upcounting
could be used to give a report on production progress.
Pressure correction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..PC
Percentage of calculated tonnages which actually controls the pressure valve.
Clamping correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..CC
The position of the beam at which the sheet is clamped, is calculated. In order to have
a firm clamped sheet it is possible to offset the calculated pinch point with the value here
programmed. A positive value will result in a deeper position, a negative value in a
higher position of the beam.
X-reference correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..C1
When the actual, mechanical X-axis position is not corresponding with the displayed
value than is it possible to correct the position with this parameter. Program the
calculated difference.
Example:
- When the programmed and displayed value = 250 and the actual, mechanical position
value = 252 the XR parameter = -2.
- When the programmed and displayed value = 250 and the actual, mechanical position
value = 248 the XR parameter = +2.
