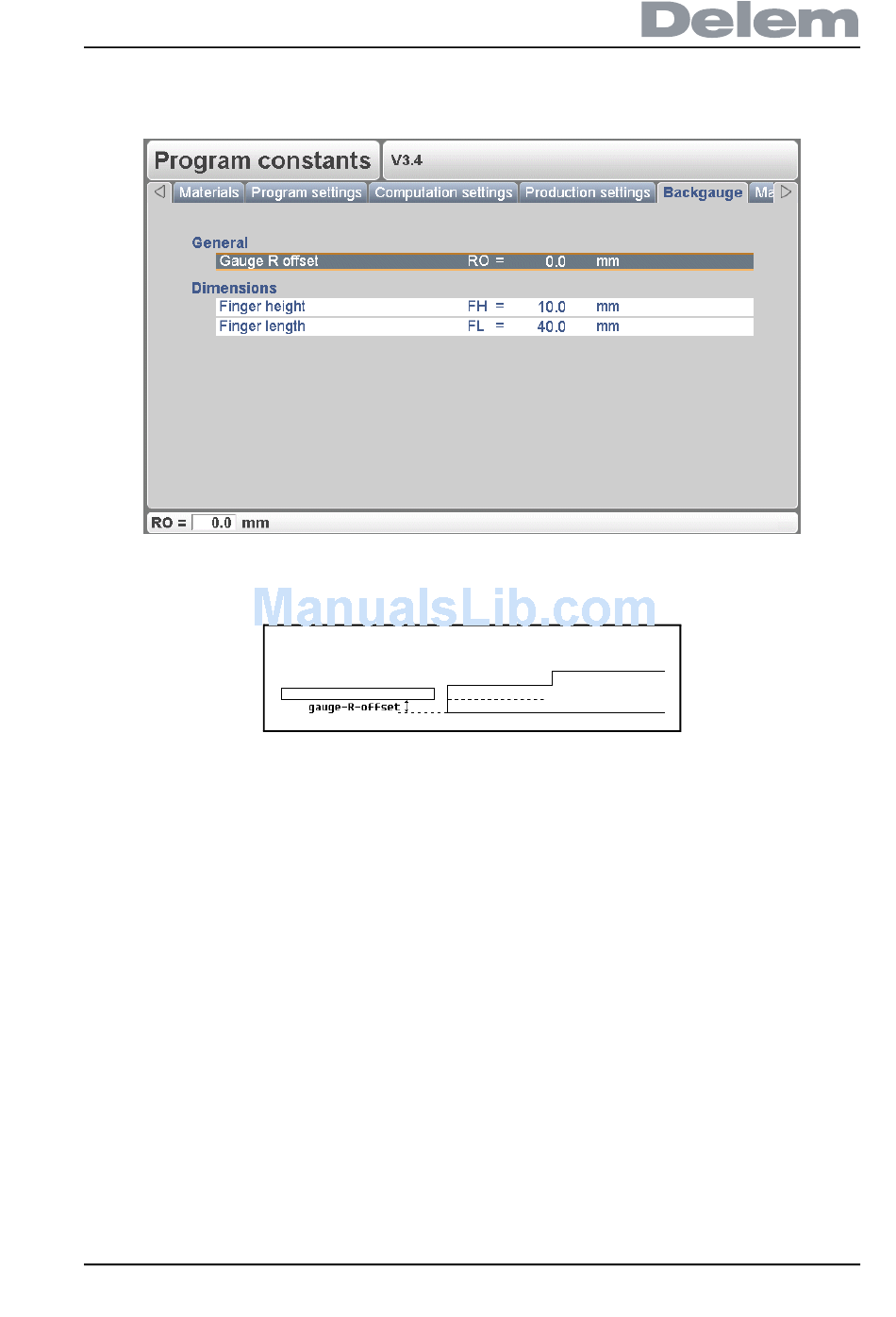

Backgauge dimensions
Gauge R offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..RO
An offset value for the R-axis when the X-axis position is outside the die safety zone.
A negative value gives a lower backgauge position. This offset is only valid for gauge
position 0.
Finger height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..FH
The height of the default finger level.
Used to correct the R-axis position in case of lay-on.
Finger length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..FL
The length of the first finger level.
Used to correct the X-axis position in case of lay-on.
4.g
4.h
V0812, 4.9
