2.3.

Bend programming

2.3.1. Introduction

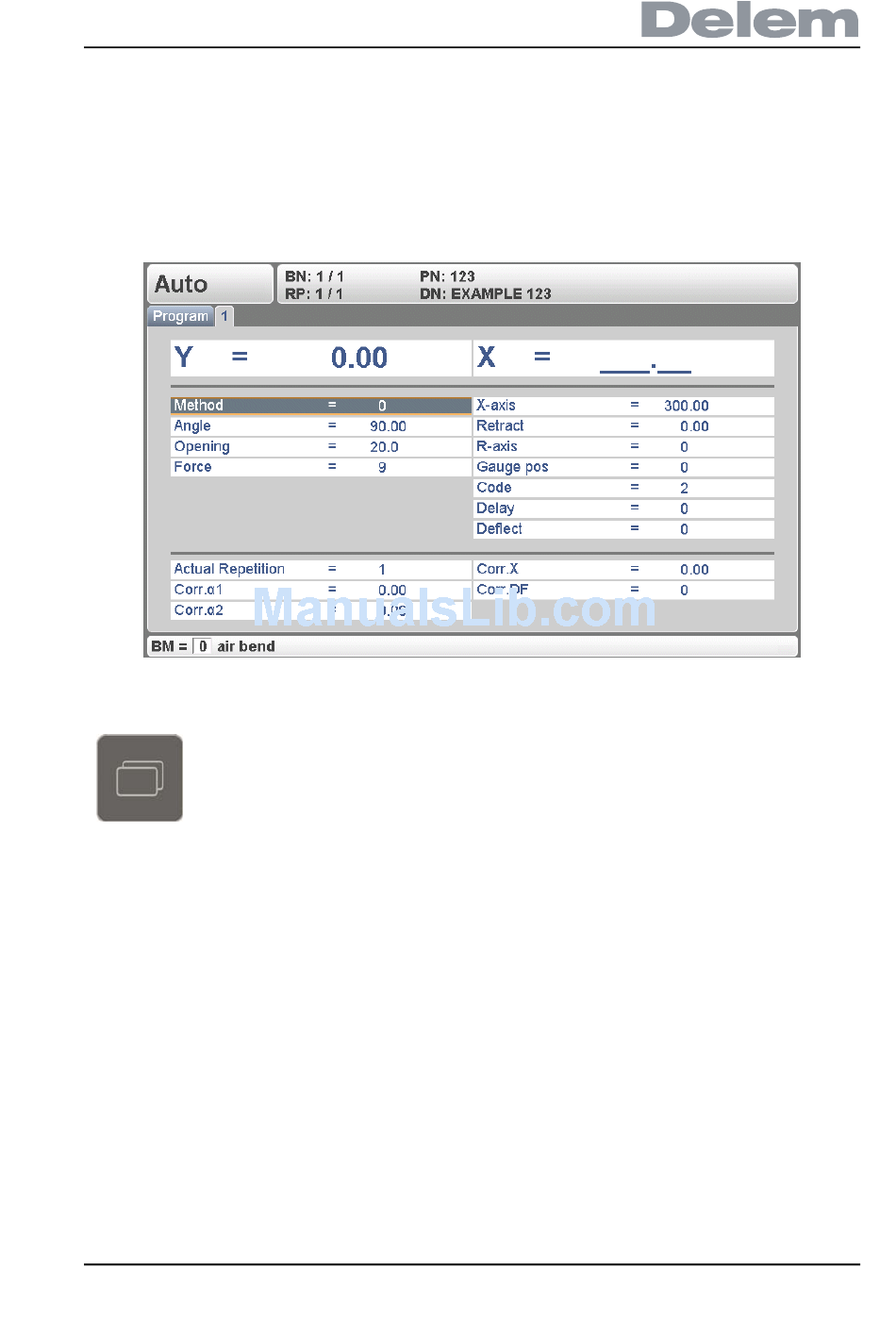

The parameters of one bend are divided over 2 screen pages. The bend number, product
number and drawing number are displayed in the top row on the screen.
Use the key 'change view' to switch to another page with bend
parameters.
When this key is pressed again, a screen with zoomed values appears.
The parameters below the line are corrections. They are not necessary when programming a
product, but are used to correct the machine behaviour during production. They are described
in chapter 6.
2.3.2. Bend parameters - first page
Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..BM
Select the required bending method. The control supports 2 methods:
0 = Air bend
1 = Bottoming
2.d
V0812, 2.5
