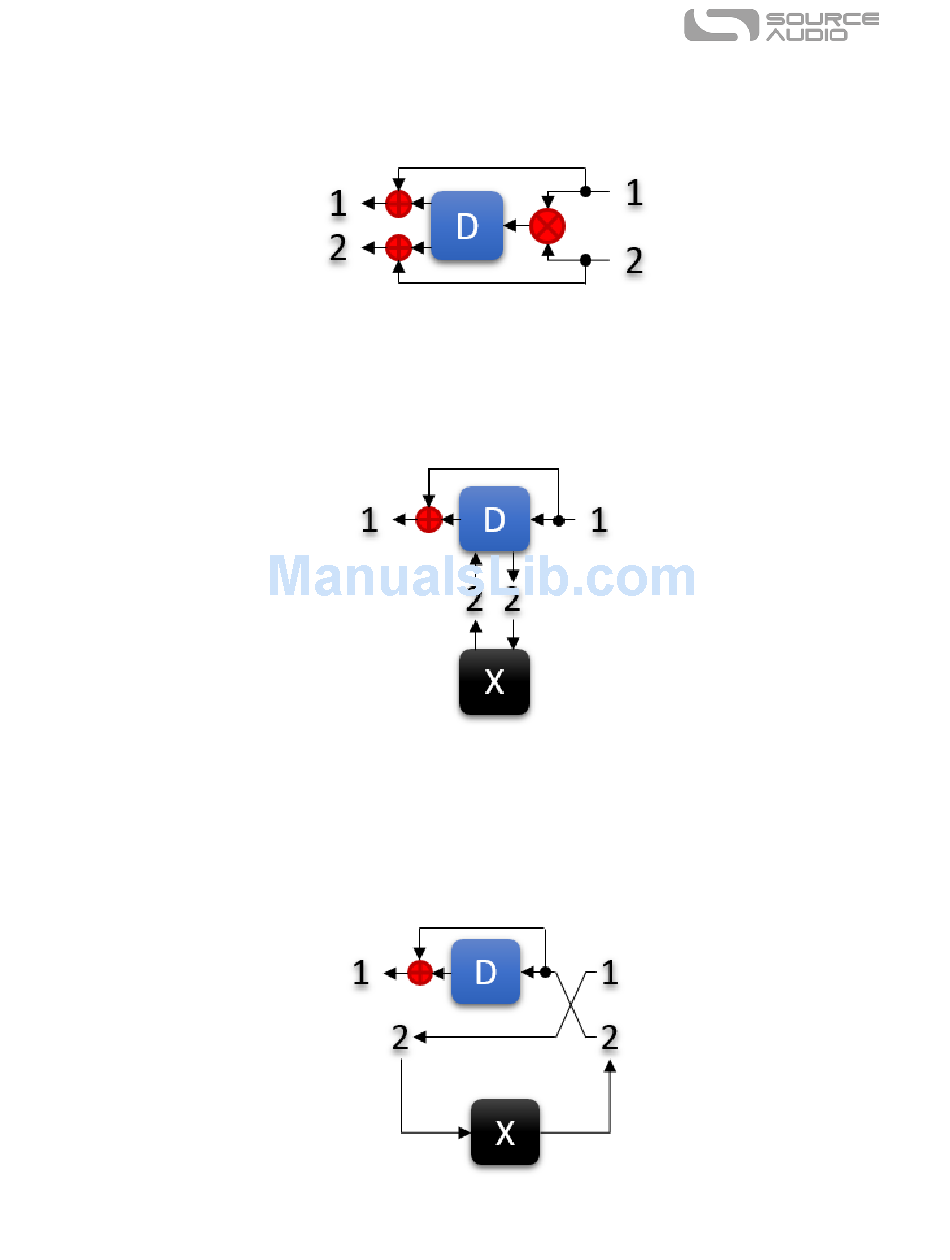

Stereo In, Stereo Out: The inputs are mixed and sent to a delay line containing stereo-panned taps.
The input dry signal stays true stereo all the way to the output, and the stereo delayed signal is
mixed back in just prior to the output. Hardware bypass is used, based on the selected bypass mode.
External Loop – Feedback Insert: This mode allows external effects to be inserted into the delay line
of the Nemesis, making them part of its delay feedback loop. This mode utilizes Output 2 as the
effect send and Input 2 as the effect return.
Warning – be careful when switching routing modes with an external loop configuration. If another
routing mode is selected, an infinite feedback loop can be created accidentally.
External Loop Pre-Effect: In this mode, an external effects pedal is inserted in series before the delay
line, and it only becomes active when the Nemesis is activated. Connect the external effects pedal's
input to Output 2 of the Nemesis, and connect the external effects pedal's output to Input 2 of the
Nemesis.
Warning – be careful when switching routing modes with an external loop configuration. If another
routing mode is selected, an infinite feedback loop can be created accidentally.
