Third party expression pedals can be connected to the C

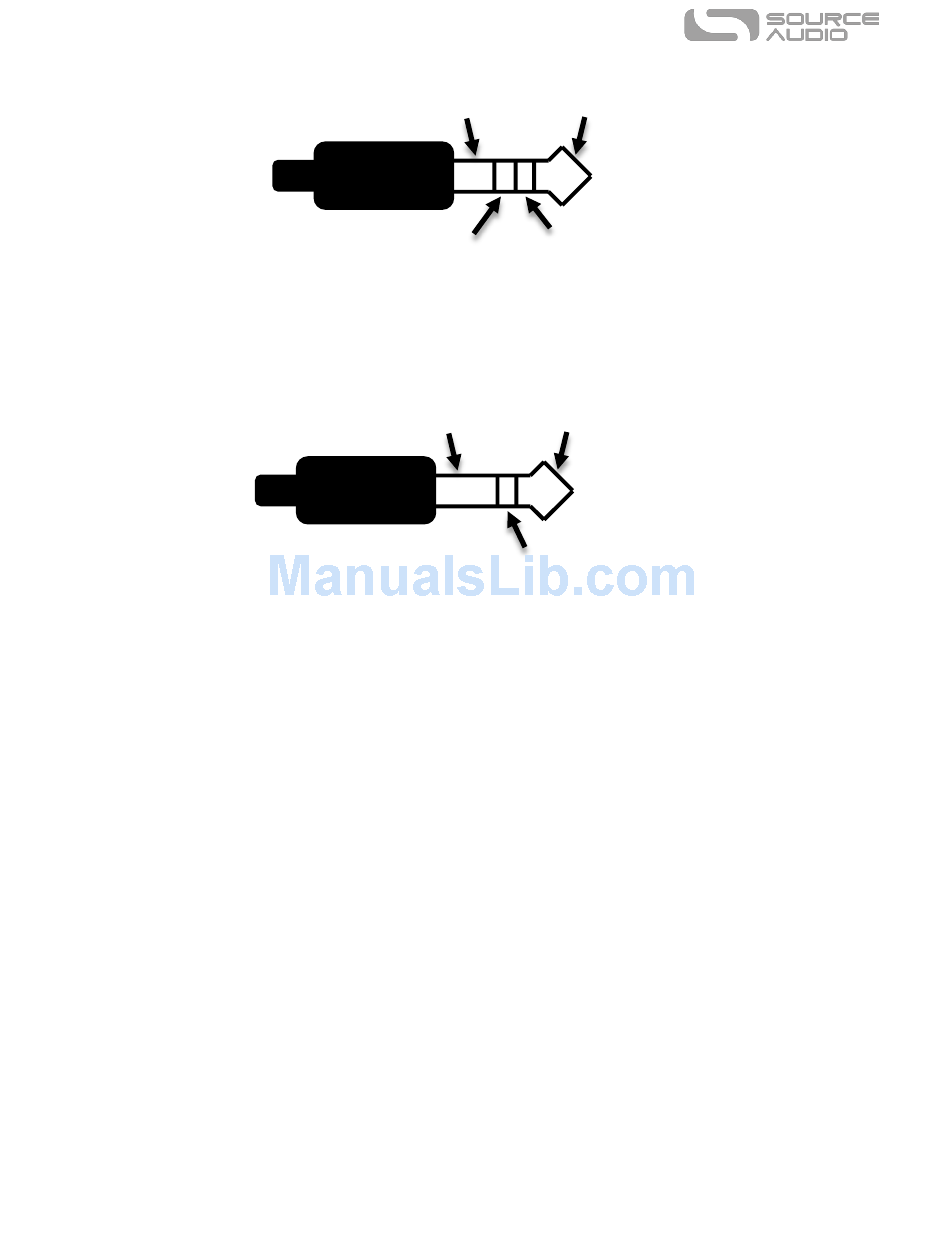

3.5 mm (1/8") TRS (Tip Ring Sleeve) plug with power on the tip, expression (the wiper of the
potentiometer) on the ring, and ground on the sleeve, as seen in the diagram below.
Expression pedals with TS (Tip Sleeve) plugs will not work correctly with the C
Nemesis.
Configuring the Expression Pedal
When the expression pedal is connected to the Nemesis, follow these simple steps to calibrate it and
map it to control different effect parameters.
1. Press the C
ONTROL
lit red.
2. Press and hold the C
(approximately one blink per second).
3. Move the expression pedal over the range of motion you would like to use to control the
Nemesis. If you would like to use the expression pedal's full range of motion, then make
sure to move the pedal all the way from its minimum position to its maximum position.
Note that you can create "dead zones," if desired, by only moving the expression pedal over
a limited region of its full range of motion.
4. After setting the expression pedal range, click the O
is now complete, and the C
time to map the expression pedal to the effect parameters.
5. Move the knob(s) you wish to control with the expression pedal to the minimum desired
position, then click the O
(about 4 blinks per second). Note that you may control one or more knobs with the
expression pedal, up to six total knobs.
