Enable External Tap Tempo Switch hardware option in the Neuro App. Only the Tap Tempo function
is available using this method.
Source Audio Tap Tempo footswitches can be purchased directly from Source Audio via our online
store: www.sourceaudiostore.net
Expression Control
A variety of the Nemesis' effects parameters can be controlled by a passive expression pedal
connected to either the PEDAL IN or the CONTROL INPUT port. By default, when a passive expression
pedal is connected to the PEDAL IN jack, the Nemesis will default to using the pedal as an Input
Volume control on both wet and dry signals. This feature can be used to create volume swell effects.
Alternatively, users can map the expression pedal to control any combination of the six control
knobs: TIME, MIX, FEEDBACK, MOD, RATE, or INTENSITY.
Expression Pedal Input
Connecting an Expression Pedal to the 1/4" Expression Input
Passive expression pedals such as the Dual Expression Pedal or Reflex Universal Expression Pedal,
both from Source Audio, can be connected directly to the 1/4" P
party expression pedals can be used as well, as long as they have a TRS (Tip Ring Sleeve) plug with
power on the ring, expression (the wiper of the potentiometer) on the tip, and ground on the sleeve,

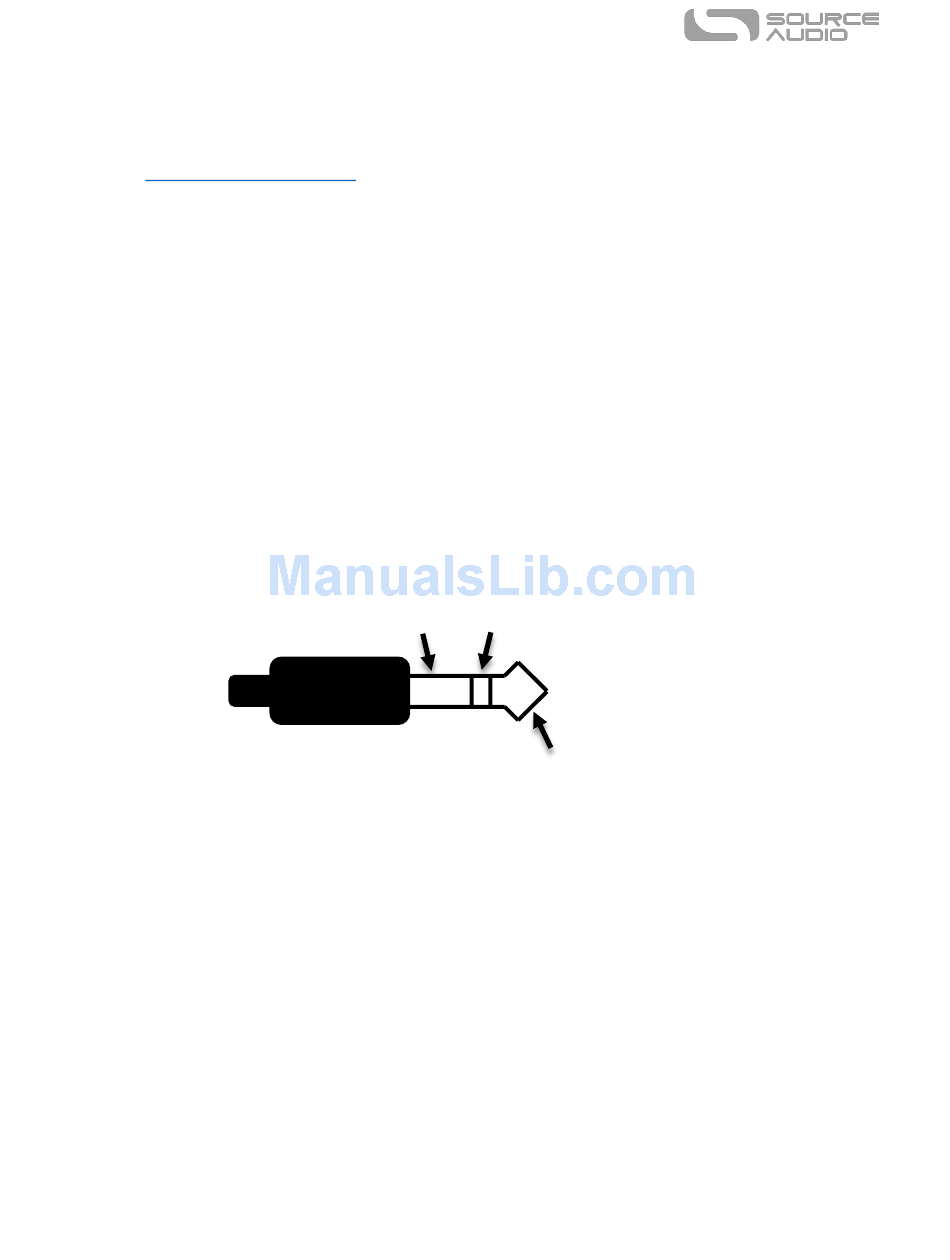

as seen in the diagram below.
Expression pedals with TS (Tip Sleeve) plugs will not work correctly with the expression input (P
I jack) of the Nemesis.
N
The resistance of the expression pedal is not critical. Pedal calibration is done automatically when a
new external control mapping is created.
Make sure that the P
Connecting an Expression Pedal to the 3.5mm Control Input
The Dual Expression Pedal or Reflex Universal Expression Pedal, both from Source Audio, can be
directly connected to the C
In the case of an expression pedal with a TRRS plug, like Source Audio's expression pedals, the tip
connection is power, the first ring is the X axis expression signal, the second ring is the Y axis
expression signal, and the sleeve connection is ground. In this configuration, the Nemesis uses the X
expression signal as its expression source.
SA260
Ground
I S is set to EXP in order to use this input as an expression input.
EDAL N WITCH
I jack using a 3.5mm (1/8 inch), TRRS cable.
ONTROL NPUT
Nemesis Delay User's Guide
I jack with a TRS cable. Third-
EDAL N
Power
Expression
EDAL
