Viewing System Information
The following areas are shown:
Panel Status – Displays a textual description of the status of the panel, as

well as the panel statuses of power, tamper, low battery, and RF Jam in
their respective colored checkboxes.
PGM Status – Displays the PGM statuses of PGM1 and PGM2 in their

respective colored checkboxes.
Panel Date/Time – Displays the panel date/time.

Legend – displays the Legend of the mapped system information as

shown in columns A/O, T, B, S, and X.
Actions – Includes buttons which enable actions to be performed on the

panel, such as Arm Home, Arm Away, and Disarm.
7.3

Applying Actions via the PC

You can use the HR-P02 PC Software to run actions on the panel itself (Figure
33).
7.3.1

Arming Home

To arm home:
In the View System Status screen, in the Actions area, click the Arm
1.
Home button.
7.3.2

Arming Away

To arm aw ay:
1. In the Actions area, click Arm Away.
50

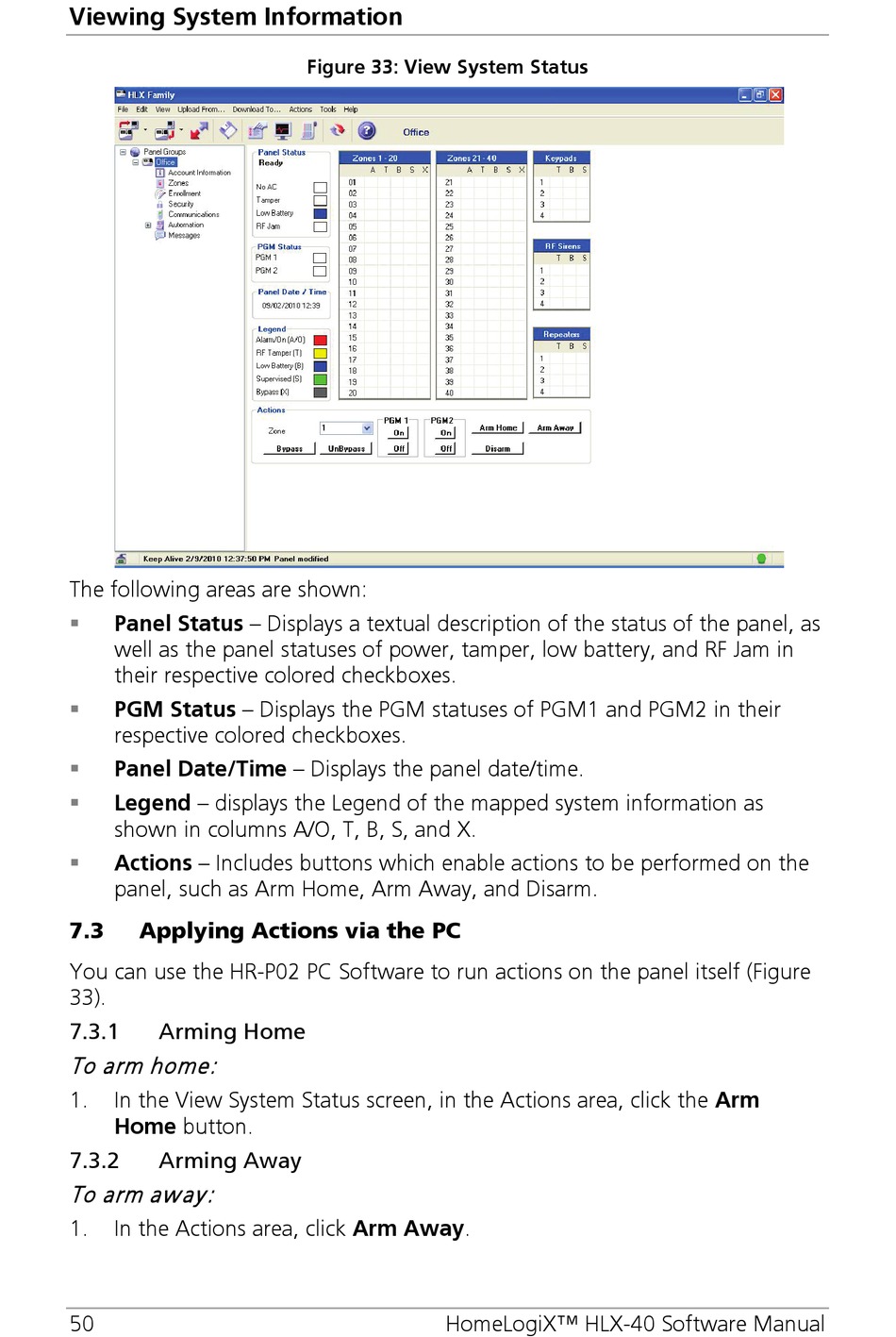

Figure 33: View System Status
