Parameter
Modulation type
Link Rate
Link Space
Forward Error
Correction
Scrambling
1. In Auto mode rover receives the data from both base transmitter and repeater. The sophisticated algo-
rithm of data receiving allows the modem to eliminate any data doubling.
2. In this mode the incoming data from base transmitter will be ignored.
3. In this mode the incoming data from repeater will be ignored.
2. When finished, click FileDisconnect.

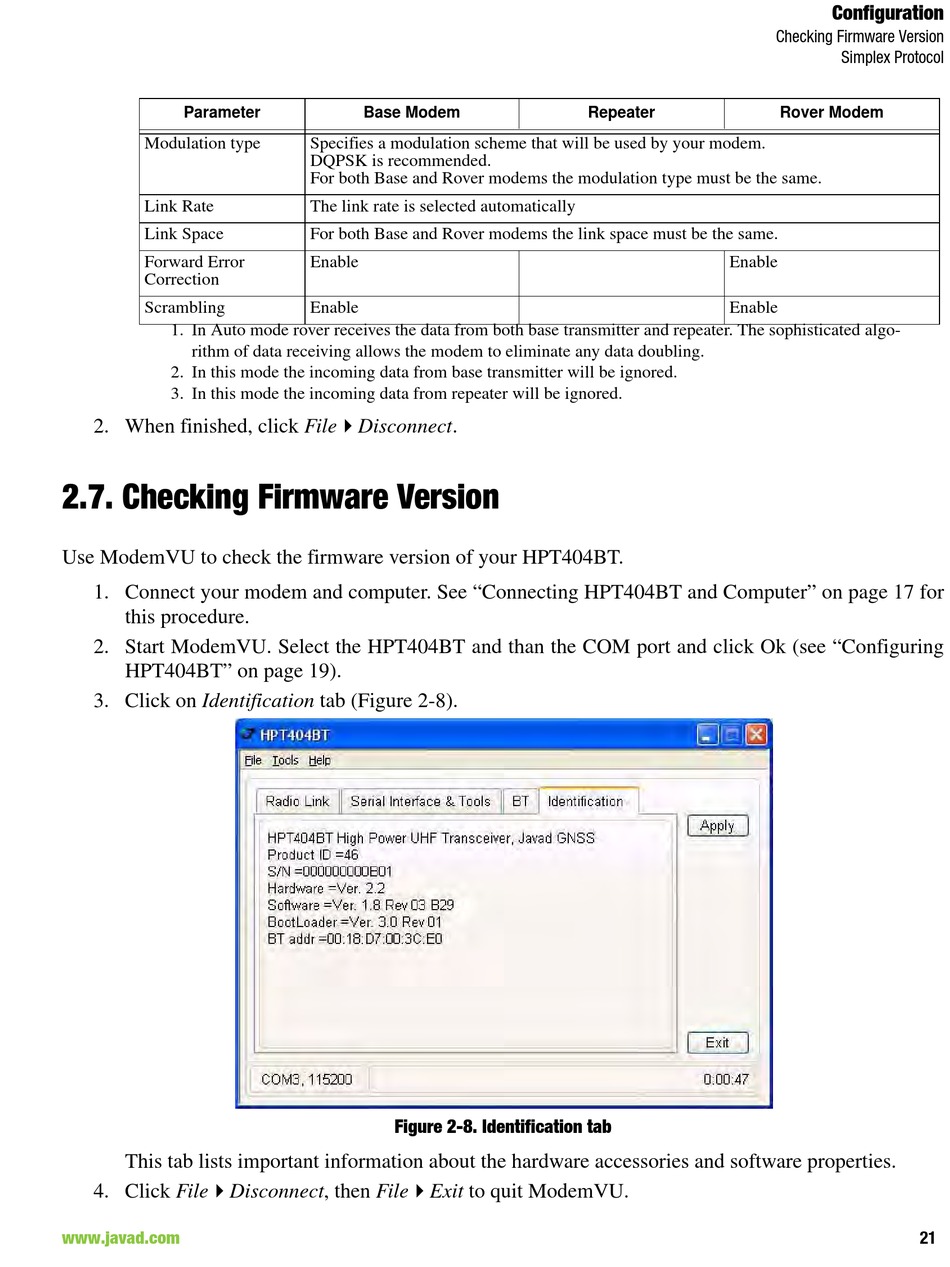

2.7. Checking Firmware Version

Use ModemVU to check the firmware version of your HPT404BT.
1. Connect your modem and computer. See "Connecting HPT404BT and Computer" on page 17 for
this procedure.
2. Start ModemVU. Select the HPT404BT and than the COM port and click Ok (see "Configuring
HPT404BT" on page 19).
3. Click on Identification tab (Figure 2-8).
This tab lists important information about the hardware accessories and software properties.
4. Click FileDisconnect, then FileExit to quit ModemVU.
www.javad.com
Base Modem
Specifies a modulation scheme that will be used by your modem.
DQPSK is recommended.
For both Base and Rover modems the modulation type must be the same.
The link rate is selected automatically
For both Base and Rover modems the link space must be the same.
Enable
Enable
Figure 2-8. Identification tab
Repeater
Enable
Enable
Configuration
Checking Firmware Version
Simplex Protocol
Rover Modem
21
