Connecting Through Bluetooth; Connecting Hpt404Bt And Triumph-1 - Javad HPT404BT Operator's Manual

Configuration

Connecting HPT404BT and TRIUMPH-1

Connecting through Bluetooth®

2.4.3. Connecting through Bluetooth

Note:
Do not forget to attach the Bluetooth
modem.
The HPT404BT modem contains Bluetooth
the modem and any other external device that supports Bluetooth
IPAQ, or a computer with USB-to-Bluetooth
HPT404BT and external device connection procedure varies slightly depending on the type of external
device used. In general, the connection procedure is as follows:
Note:
Refer to your Bluetooth
information.
1. Turn on a Bluetooth
mode is Master; the modem's Bluetooth
2. Instruct the external device (Master) to search for the modem (Slave).
3. Once the Master device detects the modem, use the procedure described in the external device's
documentation to connect it with the modem.
2.5. Connecting HPT404BT and TRIUMPH-1
Connect the external HPT404BT UHF radio to receiver's port B with cable Accessory Data-Ser cable,
ODU-7/DB15/SAE (6 ft./1,8m), p/n14-578110-02.
Once you have established a connection between the modem and the TRIUMPH-1, you will be able to:
• Configure the modem and its components through receiver;
• Send commands to the modem trough receiver;
• Use ModemVU to load new firmware to the modem
• Transmit/receive GNSS data.
18
®
antenna to Bluetooth antenna connector on the back panel of the
®
wireless technology that allows synchronization between
®
adapter or PCMCA-to-Bluetooth
®
-enabled external device documentation for more detailed connection
®
-enabled external device and your receiver. The default external device
®
module mode is Slave.
+

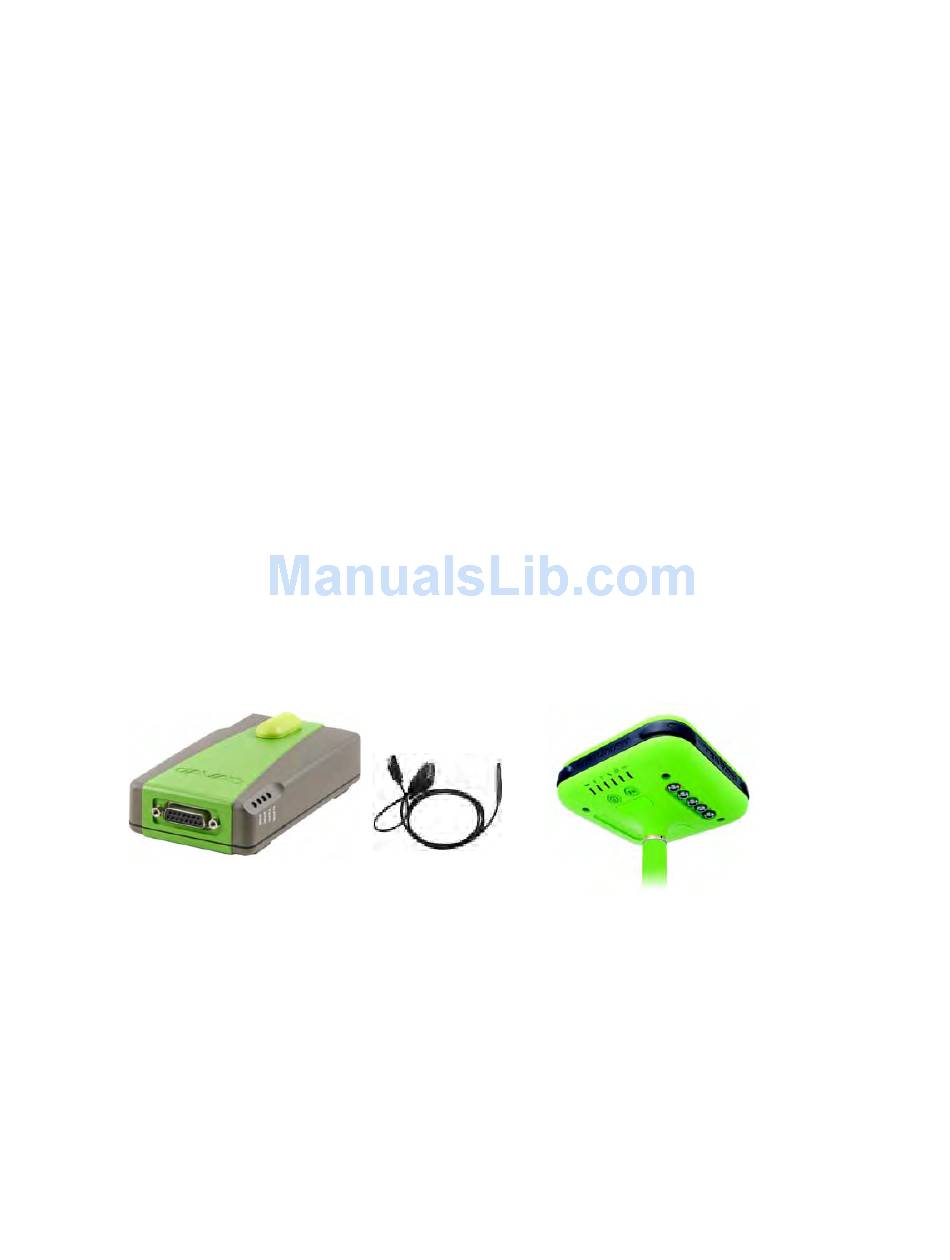

Figure 2-4. Connecting HPT404BT and TRIUMPH-1
®
®
wireless technology; for example, an
+
®
adapter installed, etc.
