1.1. Getting Acquainted
The HPT404BT is a rugged and very powerful external radio transceiver 146 mm wide 75 mm deep 44
mm high, 488 g.
weighs
1.1.1. LEDs
External LED's (see Figure 1-2) are used for Link and Line status indication:
Positio LED
n Name
1 PWR
2 SYNC
3 TX/RX
4 BT

1.1.2. Data and Power Port

The HPT404BT data and power port is placed on the front of the unit (Figure 1-2).
Through the DB15 port the HPT404BT can be connected to PC with Accessory Data-Ser-Pwr Cable,
DB9/DB15/SAE (6ft/1.8m) p/n 14-578108-02, or with JAVAD GNSS receiver with Accessory Data-Ser-
Pwr Cable, ODU-7/DB15/SAE (6ft/1,8m) p/n 14-578110-02 and can be powered. See "Powering
HPT404BT" on page 13 for detailed information.
10
Color
Green Active if Power connected to modem
Red Active whenever a signal with a level sufficient for reliable reception exists on the
radio channel.
Green Active if modem receives or transmits Data over serial interface
Blue Active if modem receives or transmits Data over Bluetooth
Data and
power port

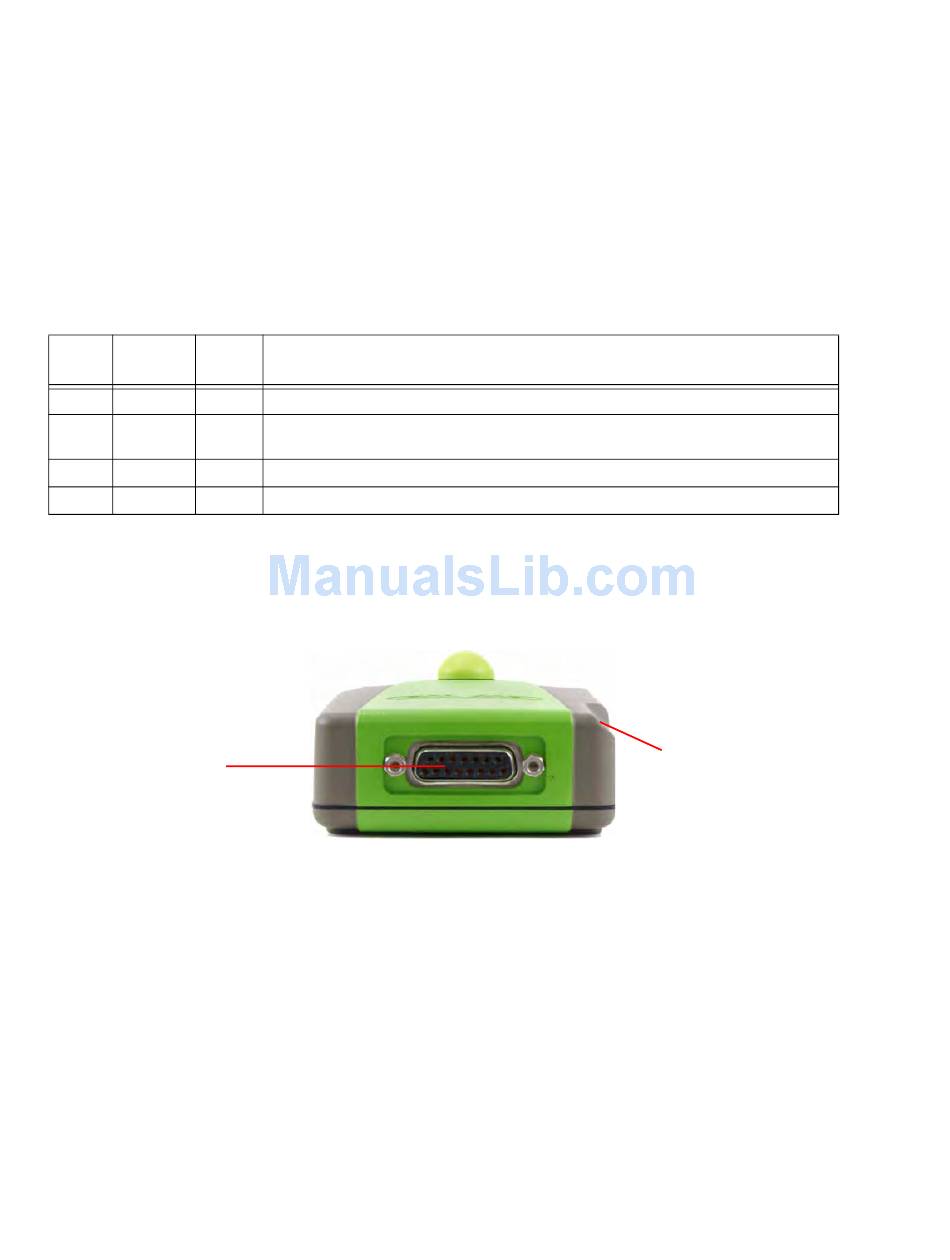

Figure 1-2. HPT404BT front side
Description
LEDs
