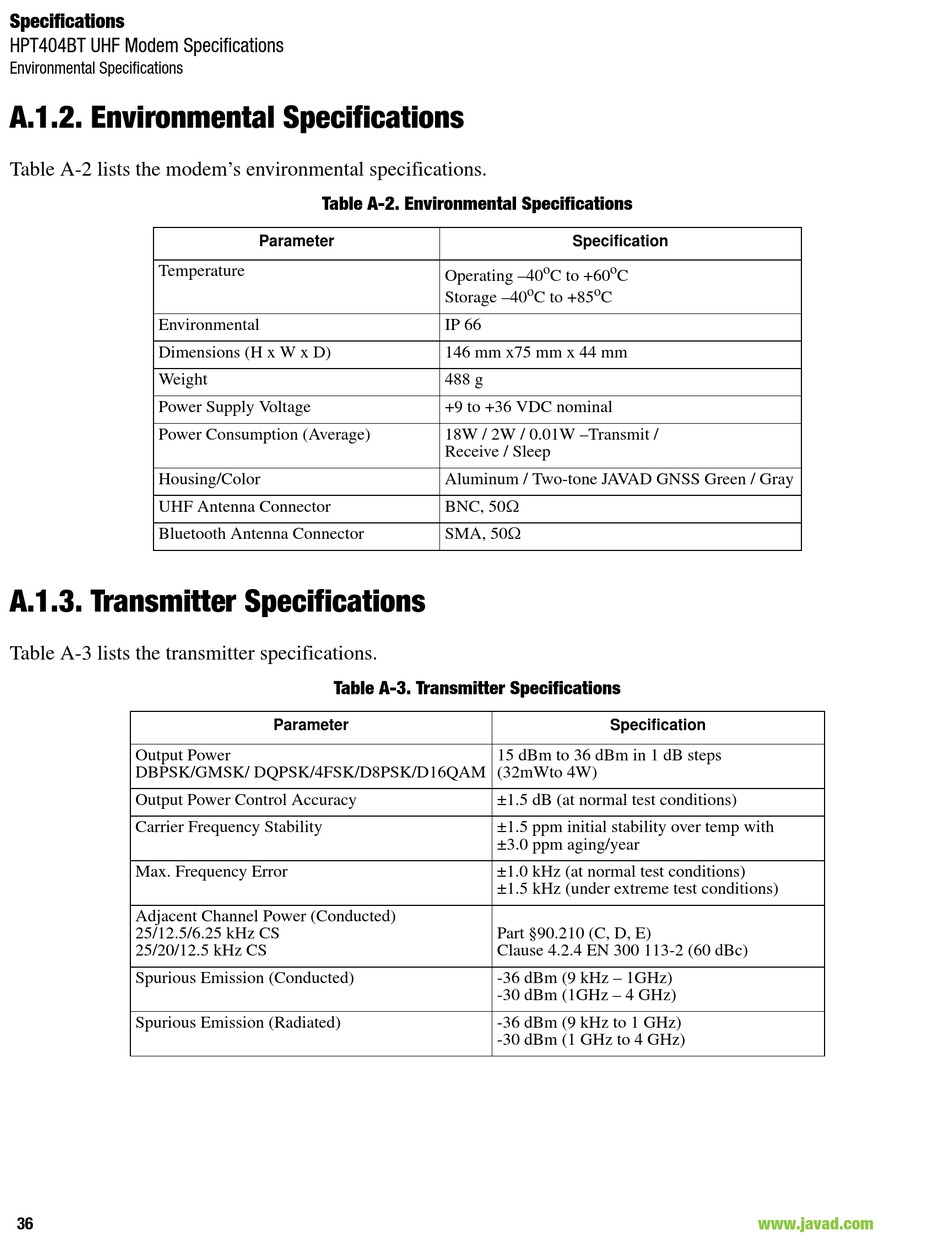

Specifications
HPT404BT UHF Modem Specifications

Environmental Specifications

A.1.2. Environmental Specifications
Table A-2 lists the modem's environmental specifications.
Temperature
Environmental
Dimensions (H x W x D)
Weight
Power Supply Voltage
Power Consumption (Average)
Housing/Color
UHF Antenna Connector
Bluetooth Antenna Connector
A.1.3. Transmitter Specifications
Table A-3 lists the transmitter specifications.
Output Power
DBPSK/GMSK/ DQPSK/4FSK/D8PSK/D16QAM
Output Power Control Accuracy
Carrier Frequency Stability
Max. Frequency Error
Adjacent Channel Power (Conducted)
25/12.5/6.25 kHz CS
25/20/12.5 kHz CS
Spurious Emission (Conducted)
Spurious Emission (Radiated)
36
Table A-2. Environmental Specifications
Parameter
Table A-3. Transmitter Specifications
Parameter
Specification
o o
Operating –40 C to +60 C
o o
Storage –40 C to +85 C
IP 66
146 mm x75 mm x 44 mm
488 g
+9 to +36 VDC nominal
18W / 2W / 0.01W –Transmit /
Receive / Sleep
Aluminum / Two-tone JAVAD GNSS Green / Gray
BNC, 50
SMA, 50
Specification
15 dBm to 36 dBm in 1 dB steps
(32mWto 4W)
±1.5 dB (at normal test conditions)
±1.5 ppm initial stability over temp with
±3.0 ppm aging/year
±1.0 kHz (at normal test conditions)
±1.5 kHz (under extreme test conditions)
Part §90.210 (C, D, E)
Clause 4.2.4 EN 300 113-2 (60 dBc)
-36 dBm (9 kHz – 1GHz)
-30 dBm (1GHz – 4 GHz)
-36 dBm (9 kHz to 1 GHz)
-30 dBm (1 GHz to 4 GHz)
