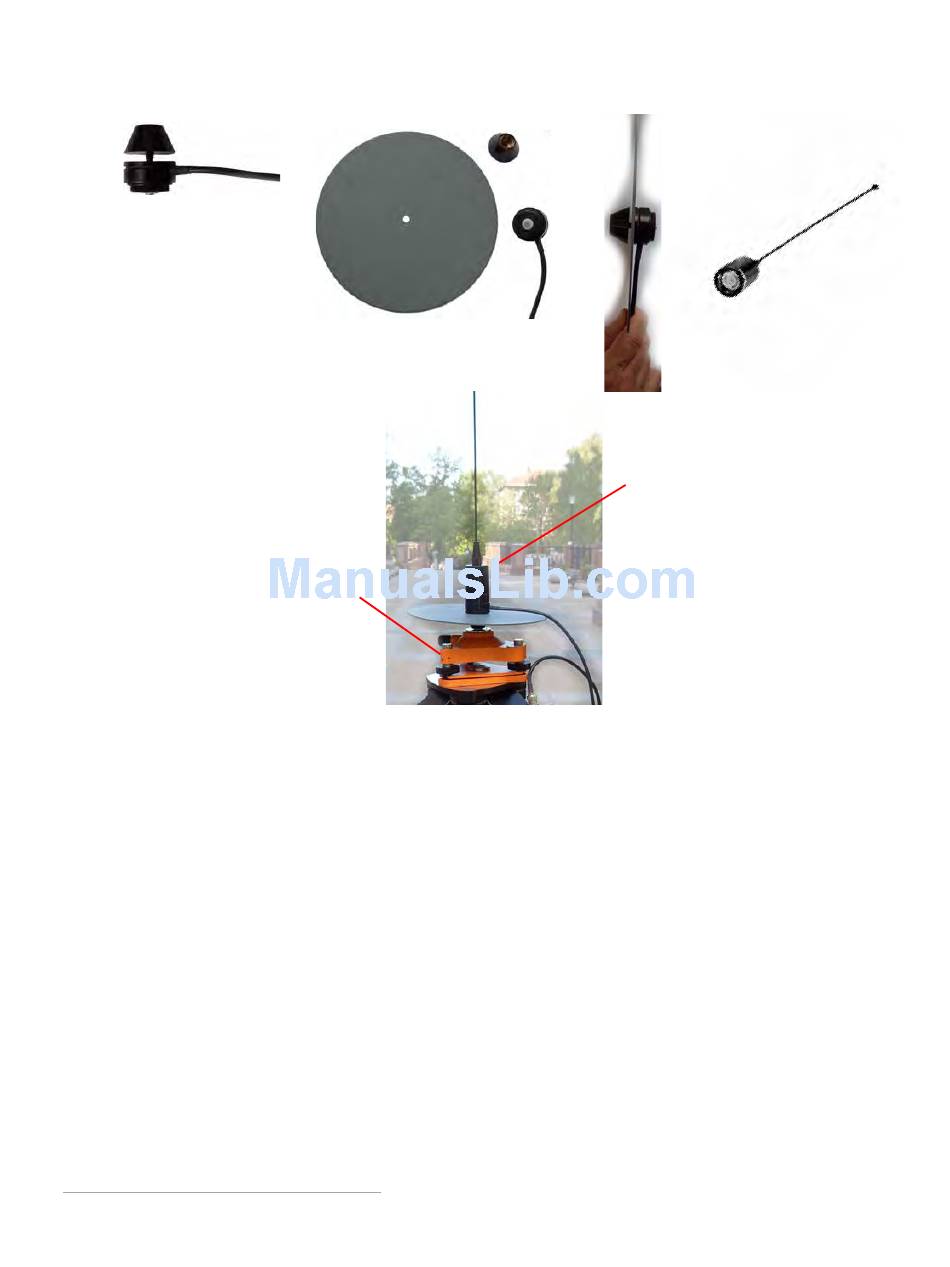

4. Place the antenna on the pole.
1 Unscrew the
cone-shaped cable part
Use coaxial cable and connectors that are impedance-matched with the radio equipment, and make sure
to use the shortest length of cable to move the signal between the radio and the antenna:
• p/n 14-578115-01 Accessory UHF Ant Cable BNC/Magn Mount, 12ft
• p/n 14-578116-01 Accessory UHF Ant Cable BNC/Mini-Magn Mount, 12ft
• p/n 14-578117-01 Accessory UHF Ant Cable BNC/Pole Mount, 12ft
1. For this type of antenna a metal surface, e.g. car's roof, serves as ground plane.
