1.1.3. External Antenna and Bluetooth Antenna Connectors

The external antenna connects to the BNC external antenna connector and Bluetooth antenna connects to
the SMA connector which are placed on the back panel of HPT404BT.

1.1.4. Mounting Bracket

The mounting bracket (Figure 1-4) connects the modem to a standard pole/adapter (Figure 1-4).

1.1.5. Cables

The HPT404BT package includes standard communication and power cables for configuring the modem
and providing a power source to the modem.
Accessory Data-Ser-Pwr Cable, DB9/DB15/SAE
(6ft/1.8m)
p/n 14-578108-02
Accessory Data-Ser-Pwr Cable, ODU-7/DB15/SAE
(1,8m)
p/n 14-578110-02
www.javad.com
Bluetooth
Antenna

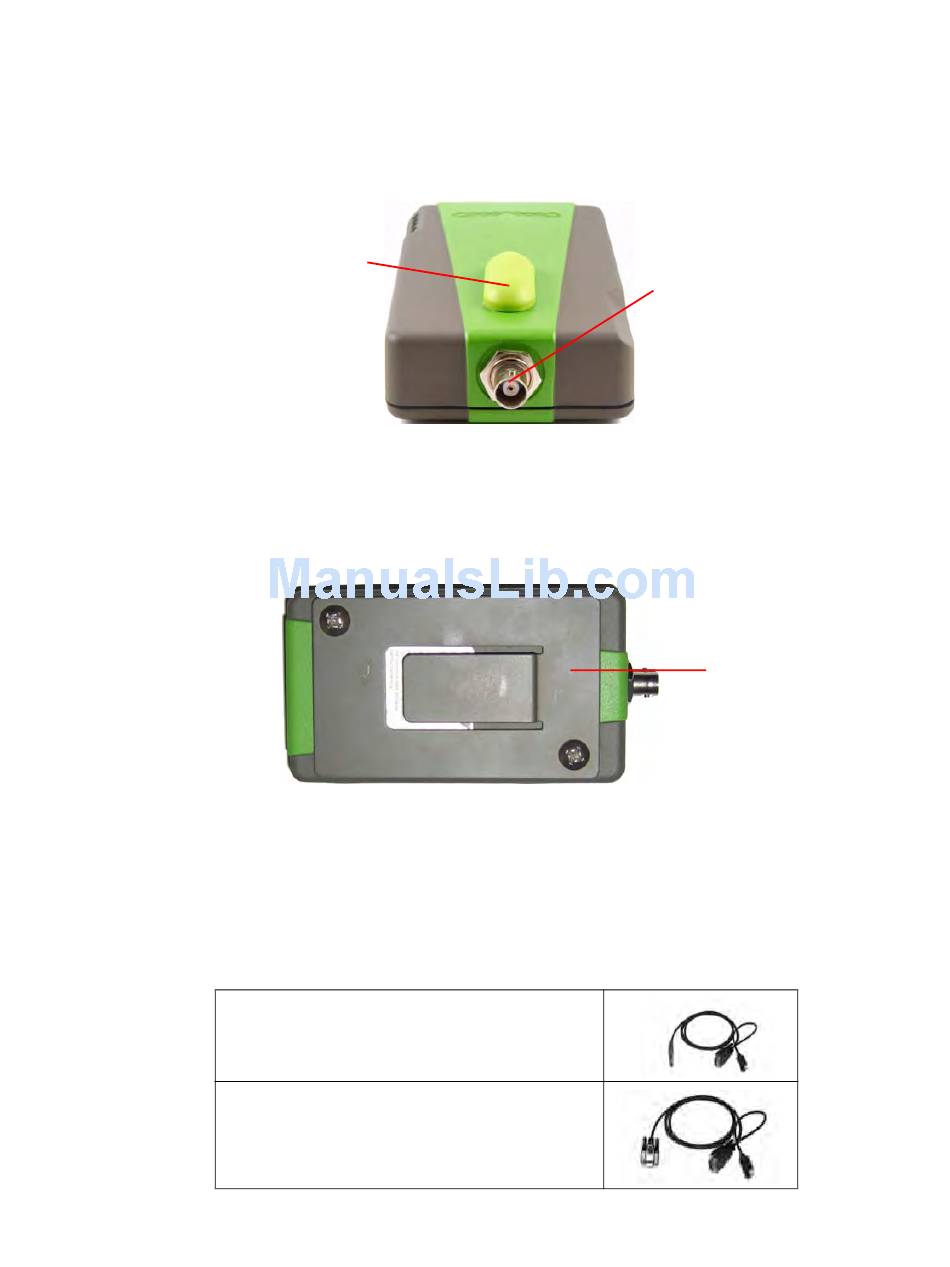

Figure 1-3. External and Bluetooth Antenna Connectors
Figure 1-4. Mounting Bracket
External Antenna and Bluetooth Antenna Connectors
External
Antenna
Mounting
Bracket
