1.1. Getting Acquainted
The HPT102 is a rugged and very powerful external radio transceiver 146 mm wide 75 mm deep
44 mm high, 488 g.
weighs
1.1.1. LEDs
External LED's (see Figure 1-2) are used for Link and Line status indication:
Position LED Name Color
1 PWR Green
2 SYNC Red
3 TX/RX Green
4 ALARM Red

1.1.2. Data and Power Port

The HPT102 data and power port (DB15 connector) s placed on the front of the unit (Figure 1-2).
Data and
Power port
Through the DB15 port the HPT102 can be connected to PC with Access Data-Ser-Pwr Cable,
DB9/DB15/SAE (6ft/1.8m) p/n 14-578108-02, or with JAVAD GNSS receiver with Access Data-
Ser-Pwr Cable, ODU-7/DB15/SAE (6ft/1,8m) p/n 14-578110-02 and can be powered. See
"Powering HPT 102" on page 17 for detailed information.
14
Active if Power connected to modem
Active whenever a signal with a level exceeding the level required for reception
exists on the radio channel (min. light on 200ms).
Active if modem receives or transmits Data over serial interface (min. light on
200ms)
Reserved

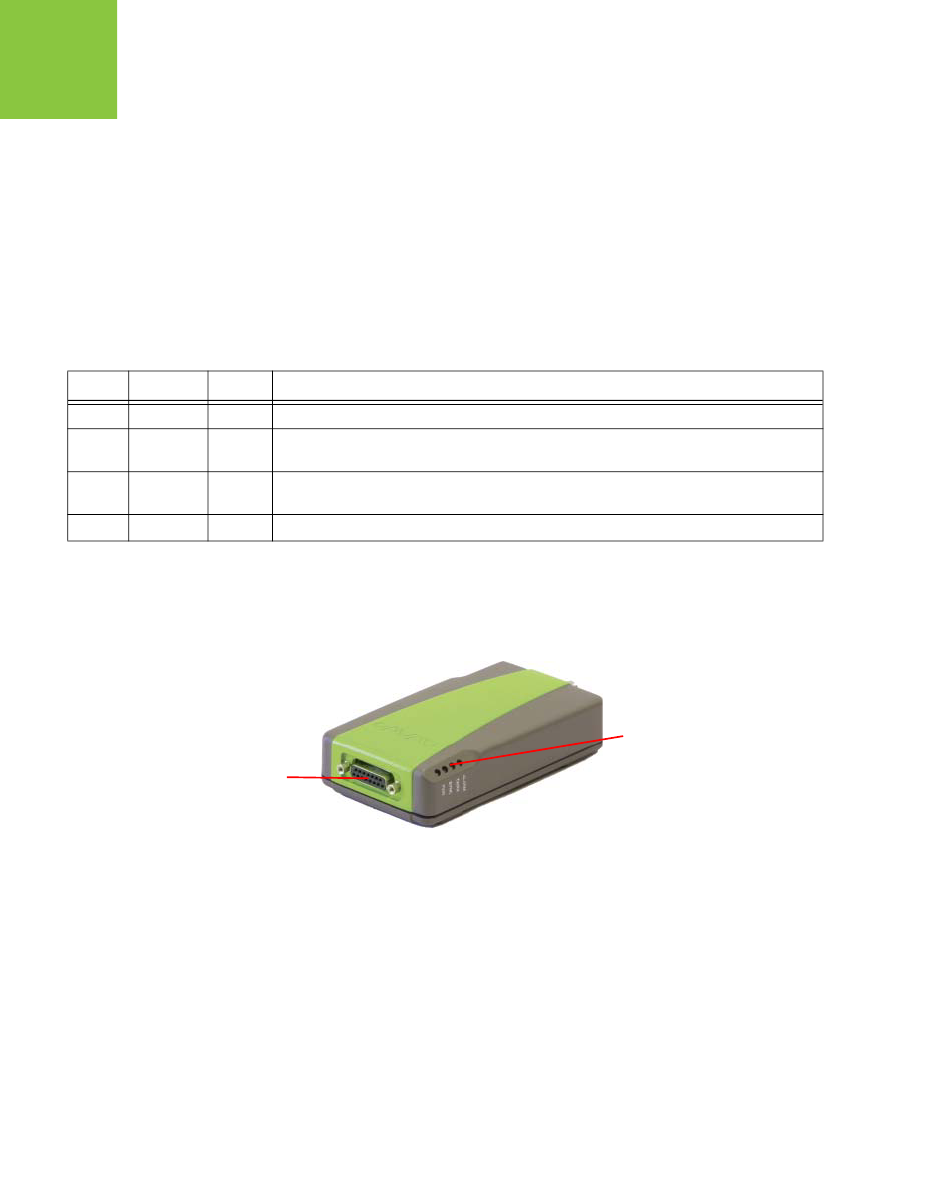

Figure 1-2. HPT102 front side
Description
LEDs
