Introduction

Getting Acquainted

LEDs

1.1. Getting Acquainted
The HPT435 is a rugged and very powerful external radio transceiver 152 mm wide 84 mm deep
72 mm high, 900 g.
weighs
1.1.1. LEDs
External LED's (see Figure 1-2) are used for Link and Line status indication:
Position LED Name Color
1 PWR Green
2 SYNC Red
3 TX/RX Green
4 ALARM Red

1.1.2. Data and Power Ports

The HPT435 data and power port are placed on the front of the unit (Figure 1-2).
Data port
Power port
Through the data port the HPT435 can be connected to PC with Data-Ser Cable, DB9/DB15 (6ft/
1.8m), or with JAVAD GNSS receiver with Data-Ser Cable, ODU-7/DB15 (6ft/1.8m).
Through the power port the HPT435 can be powered. See "Powering HPT 435" on page 15 for
detailed information.
12
Active if Power connected to modem
Active whenever a signal with a level exceeding the level required for reception
exists on the radio channel (min. light on 200ms).
Active if modem receives or transmits Data over serial interface (min. light on
200ms)
Reserved

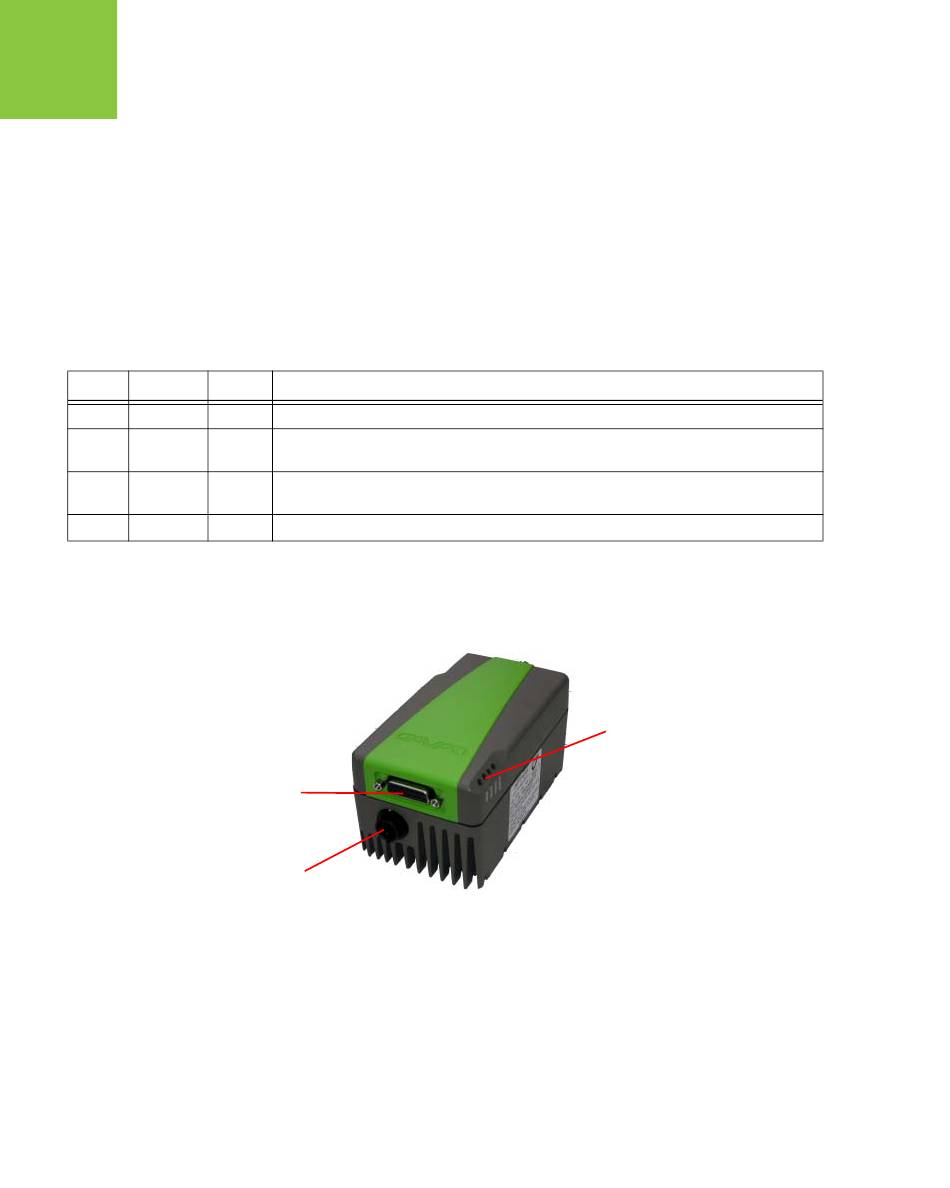

Figure 1-2. HPT435 front side
Description
LEDs
