Radar

Ú Note:
Radar is available if the unit has a Radar connection on
the back.
The radar panel can be set up as a full screen view or combined
with other panels.
The radar image can also be displayed as an overlay on a chart
panel. For more information, see "Chart overlay" on page 40.
Ú Note:
Radar overlay requires data from a heading sensor or
compass to ensure proper orientation with the chart.

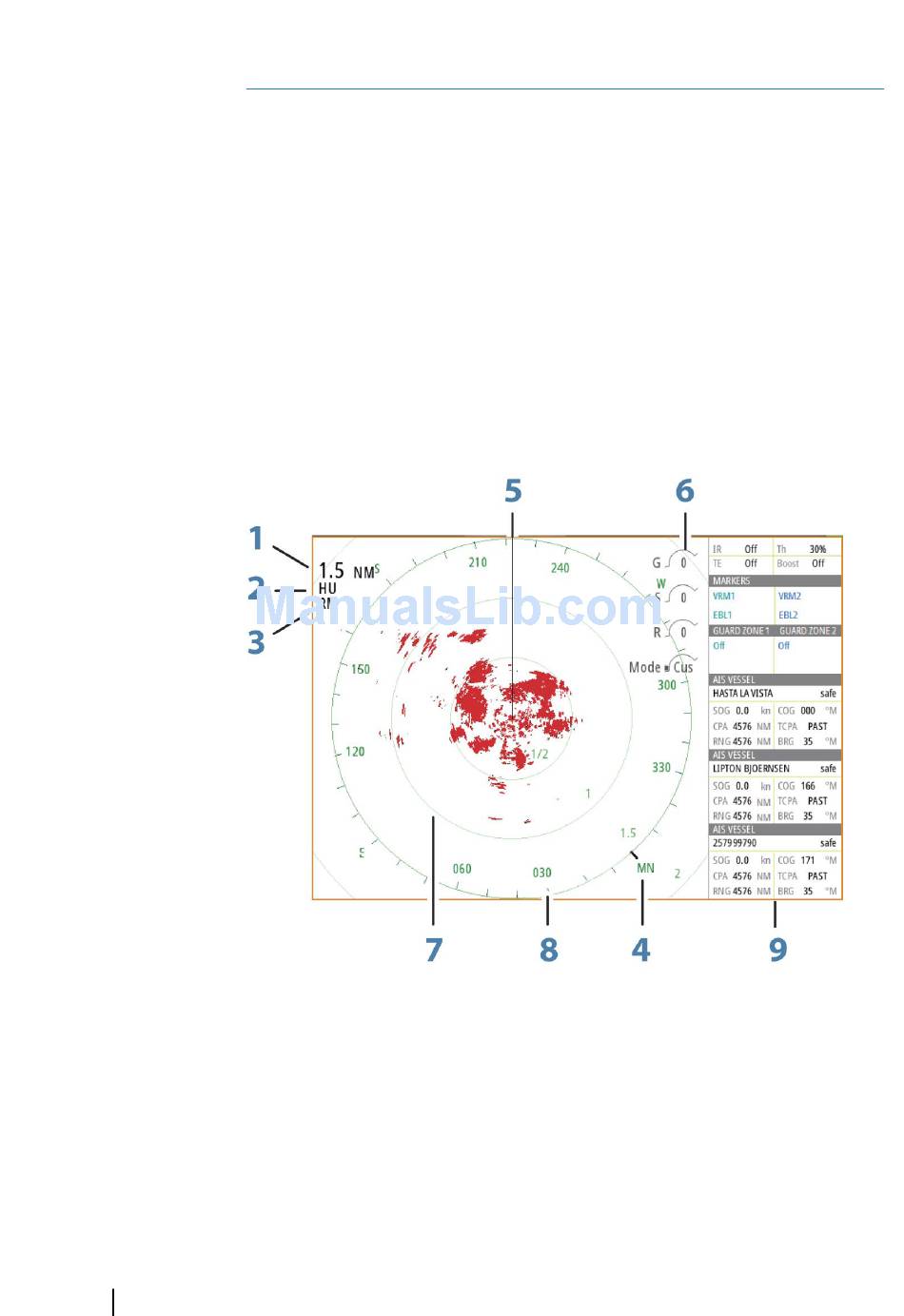

The radar panel

1
Range
2
Orientation
3
Motion
4
Compass*
5
Heading line*
6
Rotary controls
