5 Man Over Board (MOB) button
Select to save a Man Over Board (MOB) waypoint at the
current vessel position.

Application pages

Each application connected to the system is presented on panels.
The application can be presented as a full page, or in combination
with other panels in a multiple panel page.
All application pages are accessed from the Home page.

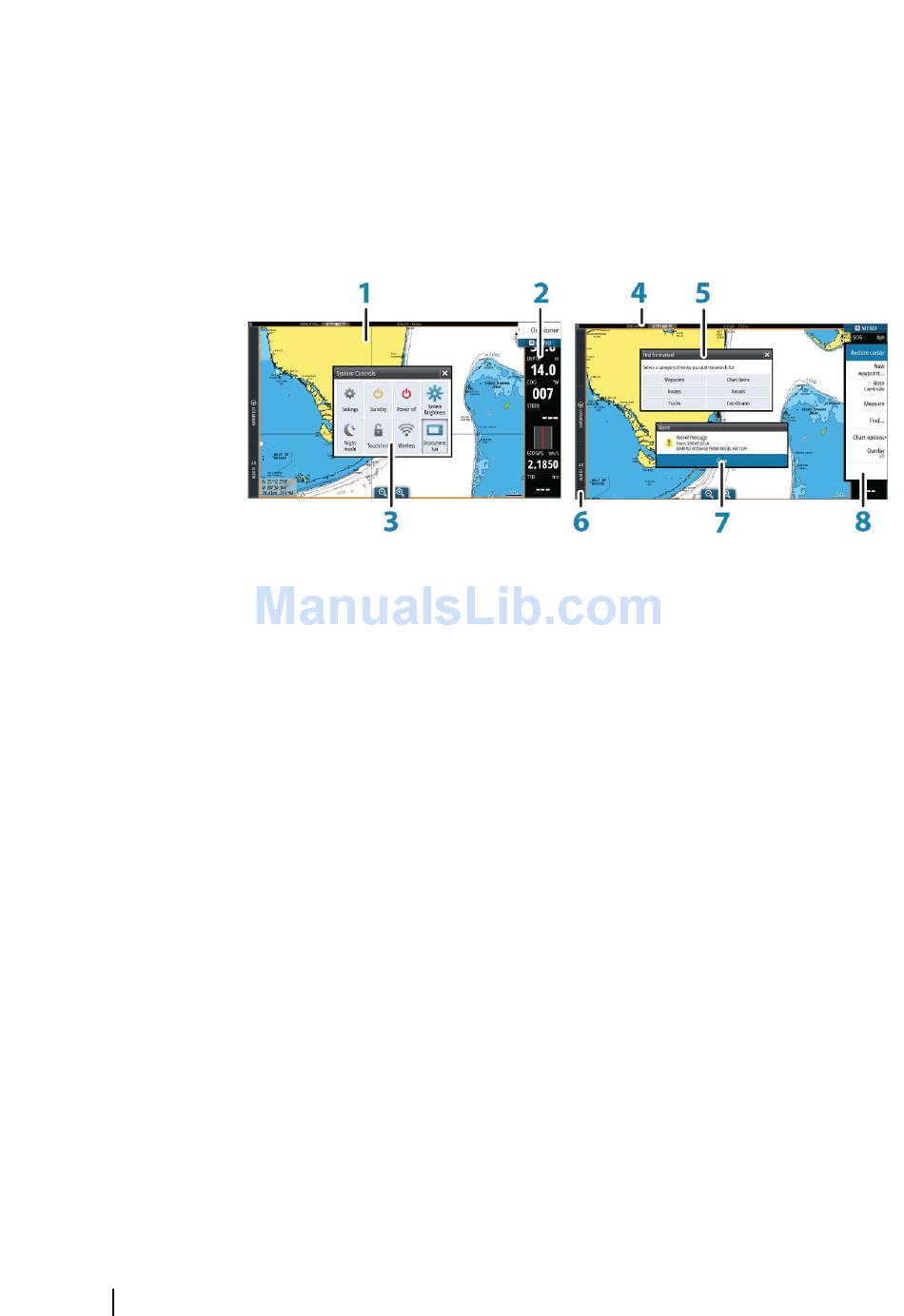

1 Application panel
2 Instrument bar
Navigation and sensor information. The bar can be turned
off and it can be configured by the user.
3 System controls dialog
Quick access to basic system settings.
Display the dialog by a short press on the Power key or by
swiping down from top of the screen.
4 Status bar
5 Dialog
Information to or input from the user.
6 Control bar
Select a feature button to display controls for it.
7 Alarm message
Displayed if dangerous situations or system faults occur.
