Echosounder

The Echosounder function provides a view of the water and bottom
beneath your vessel, allowing you to detect fish and examine the
structure of the sea floor.

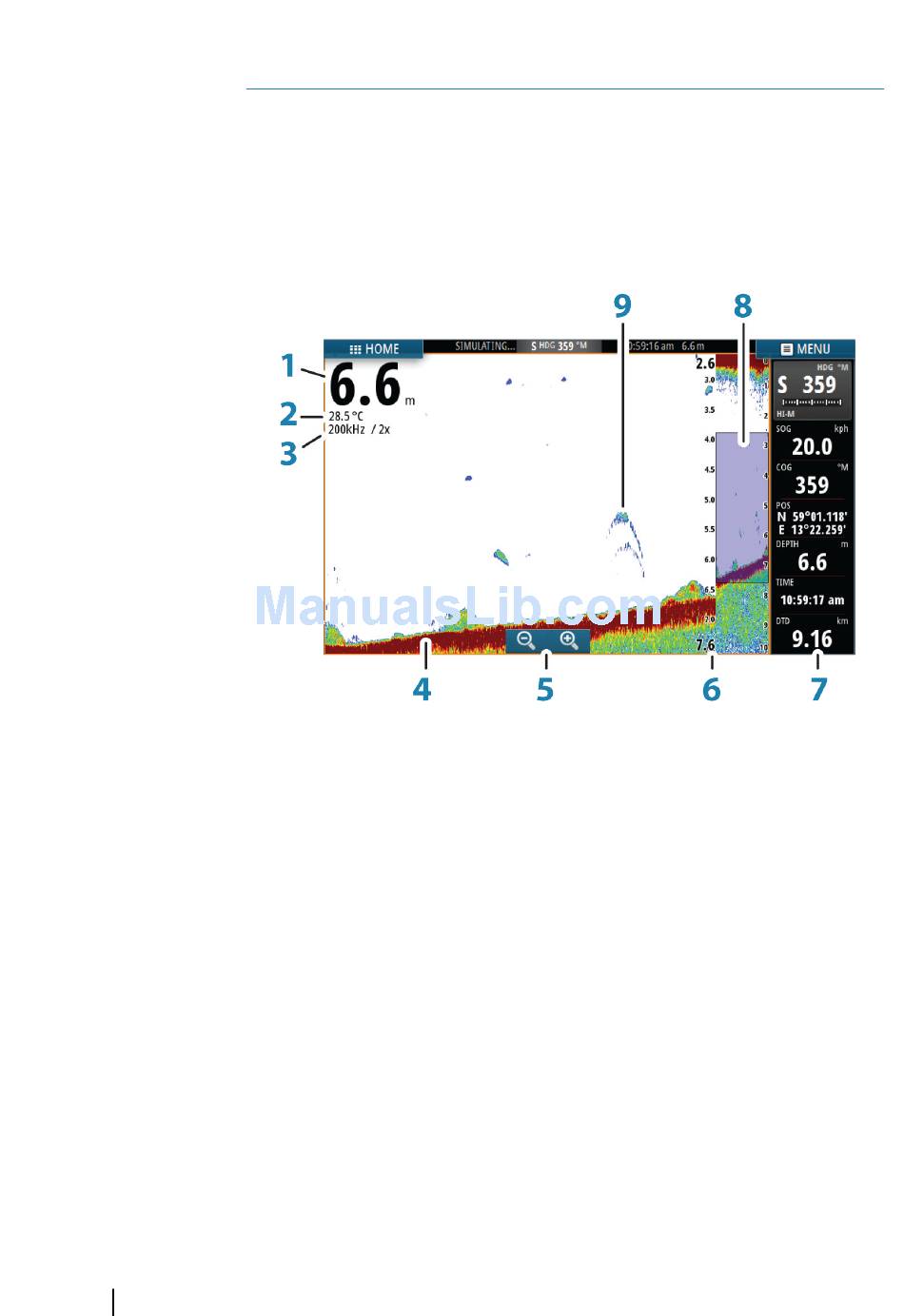

The Echosounder image

1
Depth
2
Temperature
3
Frequency and Zoom scale
4
Bottom
5
Zoom buttons
6
Depth range scale
7
Instrument panel
8
Zoom column
9
Fish arches
