Front Panel Components

USB Slot

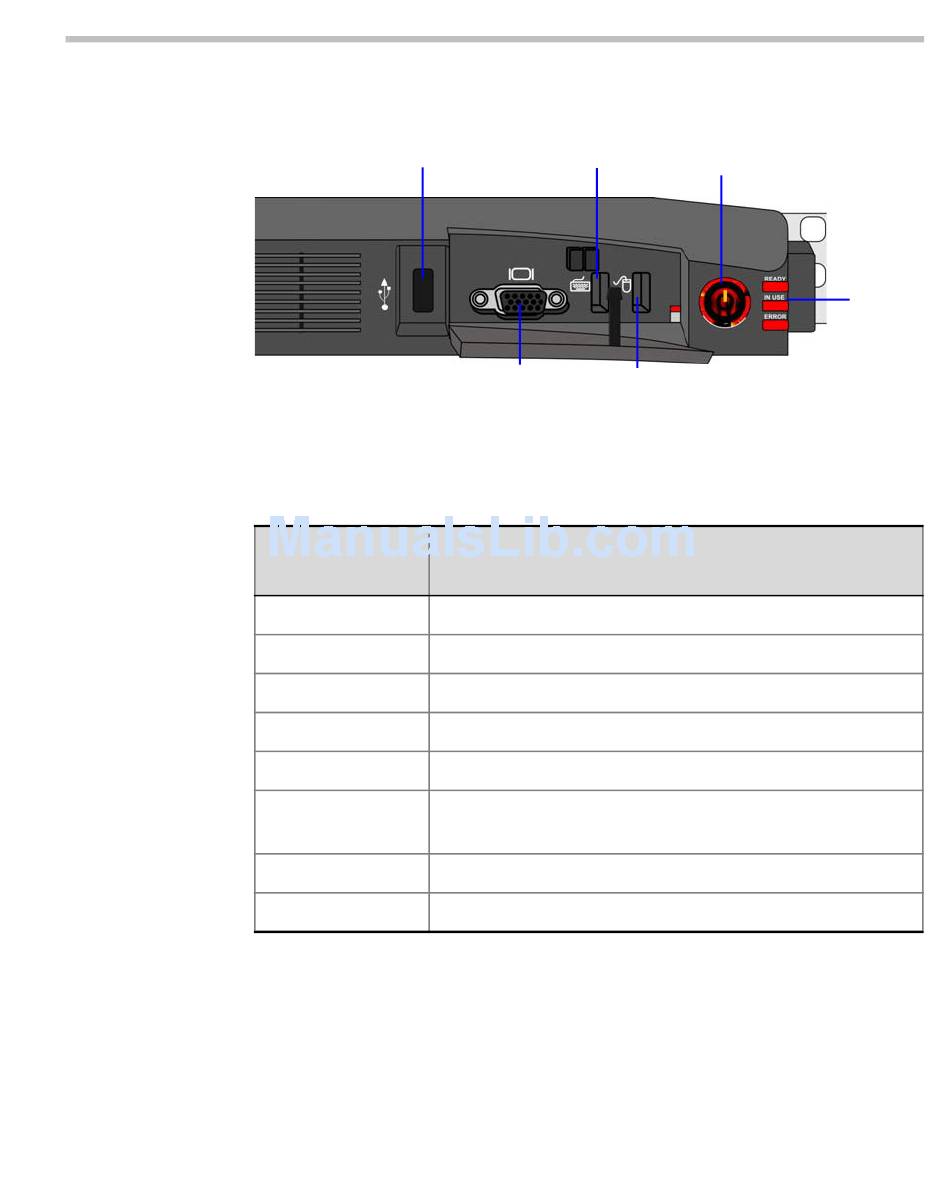

Figure 1-2 RMX 1500 Front Panel
Table 1-4 Polycom RMX 1500 Front Panel Description
SLOT/Button/
LED
USB Slot
VGA Slot
Keyboard Slot
Mouse Slot
ON/OFF Button

READY Led

IN USE Led

ERROR Led

Keyboard Slot
VGA Slot
Mouse slot
Description
USB key connection, used for First time configuration.
Monitor connection.
Keyboard connection.
Mouse connection.
Turn the RMX ON or OFF.
Orange - RMX Starting up.
Green - RMX ready/online.
Amber - In use, when a conference is active.
Red - Error.
Polycom RMX 1500 Hardware Guide
ON/OFF
button
Front
LEDs
1-11
