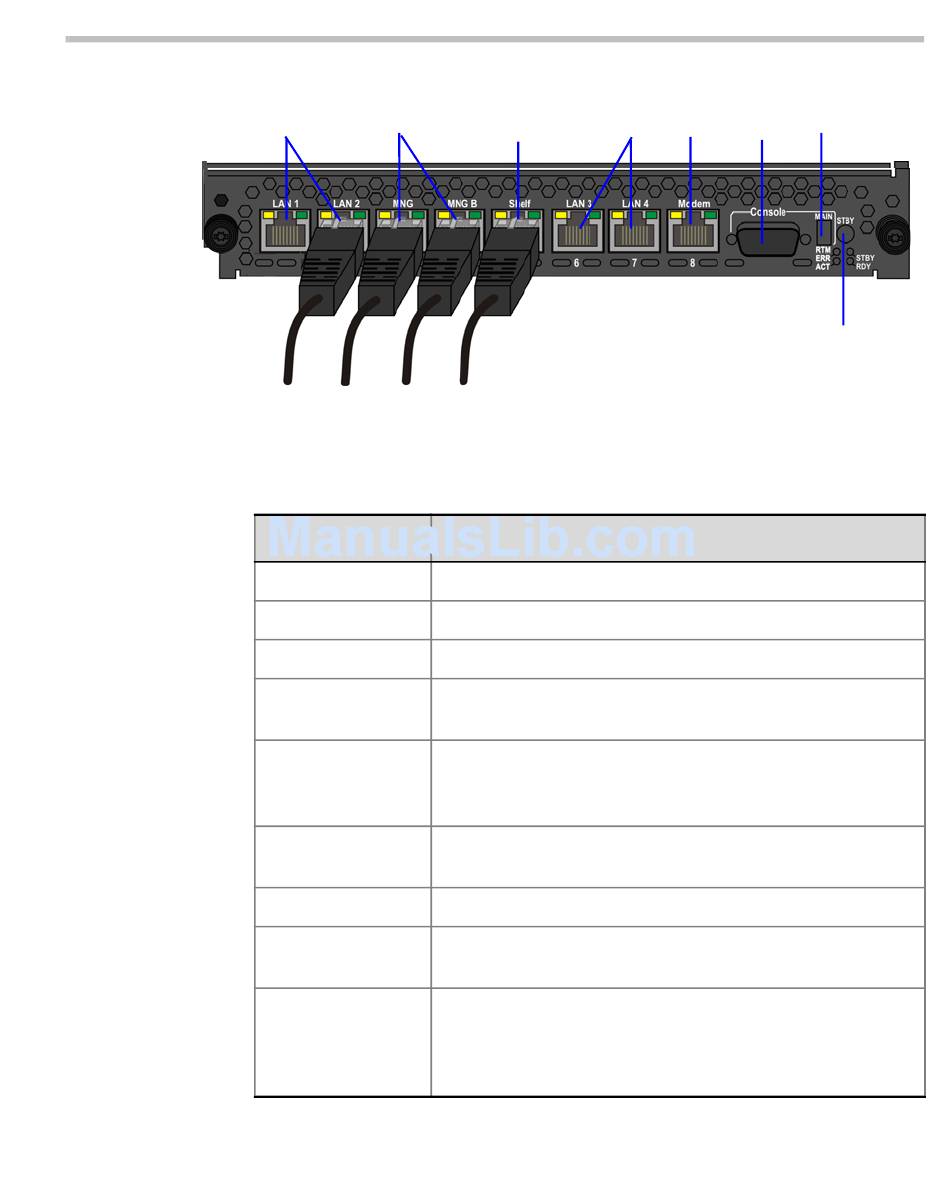

Figure 1-3 RMX 1500 RTM IP Rear Panel Layout
The following items appear on the RMX 1500 rear panel:
Table 1-5 RMX 1500 Rear Panel - RTM IP 1500 Component Description
Item
LAN 1 port
LAN 2 port
MNG port
MNGB
LAN 3/4 ports
Shelf (Manager)
port
Modem port
Serial (RS 232)
port
MAIN/RTM
Shelf NA
connection
LAN3, LAN 4 and the Serial
ports are only for debugging and not
for customer use
Description
Not Available (NA).
LAN (Media) Connection. 1 Media IP address is available.
Signaling connection.
Management connection for Web Client and RMX
Manager.
Not Available (NA).
Note: LAN 3/4 are covered with a plastic cap that should
not be removed.
(Optional) Shelf Manager connection.
Internal IP connection, for debugging purposes only.
For debugging purposes only. Enables print-outs of
various LOGs from RTM IP 1500 and Card Manager.
Selection of the connection type for the RS-232 Port.
When the switch is up - the serial port connects to the
MPMx card.
When the switch is down, connects to the RTM IP.
