Viewing the H.323 Activity Monitor

The call could not be established because the system already is at the maxi-
mum allowed bandwidth.
• "Received admission reject"
The call was terminated because an admission reject was received from the
gatekeeper.
• "Received disengage request"
The call was terminated because the endpoint requested to tear down the call.
• "Received invalid data"
The call could not be established because the system received invalid data on
the signaling channel.
• "Cannot find client"
The call could not be established because the called client could not be found.
To configure the H.323 Activity Monitor, use the following steps:
5. Using the configuration graphical user interface, from the Configuration
Menu on the left-hand side, click VoIP.

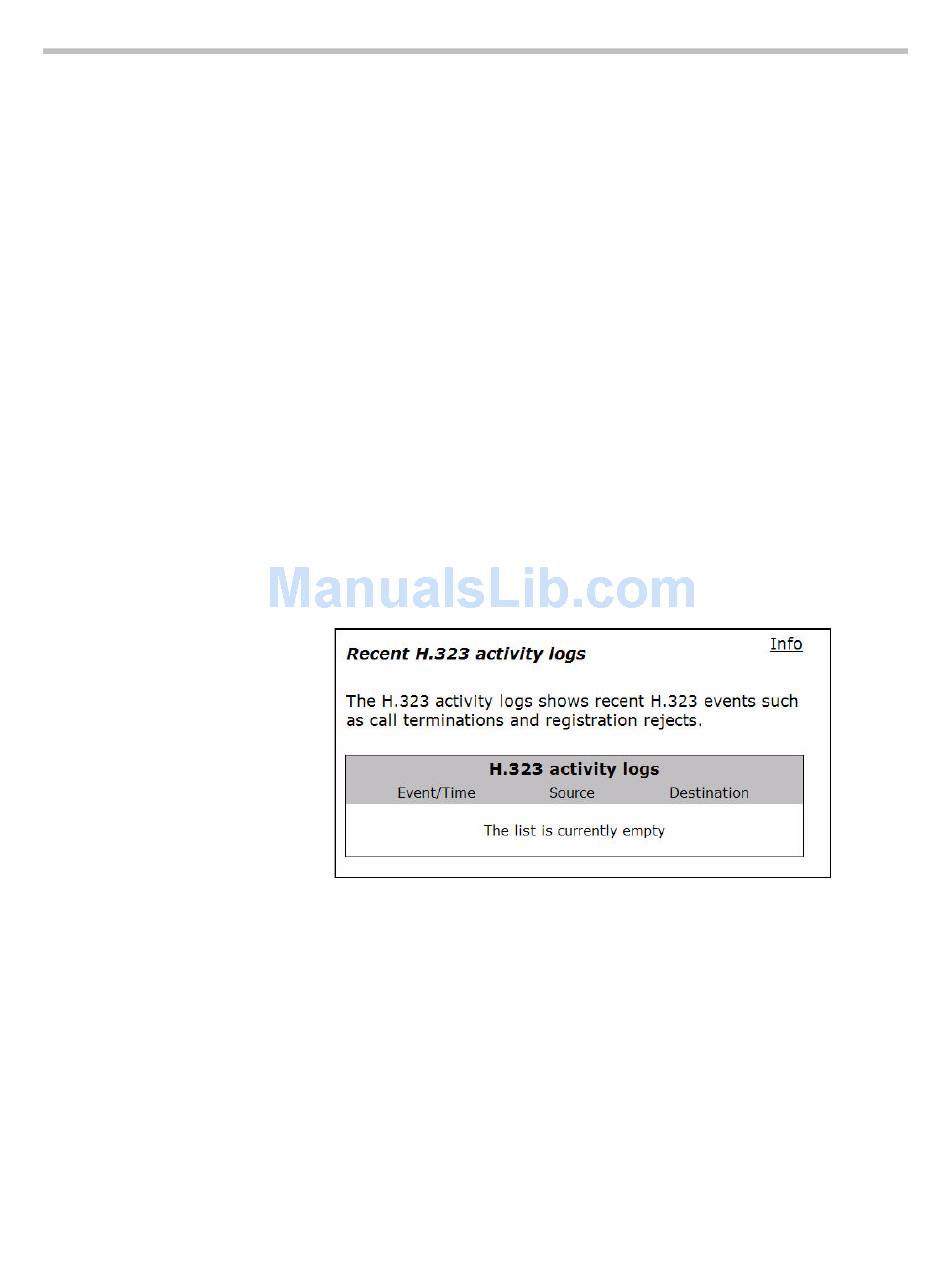

6. Click H.323 Activity. The window shown below opens.
2. On this screen, the event list contains three columns:
— The Event/Time field - shows the type of event and the time that it
occurred.
— The Source field - shows the source of the event as an IP address and
an alias (when available).
— The Destination field - shows the destination of the event as an IP
address and an alias (when available).
Configuring the V2IU 4350
3 - 55
