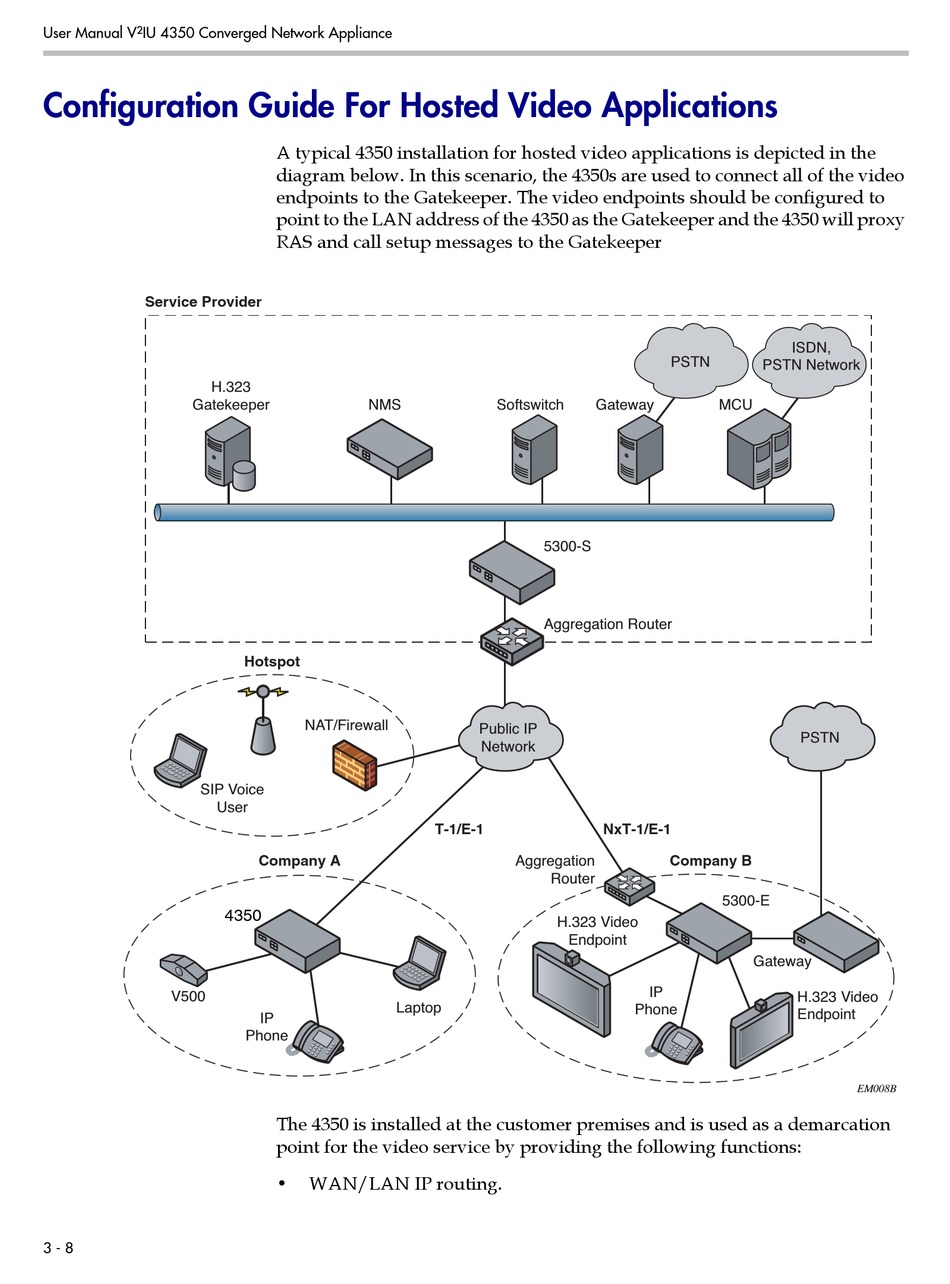

A typical 4350 installation for hosted video applications is depicted in the
diagram below. In this scenario, the 4350s are used to connect all of the video
endpoints to the Gatekeeper. The video endpoints should be configured to
point to the LAN address of the 4350 as the Gatekeeper and the 4350 will proxy
RAS and call setup messages to the Gatekeeper
NMS
Hotspot
NAT/Firewall
Company A
4350
Laptop
IP
Phone
The 4350 is installed at the customer premises and is used as a demarcation
point for the video service by providing the following functions:
