Installation Guide
Elise3
Flashing patterns

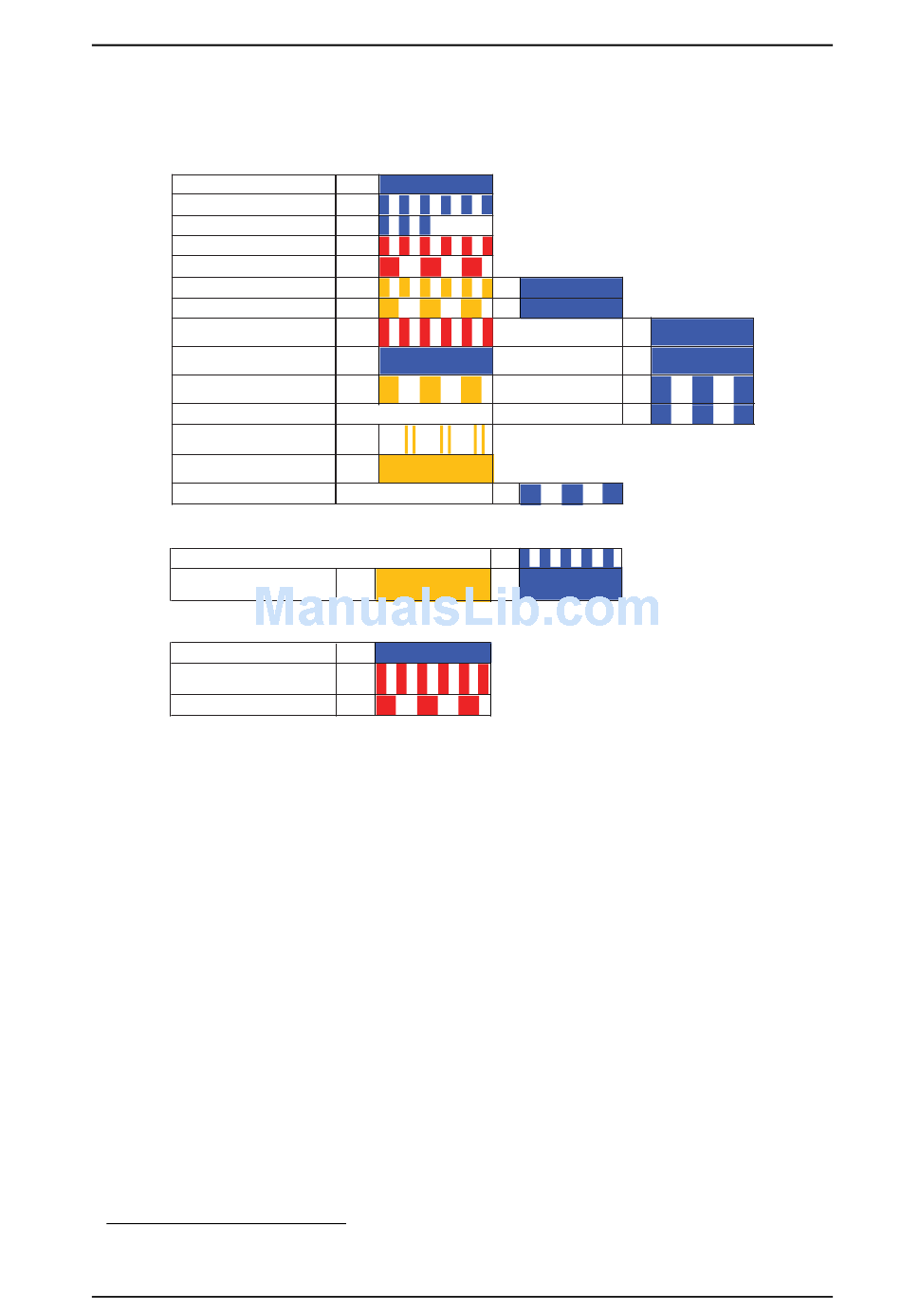

Figure 4. LED indications
Status OK
Starting up/shutting down
Feedback (1 sec.)
Error/fault
Warning
Boot mode
Demonstation mode
Active module during
synchronization
Active module synchronized
Standby module during
synchronization
Standby module synchronized
Waiting for automatic
startup (1 min.)
Troubleshoot mode and
during firmware upgrade
Mass storage mode
Secured settings
Indicates that manual confirmation is required
Confirmation is done and settings
can be activated
Power
Power OK
Closing down caused by
low voltage
Low voltage*
* also used if the Power parameter conflicts with the actual setup.
3.4

Operating Mode

Besides normal operation the Elise3 can be operated in three other modes, that is, Boot
Mode, Demonstration Mode and Troubleshoot Mode.
3.4.1 Normal Operation
All configuration and settings for the Elise3's software, such as maintenance, software
upgrade and troubleshooting, are performed in the web user interface described in the
product's user documentation.
3.4.2 Boot Mode
If the software cannot be accessed, the Elise3 can be set in Boot Mode from the web user
interface. From this interface, it is possible to install new software, start Troubleshoot Mode,
see settings and to reset the module back to factory default settings
Placing the Elise3 in Boot Mode is performed manually by the user but if the Elise3 detects
several major errors the module can place itself in Boot Mode.
See 5. Working in Boot Mode
1. Network settings such (IP address, Host name, etc.) will not be changed when resetting back to factory default.
22 November 2013 / Ver. G
3. Description
Status LED
Blue
Blue
Blue
Red
Red
Yellow Blue
Yellow Blue
Red
Blue
Yellow
Yellow
Yellow
Blue
Status LED
Blue
Yellow
Blue
Power LED
Blue
Red
Red
on page 27.
Mode LED
Power LED
Blue
Blue
Blue
Blue
Mode LED
1
.
TD 92679EN
