Strain Reliefs and Warning Labels for Medical Devices

For medical device gateways such as Ascom Cardiomax, Ascom Mobile Monitoring Gateway
(MMG), and for installations requiring seismic considerations; cable strain reliefs and
warning labels must be used. Cable ties, anchors, 8 mm (0.31 in) screws, and warning labels
are included in the delivery in a separate package (Item. No. 902987). Strain reliefs ensure
that the cables do not come off and the unit does not shut down unintentionally.
1 Fasten two anchors on the left rear side and two anchors on the right rear side of the
Elise3 using 5 mm (0.20 in) screws. If an assembly bracket is used for double
modules, use 8 mm (0.31 in) screws and fasten the anchors on the assembly bracket.
2 Make sure that all cables are connected to their final positions.
3 Attach the cable ties to the cables as shown in the figures below.

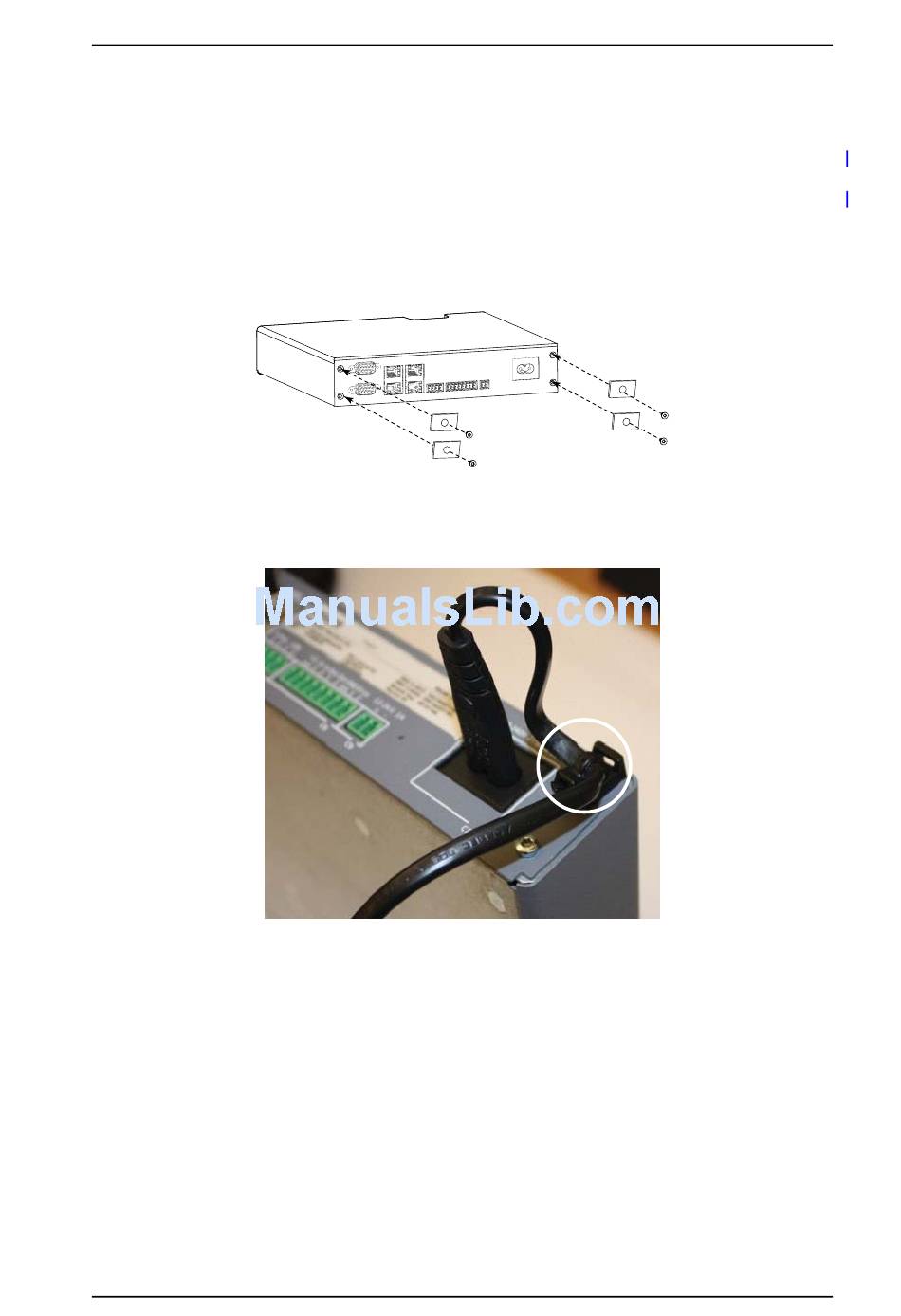

Figure 13. Cable tie on the power supply side
