Installation Guide
Elise3
1

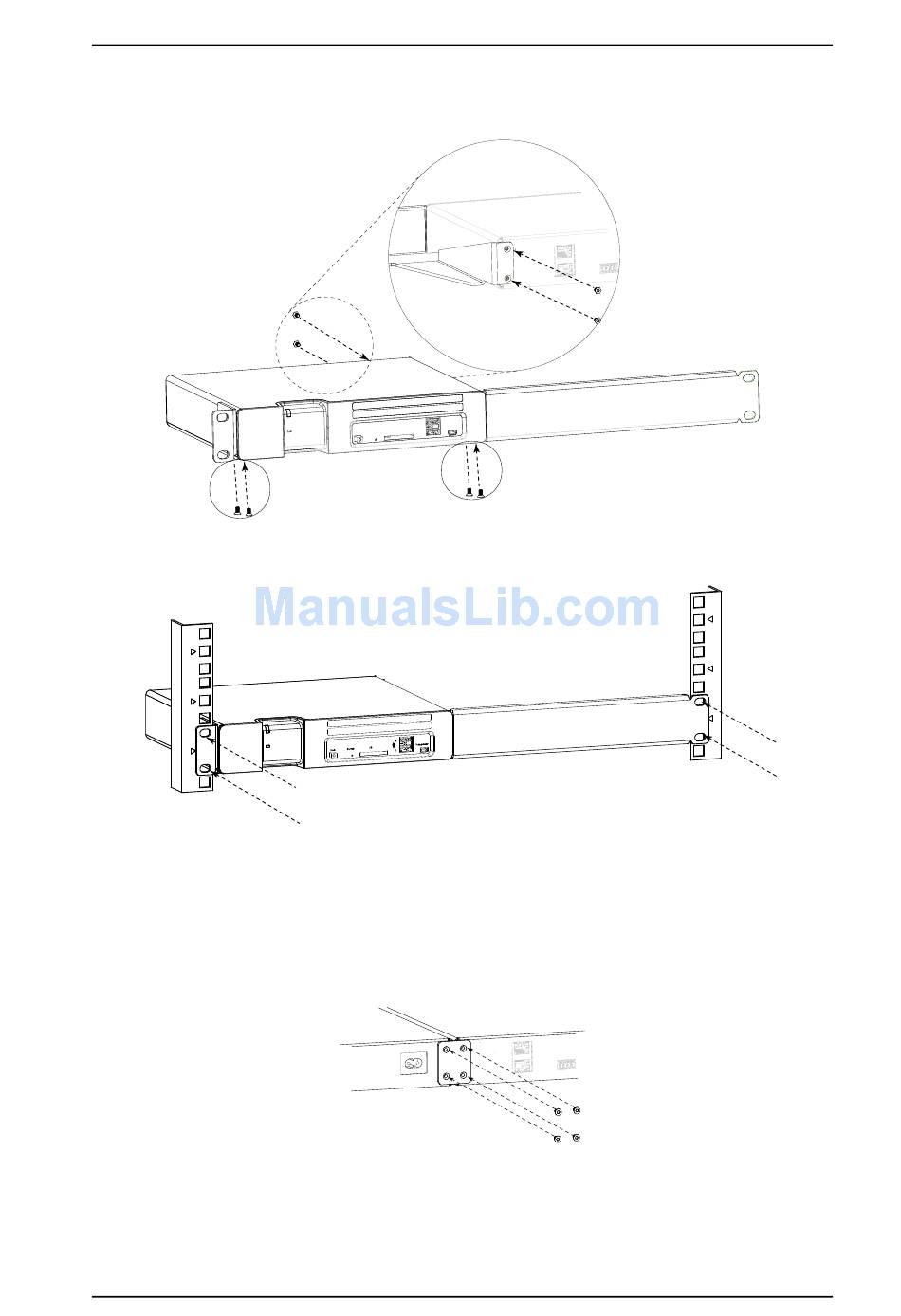

Fasten the big assembly bracket on the right side of the Elise3 and the small
assembly brackets on the left side, as shown in the figure below.
2
Fasten the assembly brackets in the rack as shown in the figure below (screws not
included).
Front mounted double
Front mounting of double Elise3 requires the standard 19" rack kit.
1
Use the supplied assembly brackets and fasten the two Elise3 together, both on the
rear side and on the bottom side, as shown in the figures below.
22 November 2013 / Ver. G
