4.5 Accessing Elise3 - ASCOM Elise3 Lite Installation Manual

Installation Guide
Elise3

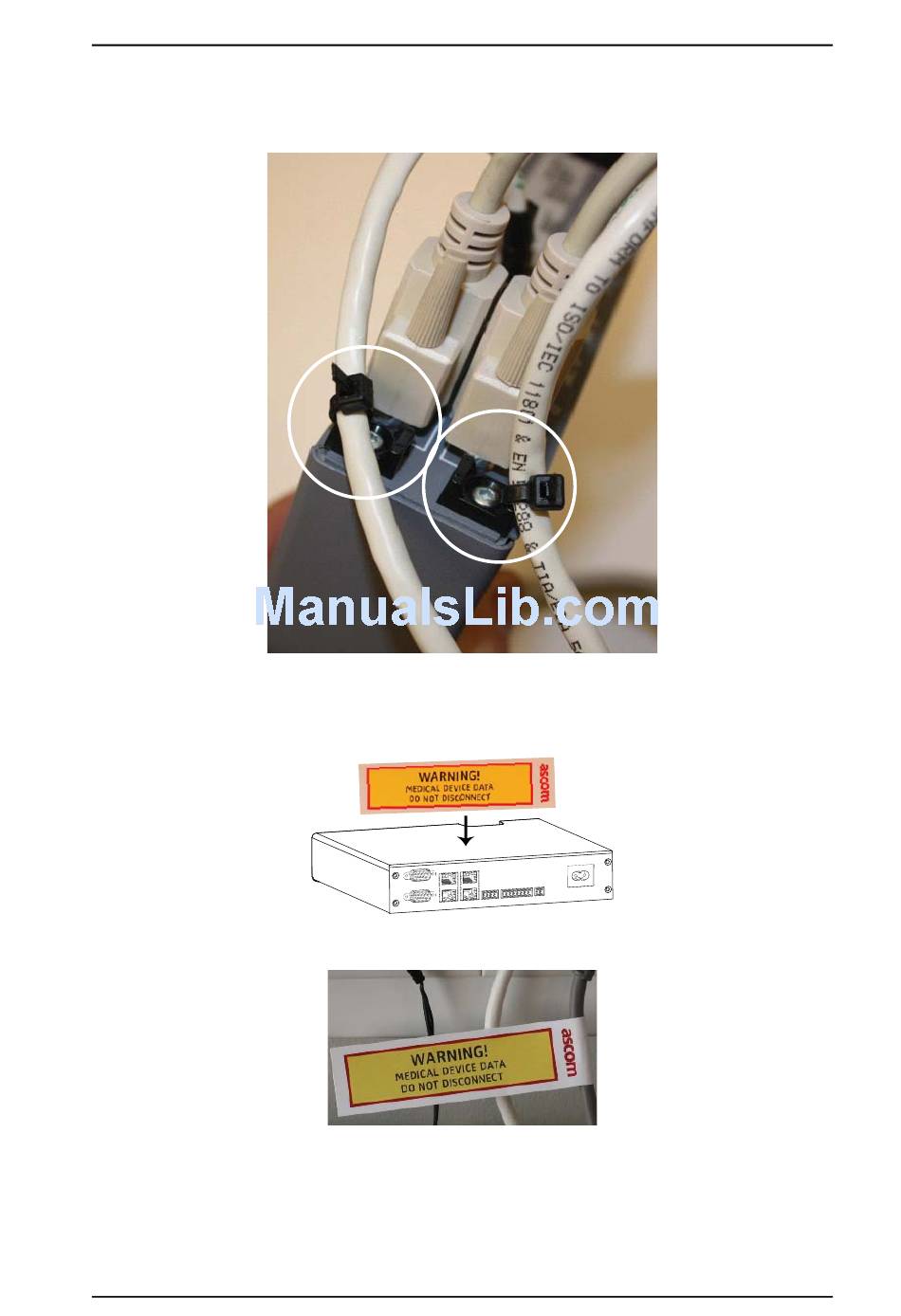

Figure 14. Cable ties on the network cable side
4 Put a warning label on the top side of Elise3, and put warning labels on the cables
close to the wall socket as shown in the figures below.
Figure 15. Label for medical devices
Figure 16. Label for cables connected to medical devices

4.5 Accessing Elise3

The Elise3 can be accessed either via an IP network or directly via the management port
(mini-USB). A web browser is used for accessing the product´s web interface.
22 November 2013 / Ver. G
4. Installation and Configuration
TD 92679EN
20
