Installation Guide
Elise3
5.1.2
Network Settings
Under System > Network the network settings are shown. All network settings can be
edited in this view if DHCP is disabled, but only the Host name if DHCP is enabled.

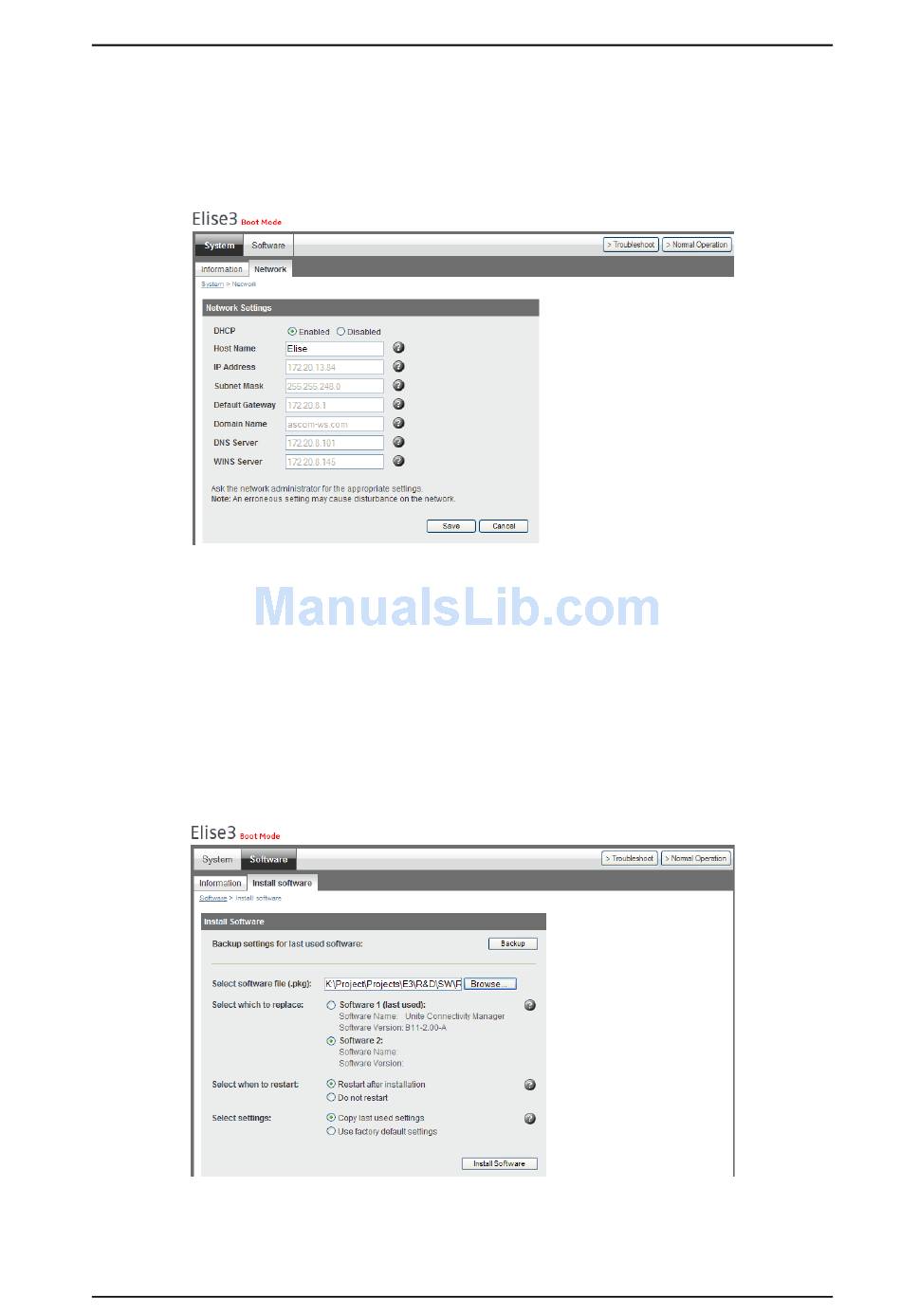

Figure 19. System network settings in Boot Mode.
5.1.3
Install Software in Boot Mode
Installing new software is normally done from the product's web interface, refer to the
product documentation. But if the web interface cannot be reached it is possible to put the
Elise3 in Boot Mode, access the Elise3 web interface and install new software from there.
NOTE: It is not recommended to use the Elise3's Management port when installing software.
Two software versions can be installed on the module. One software version is active and
the other inactive in normal operation.
Figure 20. Software installation in Boot Mode
1
Set the Elise3 in Boot Mode, see
2
Select Software > Install software.
22 November 2013 / Ver. G
5. Working in Boot Mode
5.1 Set Elise3 in Boot Mode
TD 92679EN
on page 27.
28
