Installation Guide
Elise3

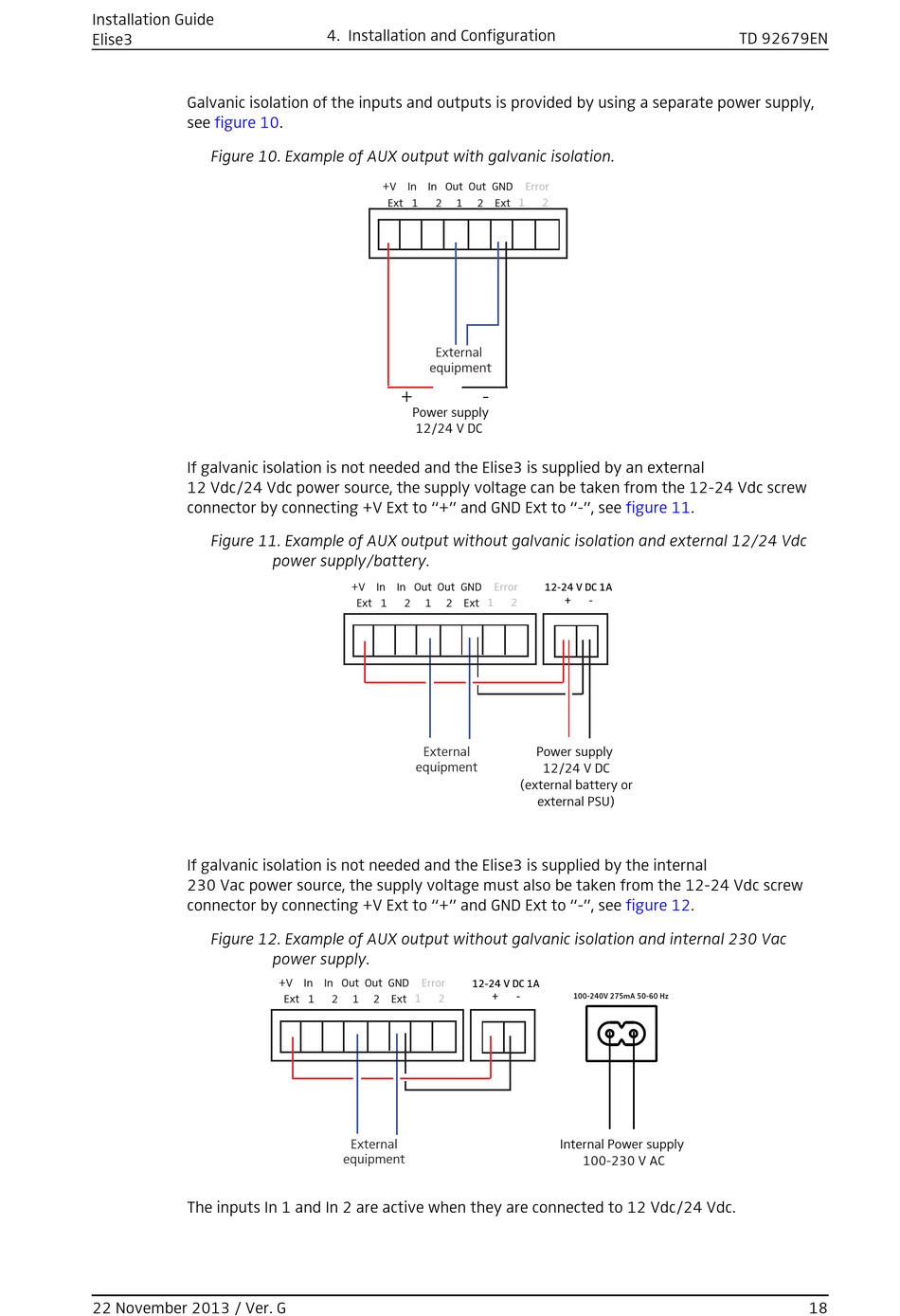

Galvanic isolation of the inputs and outputs is provided by using a separate power supply,
see figure 10.
Figure 10.
If galvanic isolation is not needed and the Elise3 is supplied by an external
12 Vdc/24 Vdc power source, the supply voltage can be taken from the 12-24 Vdc screw
connector by connecting +V Ext to "+" and GND Ext to "-", see
Figure 11. Example of AUX output without galvanic isolation and external 12/24 Vdc
If galvanic isolation is not needed and the Elise3 is supplied by the internal
230 Vac power source, the supply voltage must also be taken from the 12-24 Vdc screw
connector by connecting +V Ext to "+" and GND Ext to "-", see
Figure 12. Example of AUX output without galvanic isolation and internal 230 Vac
The inputs In 1 and In 2 are active when they are connected to 12 Vdc/24 Vdc.
22 November 2013 / Ver. G
4. Installation and Configuration
Example of AUX output with galvanic isolation.
+V In In Out Out GND
Ext 1 2
External
equipment
+
Power supply
12/24 V DC
power supply/battery.
+V In In Out Out GND
Ext 1 2 1
External
equipment
power supply.
+V In In Out Out GND Error
1 2
Ext 1 2 1 2 Ext
External
equipment
Error
1 2 Ext 1 2
-
Error
12-24 V DC 1A
+ -
2 Ext 1 2
Power supply
12/24 V DC
(external battery or
external PSU)
12-24 V DC 1A
+ -
100-240V 275mA 50-60 Hz
Internal Power supply
100-230 V AC
TD 92679EN
figure 11.
figure 12.
